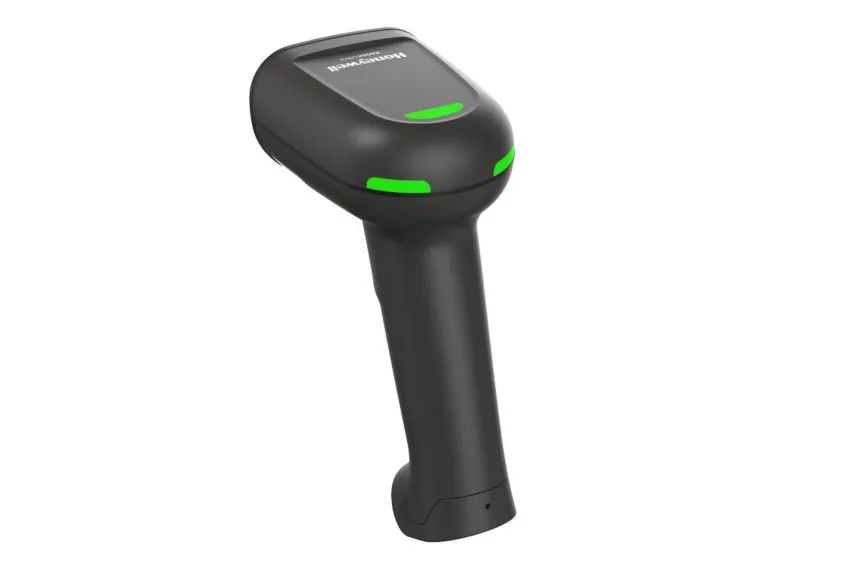

Honeywell Xenon Ultra 1960g Corded Scanner
Superior scanning performance, even on damaged and poor-quality barcodes, with optional dual-camera extended range (XR) for both up-close and bottom-of-basket scanning.
- Reads
- 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR
- Sealing
- IP52
- Drop rating
- Multiple drops at 1.8 m (6 ft) to concrete across the operating temperature range
- Warranty
- 5 year factory warranty
Overview
Techcon Solution supplies, sets up and supports the Honeywell Xenon Ultra 1960g in Hong Kong. Ask us for a quote, or about a demo unit.
Superior scanning performance, even on damaged and poor-quality barcodes, regardless of presentation, reduces wasted seconds from every retail transaction.
The Xenon Ultra 1960g incorporates Honeywell’s next generation of scanning capability — allowing retailers to stay productive and keep customer service as their top priority. With optional dual-camera extended range (XR) models, retailers can use the scanner for both up-close and extended, bottom-of-the-basket scanning.
Optional wireless Bluetooth configurations are available, with advanced accessory upgrades such as interchangeable power, contact-free charging, and magnetic mounting capability.
Specifications
From the Honeywell datasheet. Download it for certifications and accessories.
Mechanical
| Dimensions (LxWxH) | 108.2 mm x 70.4 mm x 160.2 mm (4.3" x 2.8" x 6.3") |
|---|---|
| Weight | 147.2 g (5.2 oz) |
Scan Performance
| Image Sensor | 1280 x 1080 pixel array |
|---|---|
| Motion Tolerance | SR/XR – 4 m/sec |
| Imager Field of View | Horizontal 42°; Vertical 36° |
| Print Contrast | As low as 15% |
| Roll, Pitch, Skew | ±360°, ±65°, ±65° |
| Decode Capabilities | Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies |
| Warranty | 5 year factory warranty |
Environmental
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
|---|---|
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 0% to 95% relative humidity, non-condensing |
| Drop | Multiple drops at 1.8 m (6 ft) to concrete across the operating temperature range |
| Environmental Sealing | IP52 |
| Light Levels | 0 to 100,000 lux |
Electrical
| Input Voltage | 4.4V DC – 5.5V DC |
|---|---|
| Operating Power | 2.5W (500 mA @ 5V DC) |
| Host System Interfaces | USB, Keyboard Wedge, RS-232 |
Other barcode scanners
-
Honeywell Xenon Performance (XP) 1950g
Purpose-built for retailers who know the cost of long checkout times — captures even the most difficult-to-read or damaged barcodes.
-
Honeywell Xenon Extreme Performance (XP) 1952g
Wireless scanner offering fast, accurate barcode scanning from up to 10 meters (33 feet) from the base — even on poor-quality or damaged barcodes.
-
Honeywell Voyager XP 1470g General Duty Scanner
High-performance handheld scanner for retail environments, excelling at both traditional barcodes and digital codes displayed on smartphones.
Want to try the Xenon Ultra 1960g Corded Scanner?
We can bring a demo unit to your site, check it against your systems and quote for the number you need.
