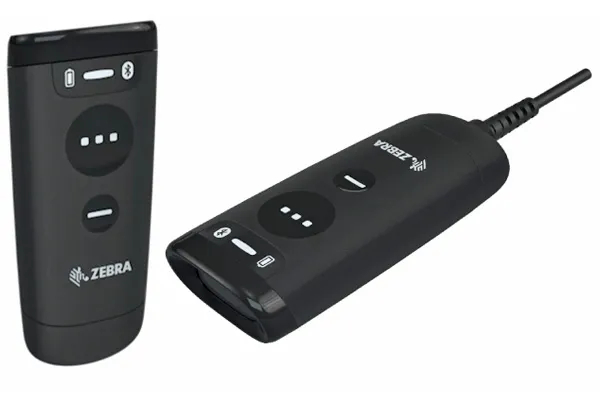

Zebra CS60 Series 1D/2D Companion Scanners
Ultra-versatile companion scanner with a first-of-its-kind convertible design — adapts between corded/cordless and handheld/hands-free operation.
- Sealing
- IP65
- Drop rating
- multiple drops at 1.8 m (6.0 ft) to concrete
- Motion tolerance
- Up to 20 in/51 cm per second
Overview
Techcon Solution supplies, sets up and supports the Zebra CS60 Series in Hong Kong. Ask us for a quote, or about a demo unit.
The ultra-versatile CS60/CS60-HC Series Companion Scanner adapts to any workflow and offers compact scanning at the checkout counter and self-service kiosk, and in any clinician workflow at the pharmacy counter, lab station and more. Its groundbreaking design easily converts between corded and cordless operation, handheld and hands-free, as your needs change for superior investment protection.
Specifications
From the Zebra datasheet. Download it for certifications and accessories.
Mechanical
| Scanner | 0.9 in H x 1.8 in W x 4.3 in D (2.3 cm x 4.6 cm x 10.9 cm) |
|---|---|
| Standard Cradle | 4.5 in H x 3.1 in W x 4.2 in D (11.3 cm x 7.8 cm x 10.7 cm) |
| Weight — Corded CS60 | 2.0 oz (56.0 g); Cordless CS60: 2.9 oz (83.0 g); Standard Cradle: 4.9 oz (138.0 g) |
Scan Performance
| Motion Tolerance (handheld) | Up to 20 in/51 cm per second for 13 mil UPC in optimized mode |
|---|---|
| Light Source — Aiming Pattern | circular 525nm true green LED; Illumination: warm white LED |
| Imager Field of View | 45° H x 34° V nominal |
| Image Sensor | 1280 x 960 pixels |
| Minimum Print Contrast | 20% minimum reflective distance |
| Skew Tolerance | ±60°; Pitch Tolerance: ±60°; Roll Tolerance: 0°–360° |
| Minimum Element Resolution | Code 39 – 5.0 mil |
Environmental
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
|---|---|
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Specification | Designed to withstand multiple drops at 1.8 m (6.0 ft) to concrete |
| Tumble Specification | Designed to withstand 250 tumbles in a 0.5 m (1.5 ft) tumbler (1 tumble = 0.5 cycle) |
| Sealing | Scanner IP65 |
| Electrostatic Discharge (ESD) | Scanner and cradle — ESD per EN61000-4-2, ±15 kV Air, ±8 kV Direct, ±8 kV Indirect |
| Ambient Light Immunity | 0 to 10,037 foot-candles / 0 to 108,000 Lux |
Electrical
| Battery Capacity/Type | 745 mAh Lithium Polymer battery |
|---|---|
| Scans Per Battery Charge | 13,000 scans |
| Operating Time Per Full Charge | 18 hours |
Other barcode scanners
-

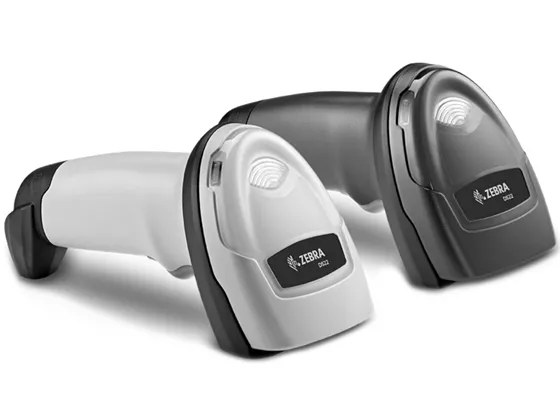

Zebra DS2200 Series 1D/2D Scanners
Affordable 1D/2D imager available corded (DS2208) or cordless (DS2278) — affordability without compromising performance or features.
-

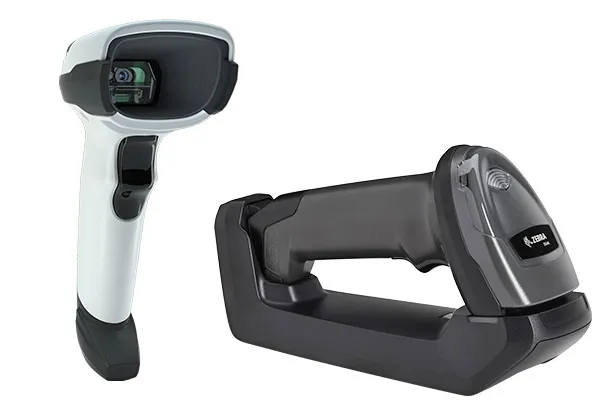

Zebra DS4600 Series 1D/2D Scanners
The versatility and scanning performance needed to keep checkout lanes, manufacturing lines and hospitals running smoothly, corded or cordless.
-

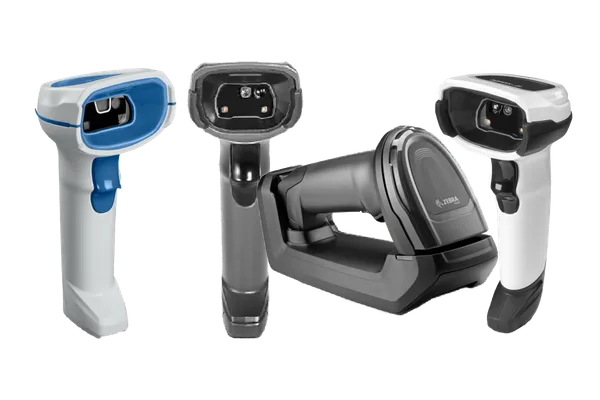

Zebra DS8100 Series 1D/2D Scanners
Elevate the customer experience with frictionless transactions at every touchpoint — from cashier-manned and self-checkout lanes to curbside and in-store pickup.
Want to try the CS60 Series 1D/2D Companion Scanners?
We can bring a demo unit to your site, check it against your systems and quote for the number you need.
