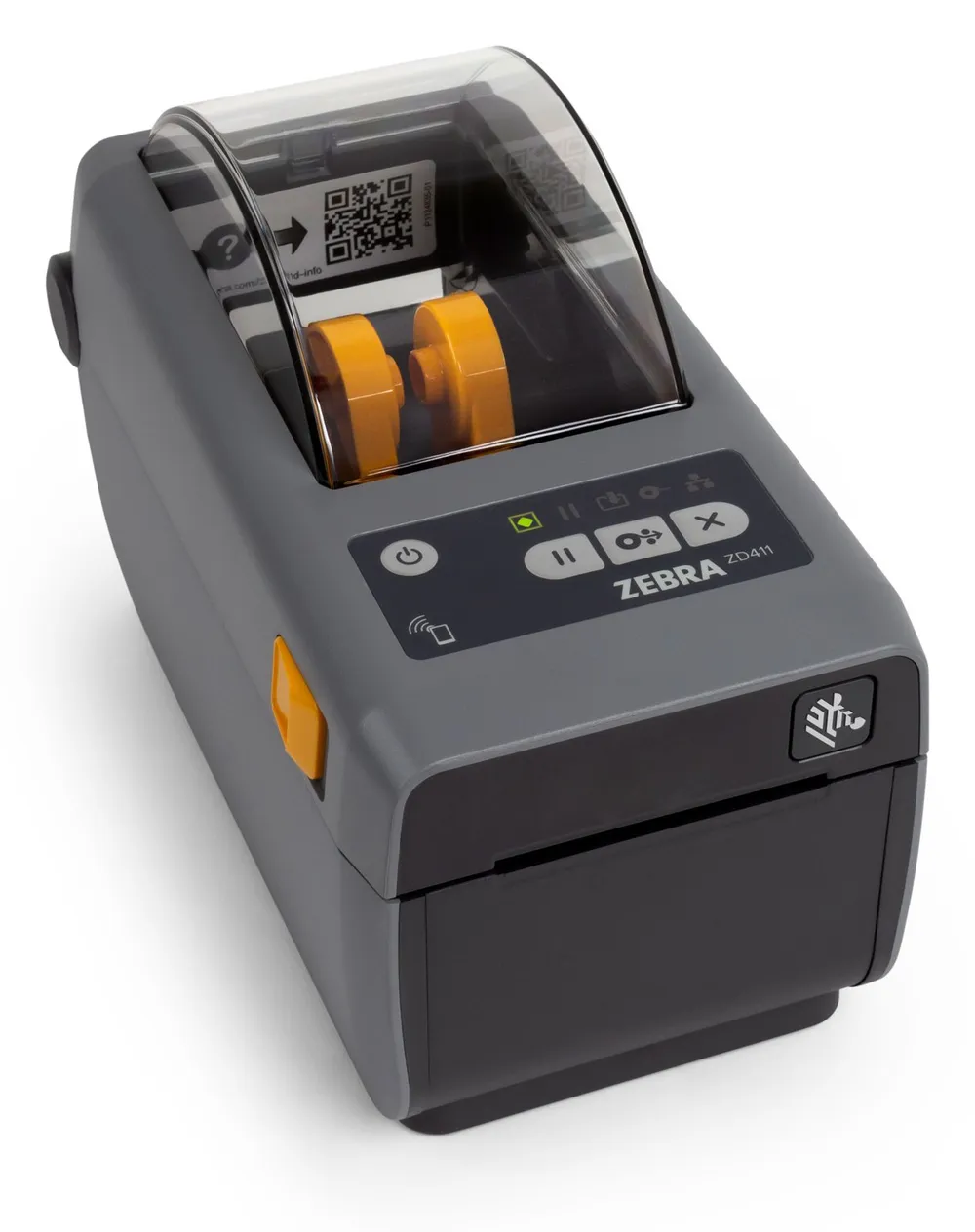

Zebra ZD411 Desktop Printer

Compact 2-inch desktop label printer in direct thermal and thermal transfer models, with USB, USB Host and optional Ethernet, Wi-Fi and Bluetooth.

Type
Desktop
Print method
Thermal Transfer or Direct Thermal
Resolution
203 dpi / 300 dpi
Max print width
2.2 in./56 mm
Max print speed
6 in./152 mm per second
Connectivity
USB 2.0, USB Host, Ethernet 10/100 (option), Wi-Fi 5 or Wi-Fi 6 with Bluetooth (option) …
Ask about this model WhatsApp us
Download the datasheetPDF, 335 KB

Overview

Techcon Solution supplies, sets up and supports the Zebra ZD411 in Hong Kong. Ask us for a quote, or about a demo unit.

The ZD411 is the 2-inch model of Zebra’s ZD400 Series desktop printers. It prints shelf and price labels, pharmacy and food labels, receipts, tickets and wristbands where space is tight.

  • Two models: direct thermal, or thermal transfer with a 74 m ribbon.
  • Easy to run: 5 status icons and 3 buttons, OpenACCESS media loading and a printer setup app for Android and iOS.
  • Ready to grow: Ethernet, Wi-Fi and Bluetooth can be added in the field.

Specifications

From the Zebra datasheet. Download it for certifications and accessories.

Printer Specifications
Print Method Thermal Transfer or Direct Thermal
Resolution 203 dpi/8 dots per mm; 300 dpi/12 dots per mm (optional)
Maximum Print Width 2.2 in./56 mm for 203 dpi; 2.13 in./54 mm for 300 dpi
Maximum Print Speed 6 in./152 mm per second (203 dpi); 4 in./102 mm per second (300 dpi)
Operating System Link-OS
Memory 512 MB Flash; 256 MB SDRAM
Media Sensors Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor
Programming Languages ZPL II; EPL 2; XML; ZBI; PDF Direct

Media and Ribbon
Label Length Minimum: 0.25 in./6.35 mm; Maximum: 39.0 in./991 mm
Media Width 0.585 in./15 mm to 2.36 in./60 mm
Media Roll Size Maximum outer diameter: 5.00 in./127 mm
Media Thickness 0.0024 in./0.06 mm min; 0.0075 in./0.1905 mm max. (tear-off mode only)
Media Types Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Standard Length 243 ft./74 m
Ribbon Width 1.3 in./33 mm–2.24 in./58 mm

Communications
Connectivity USB 2.0; USB Host; Ethernet 10/100 (option); Wi-Fi 5 or Wi-Fi 6 with Bluetooth (option); Serial RS-232 (field installable)
Standard USB 2.0, USB Host; BLE for the Zebra printer setup mobile app only
Factory installed Ethernet 10/100, dual radio Wi-Fi 5 (802.11ac) and Bluetooth 4.1; dual radio Wi-Fi 6 (802.11ax) and Bluetooth 5.3 (MIMO)
Field installable Ethernet 10/100, dual radio Wi-Fi 5 (802.11ac) and Bluetooth 4.1; dual radio Wi-Fi 6 (802.11ax) and Bluetooth 5.3 (SISO); Serial RS-232 auto-sensing

Physical Characteristics
Dimensions (Direct Thermal) 8.6 in. L x 4.5 in. W x 6.0 in. H (220 mm L x 115 mm W x 151 mm H)
Dimensions (Thermal Transfer) 9.56 in. L x 5.46 in. W x 6.66 in. H (242.9 mm L x 138.7 mm W x 169.2 mm H)
Weight (Direct Thermal) 2.2 lb./1.0 kg
Weight (Thermal Transfer) 3.59 lb./1.629 kg

Operating Characteristics
Operating Temp. 40° to 105° F/4.4° to 41° C
Storage Temp. -40° to 140° F/-40° to 60° C
Operating Humidity 10% to 90% non-condensing
Electrical Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; optional 2750 mAh battery
Warranty Minimum period of 2 (two) years from the date of shipment; varies by region
