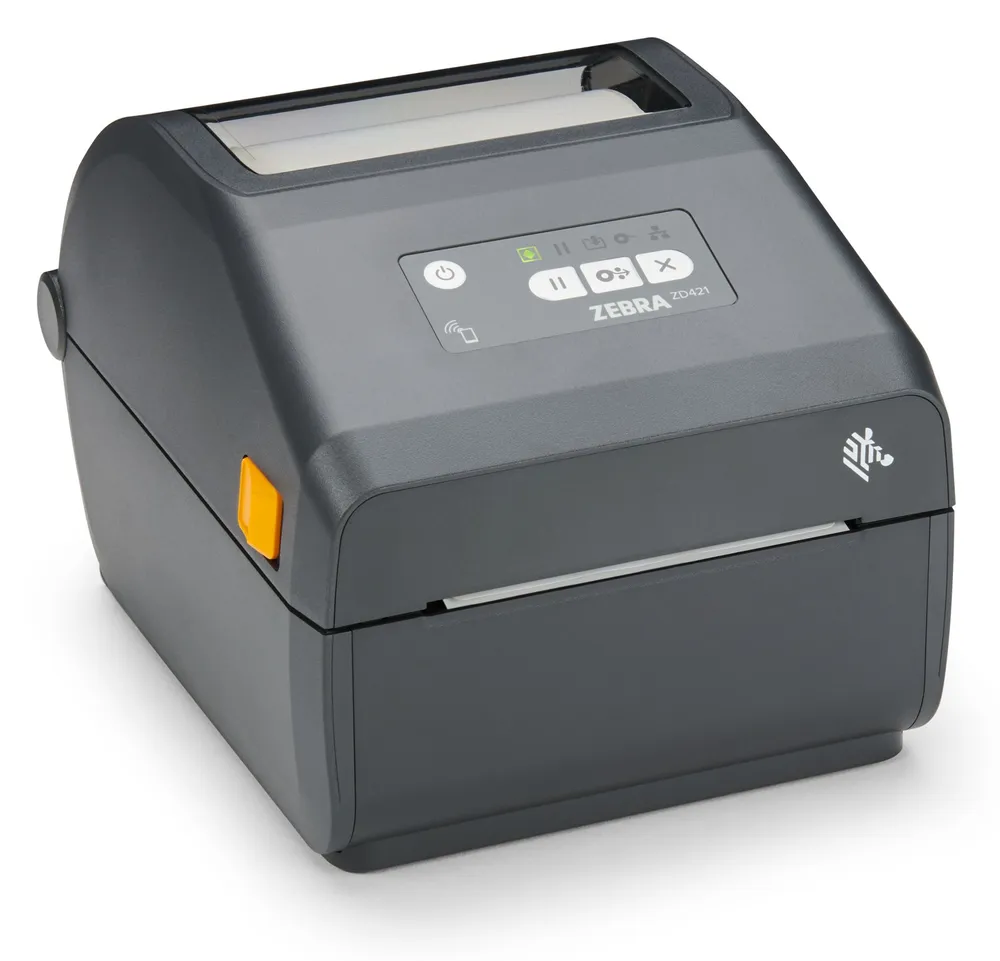

Zebra ZD421 Desktop Printer
4-inch desktop label printer in direct thermal, thermal transfer roll and ribbon cartridge models, with optional Ethernet, Wi-Fi and Bluetooth.
- Type
- Desktop
- Print method
- Thermal Transfer or Direct Thermal
- Resolution
- 203 dpi / 300 dpi
- Max print width
- 4.09 in./104 mm
- Max print speed
- 6 in./152 mm per second
- Connectivity
- USB 2.0, USB Host, Ethernet 10/100 (option), Wi-Fi 5 or Wi-Fi 6 with Bluetooth (option) …
Overview
Techcon Solution supplies, sets up and supports the Zebra ZD421 in Hong Kong. Ask us for a quote, or about a demo unit.
The ZD421 is the 4-inch model of Zebra’s ZD400 Series desktop printers. It handles shipping and product labels, shelf and price labels, receipts, tickets and healthcare labels.
- Three models: direct thermal, thermal transfer with a 300 m ribbon roll, or thermal transfer with a ribbon cartridge that loads in seconds.
- Easy to run: 5 status icons and 3 buttons, OpenACCESS media loading and a printer setup app for Android and iOS.
- Ready to grow: Ethernet, Wi-Fi, Bluetooth and a battery can be added.
Specifications
From the Zebra datasheet. Download it for certifications and accessories.
Printer Specifications
| Print Method | Thermal Transfer or Direct Thermal |
|---|---|
| Resolution | 203 dpi/8 dots per mm; 300 dpi/12 dots per mm (optional) |
| Maximum Print Width | 4.09 in./104 mm for 203 dpi; 4.16 in./106 mm for 300 dpi; Thermal Transfer Cartridge: 4.09 in./104 mm for 203 and 300 dpi |
| Maximum Print Speed | 6 in./152 mm per second (203 dpi); 4 in./102 mm per second (300 dpi) |
| Operating System | Link-OS |
| Memory | 512 MB Flash; 256 MB SDRAM |
| Media Sensors | Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor |
| Programming Languages | ZPL II; EPL 2; XML; ZBI; PDF Direct |
Media and Ribbon
| Label Length | Minimum: 0.25 in./6.35 mm; Maximum: 39.0 in./991 mm |
|---|---|
| Media Width (Direct Thermal) | 0.585 in./15 mm to 4.25 in./108 mm |
| Media Width (Thermal Transfer Roll) | 0.585 in./15 mm to 4.41 in./112 mm |
| Media Width (Thermal Transfer Cartridge) | 0.585 in./15 mm to 4.65 in./118 mm |
| Media Roll Size | Maximum outer diameter: 5.00 in./127 mm |
| Media Thickness | 0.003 in. (0.08 mm) min.; 0.0075 in. (0.19 mm) max. |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Standard Length | Roll: 984 ft. /300 m; 243 ft. /74 m; Cartridge: 243 ft. /74 m |
| Ribbon Width | Roll: 1.33 in./33.8 mm–4.3 in./109.2 mm; Cartridge: 4.3 in./109.2 mm |
Communications
| Connectivity | USB 2.0; USB Host; Ethernet 10/100 (option); Wi-Fi 5 or Wi-Fi 6 with Bluetooth (option); Serial RS-232 (field installable) |
|---|---|
| Standard | USB 2.0, USB Host; BLE for the Zebra printer setup mobile app only |
| Factory installed | Ethernet 10/100, dual radio Wi-Fi 5 (802.11ac) and Bluetooth 4.1; dual radio Wi-Fi 6 (802.11ax) and Bluetooth 5.3 (MIMO) |
| Field installable | Ethernet 10/100, dual radio Wi-Fi 5 (802.11ac) and Bluetooth 4.1; dual radio Wi-Fi 6 (802.11ax) and Bluetooth 5.3 (SISO); Serial RS-232 auto-sensing |
Physical Characteristics
| Dimensions (Direct Thermal) | 8.69 in. L x 6.98 in. W x 5.93 in. H (220.8 mm L x 177.5 mm W x 150.7 mm H) |
|---|---|
| Dimensions (Thermal Transfer Roll) | 10.5 in. L x 8.0 in. W x 7.44 in. H (267 mm L x 202 mm W x 189 mm H) |
| Dimensions (Thermal Transfer Cartridge) | 10.0 in. L x 8.0 in. W x 7.0 in. H (254 mm L x 202 mm W x 177 mm H) |
| Weight (Direct Thermal) | 2.98 lbs./1.35 kg |
| Weight (Thermal Transfer Roll) | 4.52 lbs./2.05 kg |
| Weight (Thermal Transfer Cartridge) | 5.0 lbs./2.3 kg |
Operating Characteristics
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
|---|---|
| Storage Temp. | -40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; optional 2750 mAh battery |
| Warranty | Minimum period of 2 (two) years from the date of shipment; varies by region |
