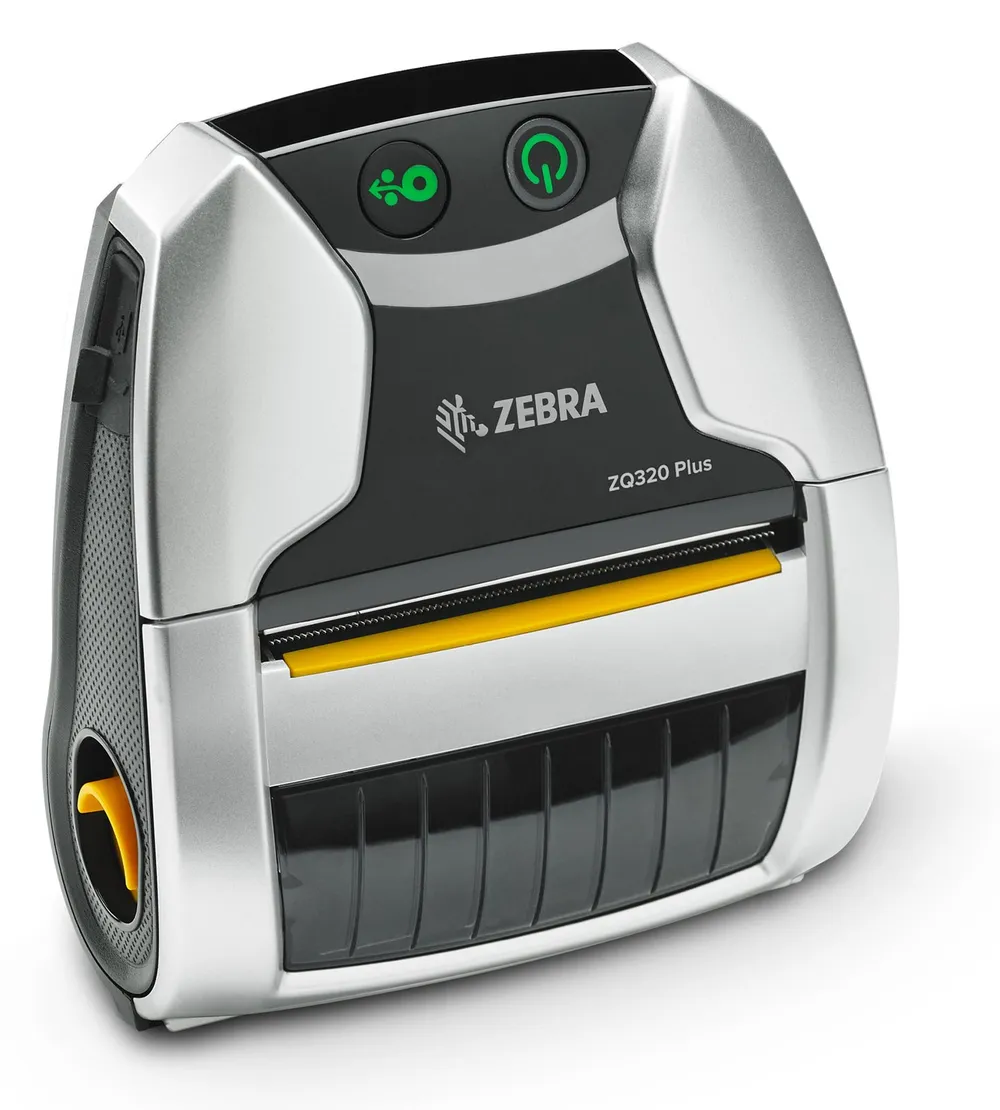

Zebra ZQ300 Plus Series Mobile Printers

Lightweight 2- and 3-inch direct thermal mobile printers for receipts and labels, with IP54 sealing, Bluetooth, optional Wi-Fi and NFC tap-to-pair.

Type
Mobile
Print method
Direct Thermal
Resolution
203 dpi
Max print width
ZQ310 Plus: 48 mm/1.89 in.; ZQ320 Plus: 72 mm/2.83 in.
Max print speed
Up to 4 ips (100 mm/s)
Connectivity
Bluetooth 4.1 (Classic and BLE), ZebraNet 802.11ac (optional), USB Type C, NFC
Ask about this model WhatsApp us
Download the datasheetPDF, 598 KB

Overview

Techcon Solution supplies, sets up and supports the Zebra ZQ300 Plus Series in Hong Kong. Ask us for a quote, or about a demo unit.

The ZQ300 Plus Series (ZQ310 Plus and ZQ320 Plus) lets store and field staff print receipts and labels wherever they are: point-of-sale anywhere in the store, price and shelf labels, invoices, tickets and proof of delivery.

  • ZQ310 Plus: 2-inch model, 48 mm/1.89 in. print width.
  • ZQ320 Plus: 3-inch model, 72 mm/2.83 in. print width.
  • Durable: IP54 sealing, a 1.5 m/5 ft. drop specification and 500 free falls in the tumble test.

Specifications

From the Zebra datasheet. Download it for certifications and accessories.

Printer Specifications
Print Method Direct Thermal
Resolution 203 dpi/8 dots mm
Maximum Print Width ZQ310 Plus: 48 mm/1.89 in.; ZQ320 Plus: 72 mm/2.83 in.
Maximum Print Speed Up to 4 ips (100 mm/s)
Operating System Link-OS® printer operating system
Memory 128MB RAM, 256MB Flash (48 MB User Available)
Battery Li-Ion 2280 mAh, 7.2V, PowerPrecision+
Media Sensors Black mark; Gap (optional)
Programming Languages CPCL, ZPL
Print Direction Horizontal and vertical

Media Characteristics
Media Width ZQ310 Plus: 58 mm +0.75 mm/2.28 in. +0.02 in.; ZQ320 Plus: 80 mm +0.75 mm/3.15 in. +0.02 in.
Maximum Roll Outside Diameter 40 mm/1.57 in.
Media Thickness 0.05334 mm/0.0021 in. to 0.16 mm/0.0063 in.
Media Types Direct thermal: receipt paper, linerless labels, labels
Media Holder Drop-in fixed media width (clamshell)

Communication and Interface Capabilities
Connectivity Bluetooth 4.1 (Classic and BLE); ZebraNet 802.11ac (optional); USB Type C; NFC
Bluetooth Bluetooth 4.1 (Classic and BLE) radio (Standard); "Made for iPod/iPhone/iPad" certified
WLAN ZebraNet® 802.11ac radio (Optional); WPA and WPA2; 802.11d, 802.11i, 802.11r
Cabled Communications USB: Client, Type C™ connector
NFC Passive NFC tag
Host OS Supported Android, Apple iOS and Windows

Physical Characteristics
Dimensions ZQ310 Plus: 130 mm L x 93.5 mm W x 49.5 mm H (5.12 in. L x 3.68 in. W x 1.95 in. H); ZQ320 Plus: 130 mm L x 117.7 mm W x 49.5 mm H (5.12 in. L x 4.63 in. W x 1.95 in. H)
Weight with battery ZQ310 Plus: 0.37 kg/0.81 lbs; ZQ320 Plus: 0.43 kg/0.95 lbs

Operating Characteristics
IP Rating IP54
Drop Specification 1.5 m/5 ft. tested over operating temp. range
Tumble Specification 500 free falls from 1 m/3.3 ft.
Operating Temp. -15° to +50°C/5° to +122° F
Storage Temp. -20° to 60°C/-4° to +140° F
Operating Humidity 10% to 90% non-condensing
Warranty 1 (one) year from the date of shipment
