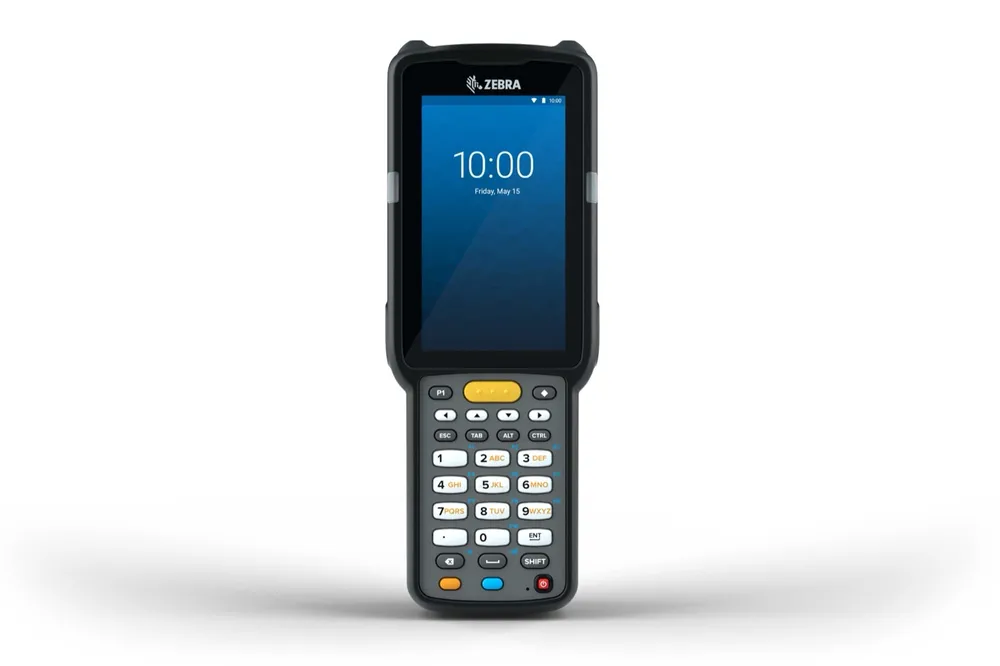

Zebra MC3300x Mobile Computer
Rugged Android mobile computer with a touch display and a physical keyboard (29, 38 or 47 keys), in straight shooter, 45°, turret and gun forms.
- Form factor
- With keyboard
- Operating system
- Upgradeable to Android 14
- Display
- 4 in. WVGA (800 x 480)
- Scan engine
- SE965, SE4720, SE4770, SE4850
- Sealing
- IP64
- Drop rating
- 6 ft./1.8 m
Overview
Techcon Solution supplies, sets up and supports the Zebra MC3300x in Hong Kong. Ask us for a quote for your quantity, or about a demo unit.
The MC3300x is the latest member of Zebra’s MC3000 family of keypad/touch mobile computers: a 4 in. touch display plus a physical keypad, Android, an extended range scanning option for barcodes on top warehouse racks, and a 7000 mAh battery. It is used in warehousing and distribution (picking and putaway, returns, yard management), manufacturing (inventory, supply-line replenishment, parts tracking) and retail back rooms (store receiving, price verification, inventory).
It comes in four form factors, each with its own scan options:
- Straight Shooter (0° Scan) — SE965 1D, SE4720/SE4770 2D or SE4850 ERI; 15.7 oz./445 g.
- 45° Scan — SE4770 2D; 15.9 oz./450 g.
- Turret/Rotating Head — SE965 1D Laser; 16.2 oz./460 g.
- Gun/Pistol — SE965 1D, SE4720/SE4770 2D or SE4850 ERI with a pistol grip; 18.4 oz./522 g.
Specifications
From the Zebra datasheet. Download it for certifications and accessories.
Physical Characteristics
| Dimensions | Straight Shooter (45° Scan and 0° Scan) — 7.96 in. L x 2.94 in. W x 1.35 in. D (202.2 mm L x 74.7 mm W x 34.5 mm D); Turret/Rotating Head — 8.79 in. L x 2.94 in. W x 1.35 in. D (223.4 mm L x 74.7 mm W x 34.5 mm D); Gun/Pistol — 7.96 in. L x 2.94 in. W x 6.45 in. D (202.6 mm L x 74.7 mm W x 163.9 mm D) |
|---|---|
| Weight | Straight Shooter (0° Scan) 15.7 oz./445 g; Turret/Rotating Head 16.2 oz./460 g; Gun/Pistol 18.4 oz./522 g; 45° Scan 15.9 oz./450 g |
| Display | 4 in. WVGA (800 x 480), LED backlight, color display |
| Touch Panel | Corning® Gorilla® Glass touch panel with air gap; supports dual input mode with finger, gloved finger and stylus (conductive stylus sold separately) |
| Keyboard | Numeric (29 key), Function Numeric (38 key), Alpha Numeric (47 key) |
| Battery | All models ship with rechargeable Li-Ion, 3.6V, 7000mAh PowerPrecision+ battery; full charge under five (5) hours; hot swap support with temporary WLAN/Bluetooth session persistence |
| Expansion Slot | User accessible MicroSD with 32GB SDHC and up to 512GB SDXC |
Performance Characteristics
| CPU | Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz |
|---|---|
| Operating System | Upgradeable to Android 14 |
| Memory | Worldwide — 4 GB RAM/32 GB Flash Memory; China only — 4 GB RAM/16 GB Flash Memory |
User Environment
| Operating Temp. | -4° F to 122° F/-20° C to 50° C |
|---|---|
| Storage Temp. | -40°F to 158°F/-40°C to 70°C |
| Humidity | 5% to 95% RH (Non-condensing) |
| Drop Specification | Multiple 6 ft./1.8 m drops to concrete across the operating temperature range per MIL-STD-810G |
| Tumble Specification | 3,000 3.3 ft. /1.0 m tumbles; meets and exceeds IEC tumble specification |
| Environmental Sealing | IP64 per applicable IEC sealing specifications |
Data Capture
| Scan Engine | Brick/Straight Shooter (0° Scan) and Gun/Pistol — SE965 1D, SE4720/SE4770 2D, SE4850 ERI; Turret/Rotating Head — SE965 1D Laser; 45° Scan — SE4770 2D |
|---|---|
| Camera | 13MP color camera with LED flash (optional on Straight Shooter and Turret configurations only) |
| NFC | ISO14443 Type A and B; FeliCa and ISO 15693 cards; P2P mode and Card Emulation via Host (HCE) support |
Wireless
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc; Wi-Fi™ certified; IPv4, IPv6, 2x2 MU-MIMO |
|---|---|
| WPAN | Class 2, Bluetooth v5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support |
