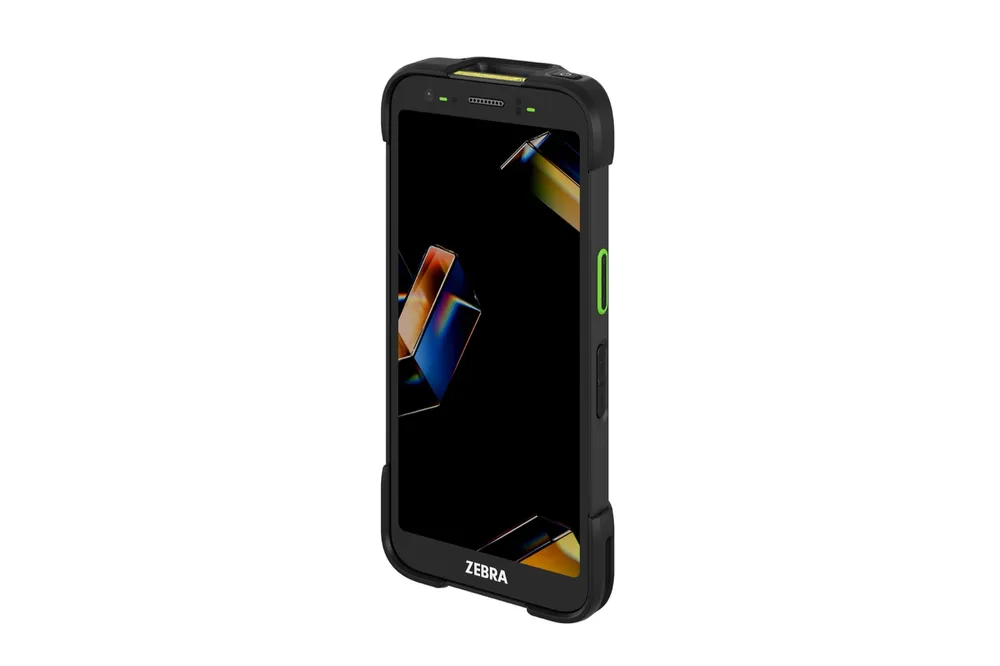

Zebra TC701 Mobile Computer
Ultra-rugged 6 in. AMOLED touch mobile computer with Dragonwing Q-6690, Wi-Fi 7, 5G, integrated UHF RFID, IP68 and 12 ft. (3.66 m) drops.
- Form factor
- Handheld
- Operating system
- Android
- Display
- 6.0 inch color Full High Definition+
- Scan engine
- SR500 1D/2D Scan Engine
- Sealing
- IP68 / IP65
- Drop rating
- 8 ft. (2.44 m)
Overview
Techcon Solution supplies, sets up and supports the Zebra TC701 in Hong Kong. Ask us for a quote for your quantity, or about a demo unit.
The TC701 is Zebra’s ultra-rugged all-touch mobile computer for the AI-powered frontline. It pairs a Qualcomm Dragonwing Q-6690 processor with up to 12 GB RAM and 256 GB Flash, a 6.0 in. AMOLED display up to 1500 NITS peak, Wi-Fi 7, Bluetooth 6.0 and 5G.
Short-range UHF RFID is built into every model, reading over 200 tags a second up to 6.5 ft. (2 m) away, with no separate sled. Scan options run from the SR500 and SR560 to the AC670 advanced range color engine.
It is rated for 12 ft. (3.66 m) drops to concrete at room temperature and 3,500 tumbles. Typical uses:
- T&L, parcel, delivery and post — proof of delivery, package tracking, last mile delivery, package dimensioning.
- Field service — mobile POS, parts inventory, invoicing and customer sign-off.
- Retail — price and inventory checks, order fulfillment (BOPIS/BOPAC), backroom inventory.
- Warehouse and manufacturing — picking, put-away, shipping and receiving, reverse logistics.
GPS and the pressure sensor are on WWAN SKUs only.
Specifications
From the Zebra datasheet. Download it for certifications and accessories.
Physical Characteristics
| Dimensions | L x H x D: 6.5 x 3.07 x 0.61 inches (165.0 x 77.9 x 15.5 mm) |
|---|---|
| Weight | 10.02 oz. (284 g) with 5000 mAh battery; 11.08 oz. (314 g) with 7240 mAh battery |
| Display | 6.0 inch color Full High Definition+; 2160x1080; AMOLED; 600 NITS typical, 1000 NITS High Brightness Mode (HBM), 1500 NITS peak; adaptive refresh rate; optically bonded to touch panel; Gorilla Glass Victus |
| Imager Windows | Corning® Gorilla® Glass |
| Touch Panel | Multi-mode capacitive touch with bare or gloved fingertip input or passive stylus (sold separately); water droplet rejection; fingerprint resistant anti-smudge coating |
| Power | Rechargeable Li-Ion, PowerPrecision+ for real-time battery metrics; Standard capacity: 5000 mAh (19.45 Watt hours); Extended capacity: 7240 mAh (28.16 Watt hours); Wireless charge battery: 5000 mAh (19.45 Watt hours); fast charging; Hot Swap capable |
| Expansion Slot | User accessible MicroSD card supports up to 2 TB |
| SIM | One physical SIM and Dual eSIM |
| Network Connections | WLAN Wi-Fi 7, WPAN (Bluetooth 6.0), USB 2.0 (Back I/O—Host Only), USB 3.1 superspeed (Bottom Type C)—Super Speed (Host and Client); WWAN 5G |
| Notifications | Audible tone; multi-color LEDs; vibration |
| Keypad | On-screen keypad |
| Voice and Audio | Stereo speakers; two microphones; audio headset support via USB-C port or Bluetooth wireless headset, BLE Audio 5.3 compatible; VoNR; VoLTE; Cellular Circuit Switch voice; HD voice; VoIP including Fullband (FB) and SWB Audio and PTT support |
| Buttons | Programmable buttons: dual dedicated scan buttons, dedicated push-to-talk button, volume up/down buttons |
| Interface Ports | USB Type C (USB 3.1); bottom and back IO (USB 2.0) |
Performance Characteristics
| CPU | Qualcomm® Dragonwing™ Q-6690 processor; up to 2.9 GHz (SKU specific) |
|---|---|
| Operating System | Android; for supported Android versions, visit: www.zebra.com/android-versions |
| Memory | 8 GB LPDDR5 RAM/128 GB UFS 3.1 Flash; 12 GB LPDDR5 RAM/256 GB UFS 3.1 Flash |
| Security | Android Strongbox with Secure Element IC; FIPS 140-3 Validated (ISO 19790) and Common Criteria certified (ISO 15408); Supports Secure Boot and Verified Boot |
User Environment
| Operating Temp. | -4°F to +122°F (-20°C to +50°C) |
|---|---|
| Storage Temp. | -40°F to +158°F (-40°C to +70°C) |
| Humidity | 5% - 95% non-condensing |
| Environmental Sealing | IP68 and IP65 per IEC 60529 standard |
| Tumble Specification | 3,500 3.3 ft. (1.0 m) tumbles |
| Drop Specification | Exceeds MIL-STD-810H: 8 ft. (2.44 m) to concrete at -4°F to +122°F (-20°C to +50°C); 12 ft. (3.66 m) to concrete @ room temperature |
| Electrostatic Discharge (ESD) | +/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge |
| Light Sensor | automatically adjusts display brightness |
| Motion Sensor | 3-axis gyroscope, 3-axis accelerometer |
| Magnetometer | eCompass automatically detects direction and orientation |
| Pressure Sensor/Barometer | WWAN SKU only |
| Proximity Sensor | Automatically disables the display and touch input when the device is positioned close to the ear |
Data Capture
| Scan Engine | SR500 1D/2D Scan Engine; SR560 1D/2D Scan Engine; AC670 Advanced Range Color 1D/2D Scan Engine |
|---|---|
| Rear Camera | 50MP auto focus with 0.6 µm pixel: Phase Detection Auto-focus (PDAF); flash LED generates balanced white light; supports Torch mode + HDR; Optional 50 MP with 1 µm pixel, Quad Phase Detection auto-focus (QPD AF) |
| Front Camera | 8 MP; fixed focus |
| Ultra-wide Angle Rear Camera | 13 MP auto focus; Phase Detection Auto-focus (PDAF); 5cm-infinity |
| Time of Flight (iToF) | Available on select SKUs |
| NFC | NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards, Mifare Desfire EV1, EV2, EV3, NFC Forum tags 2,3,4,5; EMVCo RR2 Contactless Payment Support; Host Card Emulation, VAS (Value Added Services) and Wallet support, Apple ECP1.0 and ECP2.0, Apple VAS and Google Smart Tap certified, VAS Library/SDK |
| Integrated RFID | Short range integrated UHF RFID; up to 6.5 ft. (2 m); reads > 200 tags per second; EPC Class 1 Gen2; EPC Gen 2 V2; EU 865-868 MHz and US 902-928 MHz |
Wireless
| WWAN | Rel-17, Dual SIM/Dual Standby, Gigabit LTE-A, 5G NR Sub-6 (NSA, SA), LTE/ NR Carrier Aggregation (CA), LTE CA-up to 3DLCA, 2ULCA, NR CA: Up to 3DL, 2UL; Bands: 5G FR1: n1/2/3/5/7/8/12/13/14/20/25/26/28/29/30/38/40/41/48/53/66/70/71/75/76/77/78/79; 4G: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/48/53/66/68/70/71/106; 3G: B1/2/4/5/6/8/19; 2G (ROW SKU only): 850/900/1800/1900; 4x4 DL MIMO: 5G FR1: n1/2/3/7/25/30/38/40/41/48/66/70/77/78/79; 4G LTE: 1/2/3/4/7/25/30/38/40/41/42/43/48/66/70; Private Cellular: B48/53/106/68 |
|---|---|
| GPS (WWAN SKU only) | GPS, GLONASS, a-GLONASS, Galileo, Beidou, QZSS, Triple-Band GNSS—concurrent L1/G1/E1/B1; (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, Beidou)+ l2(GPS+ QZSS L2C), a-GPS; supports XTRA |
| WLAN | IEEE 802.11 be/ax/ac/n/a/g/b/mc/az/d/h/i/r/k/u/v/w; Tri-band (2.4 GHz, 5 GHz, 6 GHz), 2x2 MU-MIMO; Wi-Fi CERTIFIED 7™; MLO (Simultaneous Transmit and Receive MLMR) in Tri-band and Dual-band modes: 2.4+5+6, 5+5+6, 5+6, 5+5, 2.4+5, 2.4+6; Dual Band Simultaneous; High Band Simultaneous; IPv4, IPv6; Wi-Fi Aware |
| Data Rates | 2.4 GHz: 802.11b/g/n/ax/be—20 MHz—up to 344 Mbps; 5 GHz: 802.11a/n/ac/ax/be—20 MHz, 40 MHz, 80 MHz, 160 MHz—up to 2882 Mbps; 6 GHz: 802.11ax/be—20 MHz, 40 MHz, 80 MHz, 160 MHz, 320 MHz—up to 5764 Mbps |
| Fast Roam | 802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC |
| WPAN | Configurable Class 1 and 2; Bluetooth V6.0 with 2X2 Tx; Chipset-enabled secondary BLE beaconing support |
