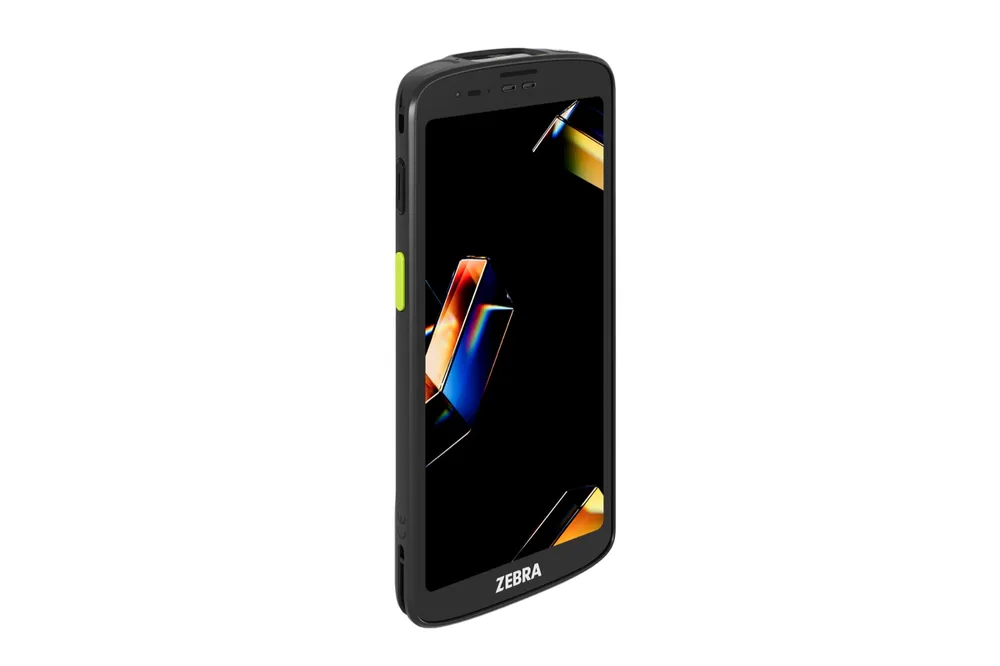

Zebra TC201 Mobile Computer
Cost-effective rugged 6 in. touch mobile computer with Dragonwing Q-6690, Wi-Fi 7, 5G, IP68 sealing and optional UHF RFID; reuses most TC22/TC27 accessories.
- Form factor
- Handheld
- Operating system
- Android
- Display
- 6.0 inch color Full High Definition+ (2160 x 1080)
- Scan engine
- AC670 Advanced Range Color 1D/2D Scan Engine
- Sealing
- IP68 / IP65
- Drop rating
- 5 ft. (1.53 m)
Overview
Techcon Solution supplies, sets up and supports the Zebra TC201 in Hong Kong. Ask us for a quote for your quantity, or about a demo unit.
The TC201 is the next generation of Zebra’s cost-effective TC2x Series, following the TC22/TC27. It runs a Qualcomm Dragonwing Q-6690 processor with 6 or 8 GB RAM, a 6.0 in. Full HD+ display, Wi-Fi 7, Bluetooth 6.0 and 5G.
Existing TC22/TC27 accessories, including batteries and charging cradles, can be reused. It is sealed to IP68 and rated for sub-zero use down to -4°F (-20°C).
Data capture options:
- AC670 advanced range — barcodes up to 100 ft. (30 m) away plus high-resolution color images.
- SR500 standard range — yellow LED aimer and red illumination.
- SR560 60° angled — available in APAC and LATAM.
- Camera-based scanning — a non-scanner model uses the integrated camera instead.
- Optional UHF RFID — up to 3.94 ft. (1.2 m) on select SKUs; the sheet dates RFID availability to Q1 2027 for APAC.
Typical uses are retail (price checks, click and collect, mobile POS, inventory counts), transportation and logistics (last mile delivery, proof of delivery) and warehouse and light manufacturing (picking, receiving, inventory control). GPS and the pressure sensor are on WWAN SKUs only.
Specifications
From the Zebra datasheet. Download it for certifications and accessories.
Physical Characteristics
| Dimensions | L x H x D: 6.5 x 3.0 x 0.49 inches (165 x 77.95 x 12.5 mm) |
|---|---|
| Weight | 8.64 oz. (245 g) with standard capacity battery; 9.55 oz. (270 g) with extended capacity battery |
| Display | 6.0 inch color Full High Definition+ (2160 x 1080); LED backlight; 450 NITS; optically bonded to touch panel; Corning® Gorilla® Glass |
| Imager Window | Corning® Gorilla® Glass |
| Touch Panel | Multi-mode capacitive touch with bare or light gloved fingertip input; water droplet rejection; fingerprint resistant anti-smudge coating |
| Power | User removable, rechargeable Li-Ion, PowerPrecision for real-time battery metrics; Standard Capacity: 3800 mAh/14.63Wh; Extended Capacity: 5200 mAh/20.02Wh; Hot Swap battery mode (select SKUs only) |
| Expansion Slot | User accessible MicroSD card; supports up to 2 TB |
| SIM | One physical SIM and Dual eSIM |
| Network Connections | WLAN Wi-Fi 7, WPAN (Bluetooth 6.0), WWAN 5G |
| Notifications | Audible tone; multi-color LEDs; vibration |
| Keypad | On-screen keypad |
| Voice and Audio | Stereo speakers; two microphones; audio headset support via USB-C port or Bluetooth wireless headset; BLE Audio 5.3 compatible; VoNR; VoLTE; Cellular Circuit Switch voice; HD voice; VoIP including full band (FB), SWB Audio, and PTT support |
| Buttons | Programmable buttons: dual scan buttons, push-to-talk button, volume up/down buttons |
| Interface Ports | USB Type C (USB 3.1); Back I/O (USB 2.0) |
Performance Characteristics
| CPU | Qualcomm® Dragonwing™ Q-6690 processor; up to 2.0 GHz |
|---|---|
| Operating System | Android; for supported Android versions, visit: www.zebra.com/android-versions |
| Memory | 6 GB LPDDR5 RAM/64 GB UFS 2.2 Flash; 8 GB LPDDR5 RAM/128 GB UFS 3.1 Flash |
| Security | Android Strongbox with Secure Element IC (select SKUs only); FIPS 140-3 Validated (ISO 19790) and Common Criteria certified (ISO 15408); supports Secure Boot and Verified Boot |
User Environment
| Operating Temp. | -4°F to +122°F (-20°C to +50°C) |
|---|---|
| Storage Temp. | -40°F to +158°F (-40°C to +70°C) |
| Humidity | 5%-95% non-condensing |
| Environmental Sealing | IP68 and IP65 per IEC 60529 standard |
| Tumble Specification | 750 1.6 ft. (0.5 m) tumbles; 750 3.3 ft. (1.0 m) tumbles with rugged boot; Angled Scanner: 500 1.6 ft. (0.5 m) tumbles; 500 3.3 ft. (1.0 m) tumbles with rugged boot |
| Drop Specification | Exceeds MIL-STD-810H: 5 ft. (1.53 m) to concrete at +14°F to +122°F (-10°C to +50°C); 6 ft. (1.83 m) to concrete @ room temperature; With rugged boot: 6 ft. (1.83 m) to concrete at 14°F to +122°F (-10°C to +50°C); 7 ft. (2.13 m) to concrete @ room temperature; Angled Scanner: 4 ft. (1.22 m) to concrete at +14°F to +122°F (-10°C to +50°C); With rugged boot: 5 ft. (1.53 m) to concrete at +14°F to +122°F (-10°C to +50°C) |
| Electrostatic Discharge (ESD) | ±15 kV air discharge, ±8 kV direct discharge; ±8 kV indirect discharge |
| Light Sensor | automatically adjusts display brightness |
| Motion Sensor | 3-axis gyroscope, 3-axis accelerometer |
| Magnetometer | eCompass automatically detects direction and orientation |
| Pressure Sensor/Barometer | WWAN SKU only |
| Proximity Sensor | Automatically disables the display and touch input when the device is positioned close to the ear |
Data Capture
| Scan Engine | AC670 Advanced Range Color 1D/2D Scan Engine; SR500 1D/2D Scan Engine; SR560 60° angled 1D/2D Scan Engine (available in APAC and LATAM); Camera-based scanning, leveraging Zebra's advanced decoder library for accurate and efficient data capture— complimentary with the device |
|---|---|
| Rear Camera | 16 MP auto-focus camera with user controllable LED flash |
| Front Camera | 5 MP; fixed focus |
| NFC | NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards; Mifare Desfire EV1, EV2, EV3, EMVCo RR2 compliant; NFC Forum tags 2,3,4,5; Host Card Emulation; Contactless Payment Support; Google Wallet support; VAS (Value Added Services); Apple ECP1.0 and ECP2.0; Apple VAS and Google Smart Tap certified; FeliCa M-Class Certified; VAS Library/SDK (Apple, Google and Samsung Wallet) |
| Integrated RFID | Short range integrated UHF RFID; up to 3.94 ft. (1.2 m); reads > 200 tags persecond; EPC Class 1 Gen2; EPC Gen 2 V2; EU 865-868 MHz and US 902-928 MHz; (Select SKUs only); availability for RFID SKUs: EMEA in Q4 2026; North America, APAC and LATAM in Q1 2027 |
Wireless
| WWAN | Rel-17, Dual SIM/Dual Standby, VoLTE, Gigabit LTE-A, 5G NR Sub-6 (NSA, SA), LTE/NR Carrier Aggregation (CA), LTE CA - Up to 3DLCA, 2ULCA, NR CA: Up to 3DL, 2UL; Bands: 5G FR1: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79; 4G: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/34/38/39/40/41/42/43/48/66/70/71/106; 3G: B1/2/4/5/6/8/19; 2G: (ROW SKU only) 850/900/1800/1900; 4x4 DL MIMO: 5G FR1: n1/2/3/7/25/30/38/40/41/48/66/70/77/78/79; 4G: 1/2/3/4/7/25/30/38/40/41/42/43/48/66/70; Private Cellular: B48/106; actual band support may vary by country or carrier |
|---|---|
| GPS (WWAN SKU only) | GPS, GLONASS, Galileo, Beidou, QZSS; Dual-Band GNSS—concurrent L1/G1/E1/B1; (GPS/QZSS, GLO, GAL, BeiDou) + L5/E5a/BDSB2a (GPS/QZSS, GAL, BeiDou); a-GPS; supports XTRA |
| WLAN | IEEE 802.11 be/az/mc/ax/ac/n/a/g/b/d/h/i/r/k/u/v/w; Tri-band (2.4 GHz, 5 GHz, 6 GHz), 2x2 MU-MIMO; Wi-Fi CERTIFIED 7™; MLO (Simultaneous Transmit and Receive MLMR) in Tri-band and Dual-band modes: 2.4+5+5, 2.4+5+6, 5+5+6, 5+6, 5+5, 2.4+5, 2.4+6; Dual Band Simultaneous, High Band Simultaneous; IPv4, IPv6; Wi-Fi Aware |
| Data Rates | 2.4 GHz: 802.11b/g/n/ax/be — 20 MHz – up to 344 Mbps; 5 GHz: 802.11a/n/ac/ax/be — 20 MHz, 40 MHz, 80 MHz, 160 MHz - up to 2882 Mbps; 6 GHz: 802.11ax/be — 20 MHz, 40 MHz, 80 MHz, 160 MHz, 320 MHz - up to 5764 Mbps |
| Fast Roam | 802.11r Fast BSS Transition; PMK Caching; Cisco CCKM; OKC |
| WPAN | Configurable Class 1 and 2; Bluetooth V6.0 with 2X2 Tx; Chipset-enabled secondary BLE beaconing support |
Other mobile computers
-

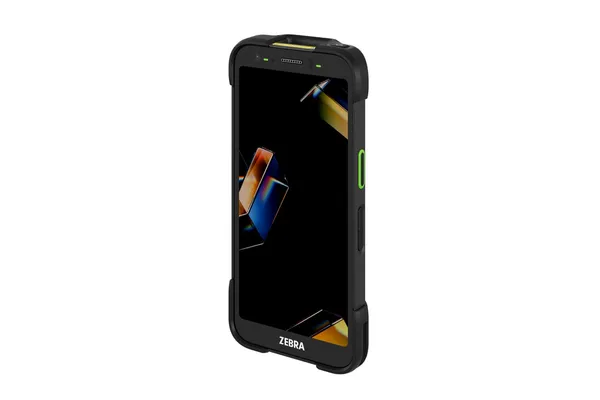

Zebra TC701 Mobile Computer
Ultra-rugged 6 in. AMOLED touch mobile computer with Dragonwing Q-6690, Wi-Fi 7, 5G, integrated UHF RFID, IP68 and 12 ft. (3.66 m) drops.
-

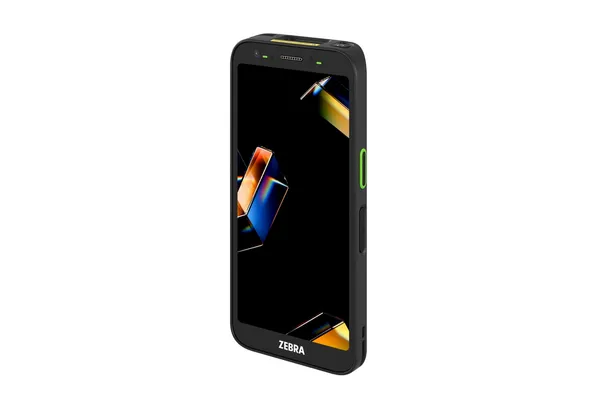

Zebra TC501 Mobile Computer
Rugged 6 in. AMOLED touch mobile computer with Dragonwing Q-6690, Wi-Fi 7, 5G, integrated UHF RFID, IP68 and up to 12 GB RAM/256 GB Flash.
-

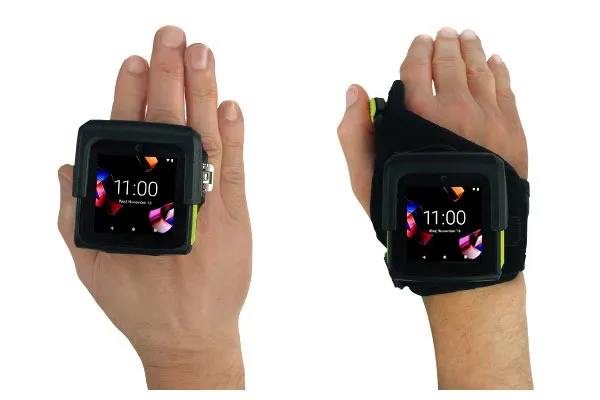

Zebra WS501 Wearable Mobile Computer
