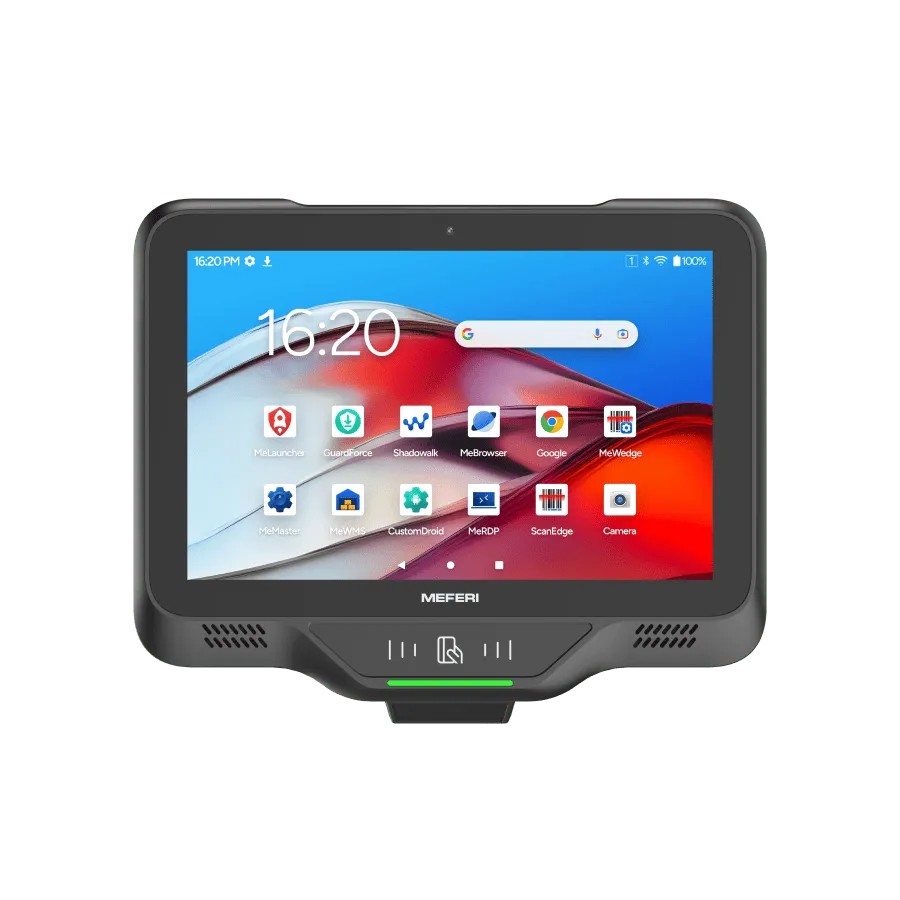

Meferi MC45 All-In-One Price Checker

Wall-mounted 10.1 in Android all-in-one price checker with a built-in Zebra SE4770 scanner, NFC, PoE and Wi-Fi for retail stores.

Form factor
Wall-mounted / price checker
Operating system
Android 14
Display
10.1 in IPS multi-touch
Scan engine
SE4770, SE4070
Sealing
IP54
Drop rating
2.62 ft / 0.8 m
Ask about this model WhatsApp us
Download the datasheetPDF, 467 KB

Overview

Techcon Solution supplies, installs and supports the Meferi MC45 in Hong Kong. Ask us for a quote for your quantity, or about a demo unit.

The MC45 is Meferi’s all-in-one price checker: a 10.1 in Android touch terminal that mounts on a store wall or fixture (VESA 75 x 75 mm) for customers and staff to check prices. It is built for retail environments, with a built-in barcode scanner, NFC for loyalty offers and staff sign-in, and text-to-speech voice playback.

Unlike a handheld, it is a fixed device powered by Power-over-Ethernet or a 12V supply, with Gigabit Ethernet and Wi-Fi. In Meferi’s CIAO self-scanning solution it also serves as the unit that unlocks CIAO devices on the charging wall.

Specifications

From the Meferi datasheet. Download it for certifications and accessories.

Physical Characteristics
Form Factor Wall-mounted price checker
Dimensions 261.96 x 217.49 x 38.7 mm (10.31 x 8.56 x 1.52 in)
Weight 915 g / 32.28 oz / 2.02 lbs
Display 10.1 in IPS multi-touch, 1280 x 800, 16:10
Display Brightness 350 NIT
Cover Glass Asahi Glass, 1.1 mm; Full lamination G+G
Keypad Virtual
Connectivity 1 x USB Type-C (transmits data only, cannot charge); USB-A 1 x USB 2.0, 1 x USB 3.0; Ethernet Gigabit (RJ45); 3.5 mm audio jack
Power Power-over-Ethernet 802.3af (up to 13W) / 802.3at (up to 25.5W); Input Voltage 12V/2A
Mounting VESA 75 x 75 mm; four M4 holes
Audio Two front-firing speakers (2 x 2w); two silicon microphones with active noise reduction (ANR)

Performance Characteristics
Processor RK3568, Quad-Core A55 2.0GHz; GPU Mali-G52
Operating System Android 14 (GMS); upgradeable to Android 18
Memory RAM 4GB / ROM 32GB
Expansion Micro SD cards up to 512GB

Data Capture
Scan Engine Standard Zebra SE4770; optional MEFERI SE4070 — 30° angle scanning
Camera Front 5MP, 1080p 60 fps with Fixed Focus
NFC 13.56MHz, ISO 14443 Type A and B; FeliCa and ISO 15693 cards
Proximity Sensor Automatic scanner activation (working range 35 cm)

Wireless
WLAN IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w (support Wave 2), 802.11r fast roaming; MIMO 2x2
WPAN BT 5.2+BR/EDR+BLE

User Environment
Operating Temp. -20°C to 60°C (-4°F to 140°F)
Storage Temp. -30°C to 70°C (-22°F to 158°F)
Humidity 10% to 85% non-condensing
Environmental Sealing IP54 class protection from water, dust, dirt
Drop Specification 2.62 ft / 0.8 m multiple drops to concrete over operating temp (certified test report)
Tumble Specification 300 hits, 1.6 ft / 0.5 m tumbles
Electrostatic Discharge (ESD) ±15 kV air discharge; ±8 kV direct discharge
