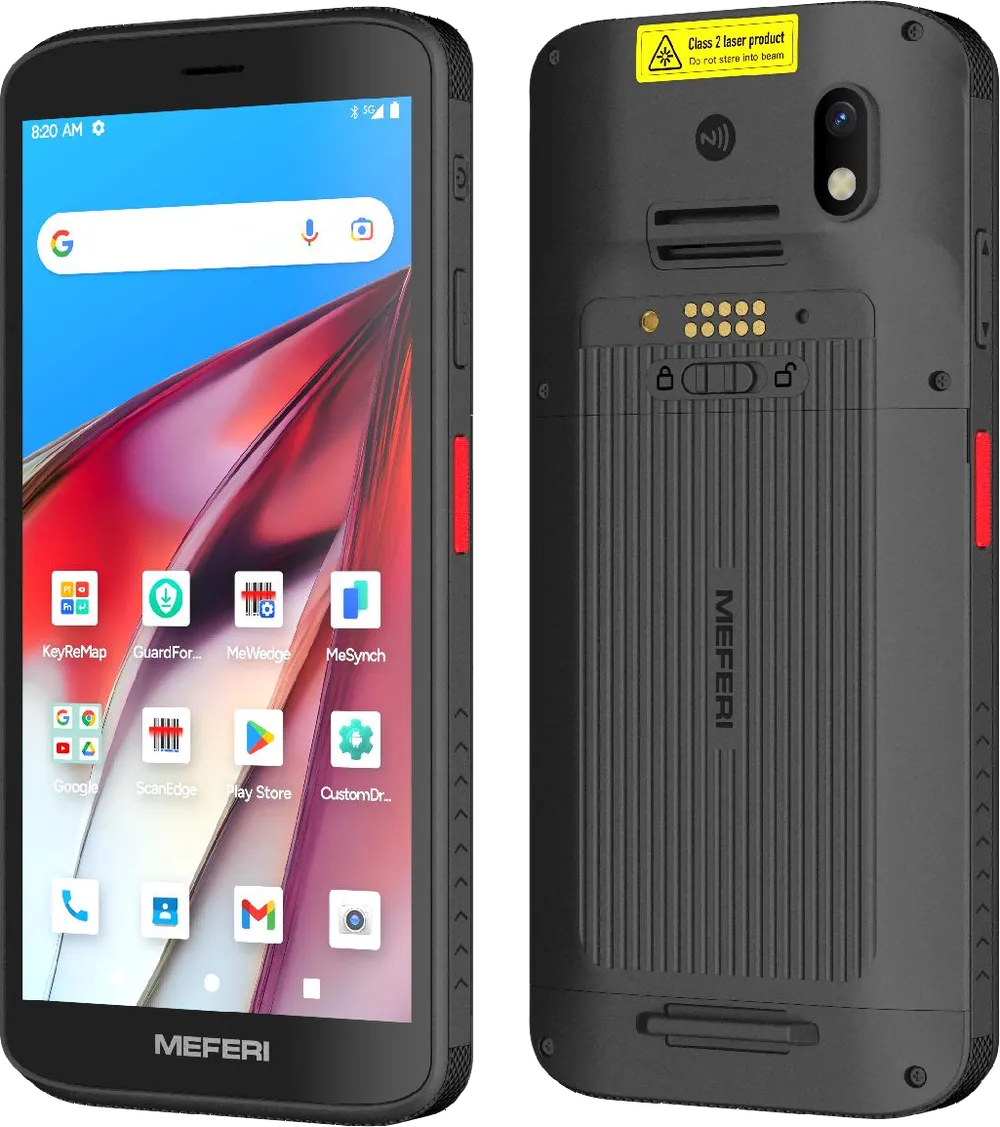

Meferi ME87 5G + Wi-Fi 7 Mobile Computer
5G Android handheld with Wi-Fi 7, a 6.0 in FHD+ display, Qualcomm QCM6690 with built-in UHF RFID processing, IP68 sealing and a hot-swap battery.
- Form factor
- Handheld
- Operating system
- Android 16
- Display
- 6.0” FHD+ (1080 × 2160) IPS LCD
- Scan engine
- SE4780, SE4730, SE4770
- Sealing
- IP68
- Drop rating
- 5 ft / 1.5 m
Overview
Techcon Solution supplies, sets up and supports the Meferi ME87 in Hong Kong. Ask us for a quote for your quantity, or about a demo unit.
The ME87 is Meferi’s newest all-touch mobile computer, built for logistics, retail, field service and manufacturing. It pairs a 6.0 in FHD+ display with the Qualcomm QCM6690 octa-core platform, Android 16 with GMS, 5G and Wi-Fi 7.
The QCM6690 can process UHF (RAIN) RFID tags on the CPU itself, so adding a compact UHF antenna accessory turns the ME87 into an RFID reader without a separate terminal. IP68 sealing, 1.5 m drop rating, in-display NFC and a 5000mAh hot-swap battery suit long shifts on the floor.
Specifications
From the Meferi datasheet. Download it for certifications and accessories.
Physical Characteristics
| Dimensions | 166.8 x 78.02 x 16.2 mm |
|---|---|
| Weight | With battery: 290g / 10.23 oz; Without battery: 205g / 7.23 oz |
| Display | 6.0” FHD+ (1080 × 2160) IPS LCD, 16.7M colors |
| Display Protection | Corning Gorilla Glass 5, 0.7 mm thickness |
| Display Brightness | 500 NIT |
| Touch Panel | Multi-mode capacitive touch, wet hand operation and glove operation |
| Keypad | Full screen, on-screen keypad and touch keys (Menu / Home / Back, switchable in UI) |
| Power | High-capacity removable battery 5000mAh with Gas-Gauge — maintaining ≥80% capacity after 500 full charging cycles; supports QC 3.0 fast charging, up to 2.5hours for full charge |
| Hot Swap Battery | Supports hot swap functionality with a built-in 89mAh Li-Polymer backup cell (optional) supporting RTC. Ensures up to 30 seconds of operation during battery replacement |
| Interface Ports | USB Type-C 3.1 (QC3.0 18 W, PD3.0, OTG); 1 × 10-pin rear POGO connector (compatible with 10-pin accessories, optional functions); 1 × 2-pin POGO for charging (supports 5 V/3 A) |
Performance Characteristics
| Processor | Qualcomm QCM6690 (FP1), Octa-core 2.0 GHz (1×2.0 GHz Prime + 3×2.0 GHz Gold + 4×2.0 GHz Silver) — 4 nm platform with integrated UHF (RAIN) RFID reader functionality |
|---|---|
| Operating System | Android 16 (GMS) |
| Memory | LPDDR5 + UFS 3.1, 8GB RAM + 128GB Storage (separate design) |
| Expansion | Micro SD (T-Flash) slot, supports up to 2TB |
| Security Feature | Supports Verified Boot and Secure Boot |
Data Capture
| Scan Engine | SE4780 (1D/2D laser engine), optional SE4730 or SE4770 |
|---|---|
| RFID Reader | CPU-Integrated UHF (RAIN) engine supporting ISO/IEC 18000-63 /EPC Class-1 G2 V2, UHF 860-960 MHz (region dependent). Reads up to 200 tags/sec. Max range 2m using shared WAN/5G antenna |
| Camera | Rear: 16 MP AF with white LED flash (Torch mode supported); Front: 8 MP FF — rear camera supports 1080p video recording |
| NFC | NXP PN7221 ISO/IEC 14443 A/B, ISO/IEC 15693, NFC Forum Tag Types 1-5; MIFARE Classic 1K/4K, MIFARE DESFire; FeliCa; Apple ECP 1.0/2.0 with VAS support; EMVCo 3.x contactless compliant |
Wireless
| WWAN | 5G (Sub-6GHz), 4G LTE (FDD/TDD), WCDMA — compliant with 3GPP Release 15 — WCDMA: B1/B2/B4/B5/B6/B8/B19; TDD-LTE: B38/B40/B41(200 MHz)/B42/B43/B48; FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B66/B71; 5G NR (Sub-6GHz): n1/n2/n3/n5/n7/n8/n12/n25/n28/n38/n41/n48/n66/n71/n77/n78/n79 |
|---|---|
| SIM | Option 1: nano SIM1+ SIM2; Option 2: nano SIM1 + Micro SD; Option 3: nano SIM1 + ESIM+ Micro SD |
| GPS | Dual-frequency GNSS: GPS (L1/L5), GLONASS, Galileo, and BeiDou |
| WLAN | Wi-Fi 7 (IEEE 802.11 a/b/g/n/ac/ax/be) with 2×2 MIMO and DBS (Dual-Band Simultaneous); 2.4GHz / 5GHz / 6GHz bands with 20/40/80/160 MHz bandwidth |
| WPAN | Bluetooth 6.0 with BLE; HFP, A2DP, AVRCP, OPP, SPP, and GATT |
| UWB | Integrated UWB connectivity for short-range location, proximity detection and device-to-device communication |
User Environment
| Operating Temp. | -20°C to 50°C (-4°F to 122°F) |
|---|---|
| Storage Temp. | -30°C to 60°C (-22°F to 140°F) |
| Humidity | Operating, Non-Condensing: 10% to 90% (max wet-bulb 38.7 °C); Non-Operating: 5% to 95% (max wet-bulb 38.7 °C) |
| Environmental Sealing | IP68 class protection from water, dust, dirt |
| Drop Specification | 5 ft / 1.5 m multiple drops to concrete over operating temp (certified test report) |
| Tumble Specification | 1000hits, 1.6 ft / 0.5m tumbles |
| Electrostatic Discharge (ESD) | ±15 kV air discharge; ±8 kV direct discharge |
