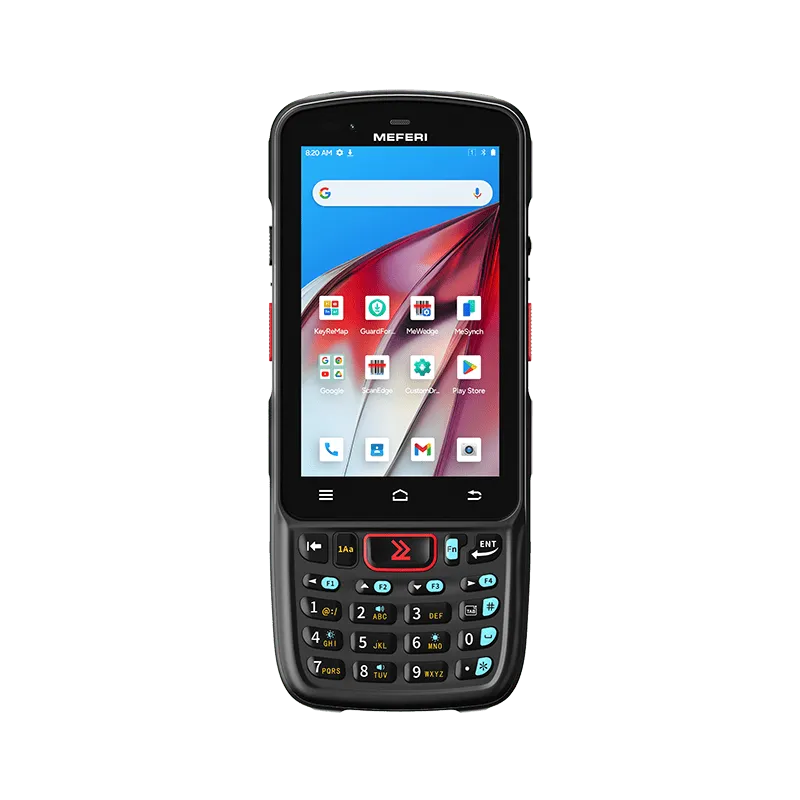

Meferi ME40K Mobile Computer
Android handheld with a physical keyboard (21-key alphanumeric keypad), 4.0 in touch display, IP67 sealing, hot-swap battery and 4G LTE.
- Form factor
- With keyboard
- Operating system
- Android 12
- Display
- 4.0 in WVGA 480 x 800
- Scan engine
- SE4770, SE5070
- Sealing
- IP67
- Drop rating
- 6 ft / 1.8 m
Overview
Techcon Solution supplies, sets up and supports the Meferi ME40K in Hong Kong. Ask us for a quote for your quantity, or about a demo unit.
The ME40K is Meferi’s enterprise mobile computer for data capture in logistics, warehousing, retail and similar settings. It combines a 4.0 in touch display with a full physical alphanumeric keypad, so staff can key in quantities and codes quickly as well as scan.
It runs Android 12 with GMS and Android Enterprise Recommended certification, takes Zebra, Meferi or Honeywell scan engines, and has a hot-swap battery mode so the battery can be changed without rebooting. IP67 sealing and 1.8 m drop rating suit day-long use on the floor.
Specifications
From the Meferi datasheet. Download it for certifications and accessories.
Physical Characteristics
| Dimensions | 164.6 x 69.8 x 17.8 mm (6.48 x 2.75 x 0.7 in) |
|---|---|
| Weight | With battery 288.5 g / 10.18 oz; without battery 190.3 g / 6.71 oz |
| Display | 4.0 in WVGA 480 x 800 |
| Display Protection | Corning Gorilla Glass III, 1.1mm thickness |
| Display Brightness | 450 NIT |
| Keyboard | Enterprise physical alphanumeric keypad (21 physical keys) including 1 Fn (function) button and 5 programmable buttons (F1, F2, F3, F4, one left-side button) |
| Battery | High capacity battery 5180 mAh with Hot Swap battery mode — QC 3.0 quick charge up to 4 hours till 100% (full charge) |
| Interface Ports | USB 2.0 with OTG + 4 Pogo pin (for Cradle) + 4 Pogo pin (for Pistol Grip) |
Performance Characteristics
| Processor | Qualcomm Snapdragon SD662, Octa-core 2.0 GHz (CPU model SM6115) |
|---|---|
| Operating System | Android 12 (GMS & AER); upgradeable to Android 13 |
| Memory | Standard — RAM 4GB / ROM 64GB; Optional — RAM 3GB / ROM 32GB, RAM 8GB / ROM 128GB |
| Expansion | Micro SD x1, max support up to 512GB |
Data Capture
| Scan Engine | Zebra SE4770, MEFERI SE5070, Honeywell HS7 |
|---|---|
| Camera | Front 5MP; Rear 13MP — rear camera supports PDAF and 1080p video shooting |
| NFC | ISO 14443 Type A and B; FeliCa and ISO 15693 cards |
Wireless
| WWAN | 4G LTE, WCDMA, GSM — GSM B2/B3/B5/B8; WCDMA B1/B2/B4/B5/B8; TDD-LTE B34/B38/B39/B40/B41(120M); FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B19/B20/B25/B26/B28AB/B66 |
|---|---|
| SIM | Standard nano SIM x1 + eSIM x1; option nano SIM x2 |
| GPS | GPS, A-GPS, GLONASS, Galileo, Beidou |
| WLAN | IEEE 802.11a/b/g/n/ac Wave1&2 (No 160MHz) /d/e/h/i/k/r/v/w/mc, with seamless roaming |
| WPAN | BT 5.0+BR/EDR+BLE |
User Environment
| Operating Temp. | -20°C to 60°C (-4°F to 140°F) |
|---|---|
| Storage Temp. | -30°C to 70°C (-22°F to 158°F) |
| Humidity | 5% to 95% non-condensing |
| Environmental Sealing | IP67 class protection from water, dust, dirt |
| Drop Specification | 6 ft / 1.8 m multiple drops to concrete over operating temp (certified test report) |
| Tumble Specification | 300 hits, 3.2 ft / 1.0 m tumbles |
| Electrostatic Discharge (ESD) | ±15 kV air discharge; ±8 kV direct discharge |
