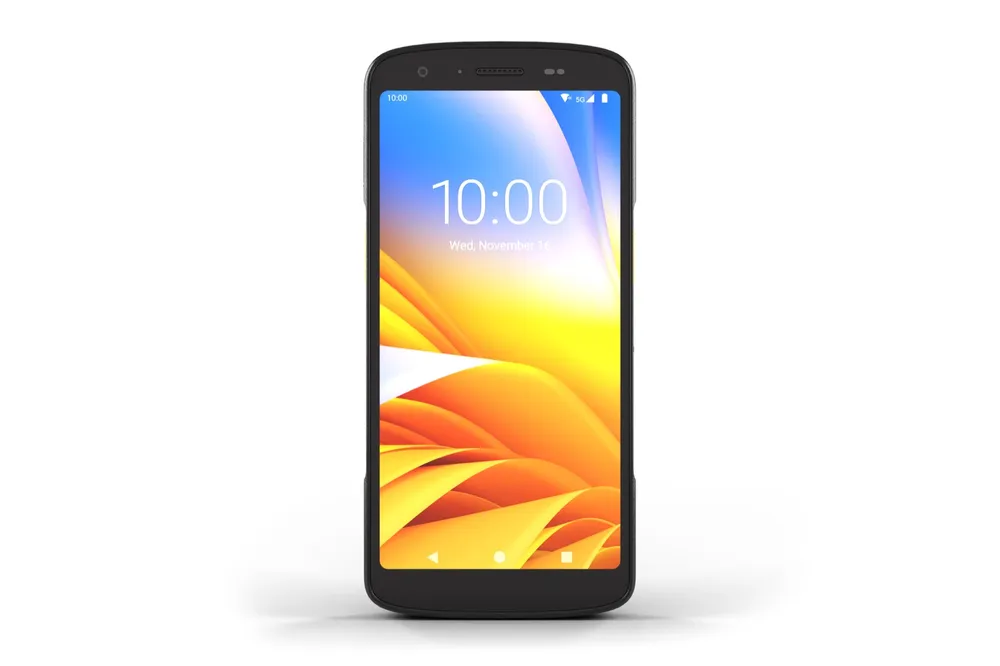

Zebra TC22/TC27 Mobile Computers
Smartphone-style handheld mobile computer with a 6 in. display, integrated scan engine and IP68 sealing — TC22 for Wi-Fi, TC27 adds 5G/4G cellular.
- Form factor
- Handheld
- Operating system
- Android
- Display
- 6.0 in. color Full High Definition+ (1080 x 2160)
- Scan engine
- SE55, SE4710
- Sealing
- IP68 / IP65
- Drop rating
- 5 ft./1.5 m
Overview
Techcon Solution supplies, sets up and supports the Zebra TC22 and TC27 in Hong Kong. Ask us for a quote for your quantity, or about a demo unit.
The TC22/TC27 is the third generation of Zebra’s TC2x Series: a compact, smartphone-style device with a 6 in. display, enterprise-class barcode scanning and support for tap-to-pay and other contactless transactions. It is built to outlast consumer phones, with IP68 sealing and drop and tumble ratings.
It suits small and mid-size businesses in retail (price check, mPOS, inventory), hospitality (event ticketing, POS sales), field operations (courier, direct store delivery, field services) and warehouse and distribution (sortation, load and unload). The series comes in two models:
- TC22 — Wi-Fi model (WLAN, WPAN).
- TC27 — adds WWAN: 5G/4G cellular data and voice, 1 Nano SIM and 1 eSIM, for workers outside the building.
Specifications
From the Zebra datasheet. Download it for certifications and accessories.
Physical Characteristics
| Dimensions | 6.5 in. L x 3.0 in. W x 0.49 in. D (165 mm L x 76.3 mm W x 12.5 mm D) |
|---|---|
| Weight | 8.32 oz/236 g (TC22 3800mAh battery); 9.24 oz/262 g with 5200mAh battery |
| Display | 6.0 in. color Full High Definition+ (1080 x 2160); LED backlight; 450 Nits; Corning® Gorilla® Glass |
| Touch Panel | Multi mode capacitive touch with bare or light gloved fingertip input |
| Keypad | On-screen keypad |
| Battery | User removable, rechargeable Li-Ion, PowerPrecision for real-time battery metrics; Standard Capacity 3800 mAh/14.63Wh; Extended Capacity 5200 mAh/20.02Wh; BLE battery 3800 mAh/14.63Wh |
| Expansion Slot | User accessible MicroSD card supports up to 2 TB |
| Network Connections | TC22 — WLAN, WPAN; TC27 — WWAN, WLAN, WPAN |
Performance Characteristics
| CPU | Qualcomm® 5430 hex-core, 2.1 GHz |
|---|---|
| Operating System | Android; for supported Android versions, visit www.zebra.com/android-versions |
| Memory | 6 GB RAM/64 GB UFS Flash; 8 GB RAM/128 GB UFS Flash |
User Environment
| Operating Temp. | 14°F to 122°F/-10°C to 50°C |
|---|---|
| Storage Temp. | -40°F to 158°F/-40°C to 70°C |
| Humidity | 5%-95% non-condensing |
| Drop Specification | Multiple 5 ft./1.5 m drops to concrete over operating temp (-10° C to 50° C/14° F to 122° F) with protective boot per MIL-STD-810H; Multiple 4.5 ft/1.3 m drops to tile over concrete over operating temp (-10° C to 50° C/14° F to 122° F) per MIL-STD 810H |
| Tumble Specification | 500 tumbles, 1.6 ft./0.5 m; 500 tumbles, 3.3 ft./1.0 m with optional protective boot |
| Environmental Sealing | IP68 and IP65, with battery per applicable IEC sealing specifications |
Data Capture
| Scan Engine | SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology; SE4710 1D/2D Scan Engine |
|---|---|
| Camera | Rear camera 16 MP; front camera 5 MP |
| NFC | NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards; Host Card Emulation, Contactless Payment Support; Apple VAS and Google Smart Tap certified |
Wireless
| WWAN | TC27 only — 5G NR Sub-6 (NSA, SA); Gigabit LTE-A; LTE/NR Carrier Aggregation; VoLTE; Dual SIM/Dual Standby; supports private networking (LTE/5G); regional 5G FR1/4G/3G band sets for North America, Rest of World and China/Japan |
|---|---|
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 MU-MIMO, Wi-Fi 6E (802.11ax), Wi-Fi certified; Wi-Fi 6 Certified, Dual Band Simultaneous; IPv4, IPv6 |
| WPAN | Class 2, Bluetooth v5.2 and Secondary BLE for beaconing within BLE battery |
| GPS | GPS, GLONASS, Galileo, Beidou, QZSS, Dual-Band GNSS; a-GPS; supports XTRA (TC27) |
Other mobile computers
-
Zebra TC701 Mobile Computer
Ultra-rugged 6 in. AMOLED touch mobile computer with Dragonwing Q-6690, Wi-Fi 7, 5G, integrated UHF RFID, IP68 and 12 ft. (3.66 m) drops.
-
Zebra TC501 Mobile Computer
Rugged 6 in. AMOLED touch mobile computer with Dragonwing Q-6690, Wi-Fi 7, 5G, integrated UHF RFID, IP68 and up to 12 GB RAM/256 GB Flash.
-
Zebra TC201 Mobile Computer
Cost-effective rugged 6 in. touch mobile computer with Dragonwing Q-6690, Wi-Fi 7, 5G, IP68 sealing and optional UHF RFID; reuses most TC22/TC27 accessories.
Related solutions and guides
- SOTI MDMMobiControl, XSight and SOTI licences with local support
- Which Rugged Mobile Computer Is Right for Your Warehouse or Store?A rugged mobile computer is an Android handheld with a built-in barcode scanner, made to survive drops, dust and long shifts. Choose by form factor (handheld, wearable or vehicle-mounted), scanning range, durability and connectivity, then plan how you will manage the fleet, for example with SOTI MobiControl.
Want to try the TC22/TC27 Mobile Computers?
We can bring a demo unit to your site, check it against your systems and quote for the number you need.
