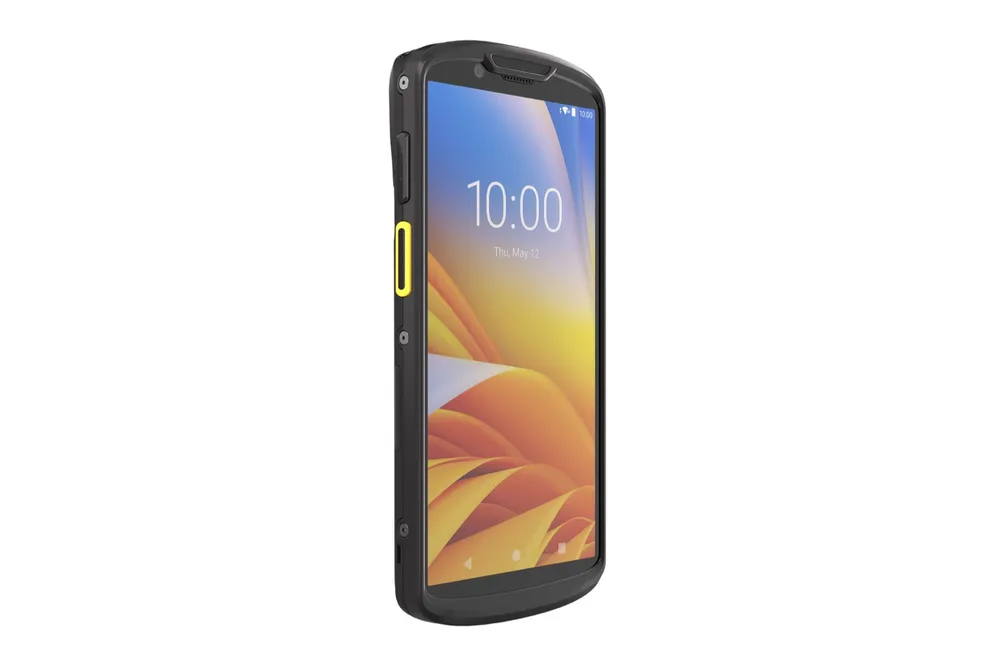

Zebra TC53/TC58 Mobile Computers
Rugged all-touch handheld mobile computer with a 6 in. display, octa-core processor and IP68 sealing — TC53 for Wi-Fi 6E, TC58 adds 5G cellular.
- Form factor
- Handheld
- Operating system
- Android
- Display
- 6.0 in. Full High Definition
- Scan engine
- SE55, SE4720
- Sealing
- IP68 / IP65
- Drop rating
- 6 ft./1.8 m
Overview
Techcon Solution supplies, sets up and supports the Zebra TC53 and TC58 in Hong Kong. Ask us for a quote for your quantity, or about a demo unit.
The TC53/TC58 is Zebra’s rugged 6-inch touch mobile computer for data collection, combining a Qualcomm 6490 octa-core processor, an advanced range scan engine option and Wi-Fi 6E in a thin, IP68-sealed body. It is used in retail (price checks, line busting and mobile POS, inventory counts, back of store), field service (asset management, parts inventory, invoicing) and transportation and logistics (proof of delivery, location services).
The series comes in two models:
- TC53 — Wi-Fi model (WLAN, WPAN/Bluetooth); 3.5 mm audio jack only on WLAN SKUs.
- TC58 — adds WWAN 5G for data and voice, with 1 nano SIM and 1 eSIM, for workers on the road.
Specifications
From the Zebra datasheet. Download it for certifications and accessories.
Physical Characteristics
| Dimensions | 6.48 in. L x 3.04 in. W x 0.66 in. H (164.8 mm L x 77.35 mm W x 16.75 mm H) |
|---|---|
| Weight | 10.3 oz./293 g with standard battery |
| Display | 6.0 in. Full High Definition; 1080x 2160; LED backlight; 600 NITS; optically bonded to touch panel |
| Touch Panel | Multi-mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately), Corning Gorilla Glass; water droplet rejection; fingerprint resistant anti-smudge coating |
| Keypad | On-screen keypad and enterprise keyboard |
| Battery | Rechargeable Li-Ion, PowerPrecision+ for real-time battery metrics; Standard capacity 4680 mAh (18.01 Watt hours); Extended capacity 7000 mAh (26.95 Watt hours); fast charging Warm Swap battery mode (standard SKUs); Hot Swap battery mode (premium SKUs) |
| Expansion Slot | User accessible MicroSD card supports up to 2 TB |
| Network Connections | TC53 — WLAN, WPAN (Bluetooth); TC58 only — WWAN 5G |
Performance Characteristics
| CPU | Qualcomm 6490 octa-core, 2.7 GHz |
|---|---|
| Operating System | Android; for supported Android versions, visit www.zebra.com/android-versions |
| Memory | 4GB RAM/64GB UFS Flash; 8GB RAM/64GB UFS Flash; 8GB RAM/128GB UFS Flash |
User Environment
| Operating Temp. | -4°F to 122°F/-20°C to 50°C |
|---|---|
| Storage Temp. | -40°F to 158°F/-40°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | Multiple 6 ft./1.8 m drops to concrete over operating temp (-20°C to 50°C/-4°F to 122°F) with protective boot per MIL STD 810H; Multiple 5 ft./1.5 m drops to tile over concrete (-10°C to 50°C/14°F to 122°F) per MIL STD 810H |
| Tumble Specification | 1000 1.6 ft./0.5 m tumbles at room temperature without protective boot; 1000 3.2 ft./1.0 m tumbles at room temperature with protective boot |
| Environmental Sealing | IP68 and IP65 with battery per applicable IEC sealing specifications |
Data Capture
| Scan Engine | SE55 1D/2D Advanced Range Scan Engine with IntelliFocus technology; SE4720 1D/2D Scan Engine |
|---|---|
| Camera | Front — 8 MP; Rear — 16 MP autofocus; flash LED; Optical Image Stabilization (OIS) and Time of Flight (ToF) Sensor on premium SKUs only |
| NFC | ISO 14443 Type A and B; FeliCa and ISO 15693 cards; Card Emulation via Host; Contactless payment support; Apple VAS certified, NFC Forum Certified, and Google Smart Tap Ready |
Wireless
| WWAN | TC58 only — 5G FR1, 4G, 3G and 2G band sets for North America, Rest of World and China/Japan; supports private networking (LTE/5G) |
|---|---|
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 MU-MIMO; Wi-Fi 6E; Wi-Fi 6E Certified; Dual Band Simultaneous; IPv4, IPv6 |
| WPAN | Class 2, Bluetooth v5.2; secondary Bluetooth Low Energy (BLE) for beaconing within BLE battery |
| GPS | GPS, GLONASS, Galileo, Beidou, QZSS Dual-Band GNSS; a-GPS; supports XTRA (TC58) |
