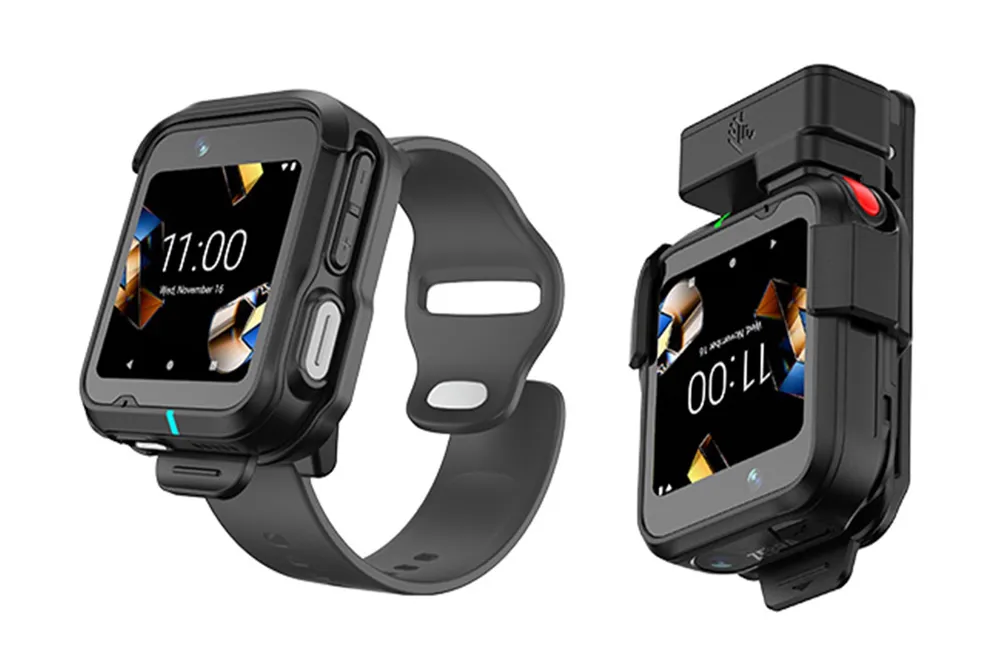

Zebra WS301 Wearable Mobile Computer
Compact Android wearable computer worn on a wrist or clipped on, with a 2 in. AMOLED touchscreen, 13 MP camera, push-to-talk, Duress button, Wi-Fi 6 and IP65.
- Form factor
- Wearable
- Operating system
- Android
- Display
- 2 inches AMOLED 460 x 460 color display
- Sealing
- IP65
- Drop rating
- 4 ft. (1.21 m)
Overview
Techcon Solution supplies, sets up and supports the Zebra WS301 in Hong Kong. Ask us for a quote for your quantity, or about a demo unit.
The WS301 is Zebra’s most compact Android enterprise mobile computer, built to connect frontline workers who have no device today. Workers can place and receive push-to-talk calls, look up items by barcode, photograph damaged returns and manage tasks, using a voice-first interface.
The device weighs 2.08 oz. (59 g) on its own. It clips onto a lapel, apron, shirt pocket or belt, or is worn on the wrist like a watch, and it runs a Qualcomm QC2290 with 4 GB RAM/64 GB Flash, Wi-Fi 6 and Bluetooth 5.3.
Key features:
- 13 MP top facing camera — captures barcodes, photos and videos.
- Duress button — a dedicated programmable red button that can, for example, start a video call to security.
- Removable battery — the sheet states 10 hours of battery power, with fast charging.
Typical uses are retail (hands-free customer assistance, push-to-talk, item lookup, task management), hospitality (guest service requests, cross-department PTT) and light manufacturing (hands-free workflows, item lookup, shift task management).
Specifications
From the Zebra datasheet. Download it for certifications and accessories.
Physical Characteristics
| Dimensions | Device: L x W x D: 2.20 x 1.89 x 0.59 inches (56 x 48 x 15 mm); Device in Clip Mount: L x W x D: 3.39 x 2.09 x 1.14 inches (86 x 53 x 29 mm); Device in Wrist Mount: L x W x D: 2.52 x 2.05 x 0.59 inches (64 x 52 x 15 mm) |
|---|---|
| Weight | Device: 2.08 oz. (59 g); Device in Clip Mount: 3.07 oz. (87 g); Device in Wrist Mount with standard strap: 3.10 oz. (88 g) |
| Display | 2 inches AMOLED 460 x 460 color display; optically bonded to touch panel |
| Camera Window | Corning® Gorilla® Glass |
| Touch Panel | Capacitive touch panel; fingertip and glove support; Corning® Gorilla® Glass |
| Power | 2.91 Wh; 750 mAh; PowerPrecision+ |
| Network Connections | USB 3.1 Superspeed (host and client), WLAN and Bluetooth |
| Notifications | Audible tone; charge and OS notification LED, haptic feedback |
| Voice and Audio | Speaker (90dBA); two internal mics with noise and echo cancellation; Bluetooth headset support; 3.5 mm PTT headset support (when in clip mount) |
| Buttons | Multifunction button (programmable), defaults to PTT button while in mount and scan button when not in mount; volume buttons; Duress button (programmable) |
| Interfaces | Docking contacts for charging; USB 3.1 Type C host/client and charging; Wrist: Compatible with off-the-shelf 26 mm wrist straps |
Performance Characteristics
| CPU | Qualcomm® QC2290 |
|---|---|
| Operating System | Android; for supported Android versions, visit: www.zebra.com/android-versions |
| Memory | 4 GB RAM/64 GB Flash |
User Environment
| Operating Temp. | +14°F to +122°F (-10°C to +50°C) |
|---|---|
| Storage Temp. | -40°F to +158°F (-40°C to +70°C) |
| Humidity | 5% to 95% non condensing |
| Drop Specification | 4 ft. (1.21 m) drop to concrete across operating temperature |
| Tumble Specification | 1,000 tumbles @ 1.6 ft. (0.5 m) meets and exceeds IEC tumble specifications |
| Environmental Sealing | IP65 |
| Vibration | 4 g's PK Sine, 5 hz to 2 khz, 1 hour duration per axis; 0.04 g 2/Hz Random (20 Hz to 2 kHz), 1 hour duration per axis |
| Electrostatic Discharge (ESD) | +/-15 kV air discharge, +/-8 kV direct/indirect discharge |
| Light Sensor | Automatically adjusts display backlight brightness |
| Motion Sensor | 6-axis accelerometer with MEMS Gyro |
Data Capture
| Camera | Top Facing: 13 MP Auto-Focus; Front Facing: 5 MP fixed focus, 120° FOV |
|---|---|
| NFC | Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards |
Wireless
| WLAN | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; Wi-Fi 6; 2x2 MU-MIMO; Wi-Fi™ certified; IPv4, IPv6 |
|---|---|
| Data Rates | 5G Hz: 802.11a/n/ac/ax—20 MHz, 40 MHz, 80 MHz-up to 1201 Mbps; 2.4 GHz: 802.11b/g/n/ax—20 MHz up to 286.8 Mbps |
| WPAN | Bluetooth 5.3; Classic Bluetooth Basic Rate (BR)/Enhanced Data Rate (EDR) and Bluetooth Low Energy (BLE) support; Class 1 |
Other mobile computers
-
Zebra TC701 Mobile Computer
Ultra-rugged 6 in. AMOLED touch mobile computer with Dragonwing Q-6690, Wi-Fi 7, 5G, integrated UHF RFID, IP68 and 12 ft. (3.66 m) drops.
-
Zebra TC501 Mobile Computer
Rugged 6 in. AMOLED touch mobile computer with Dragonwing Q-6690, Wi-Fi 7, 5G, integrated UHF RFID, IP68 and up to 12 GB RAM/256 GB Flash.
-

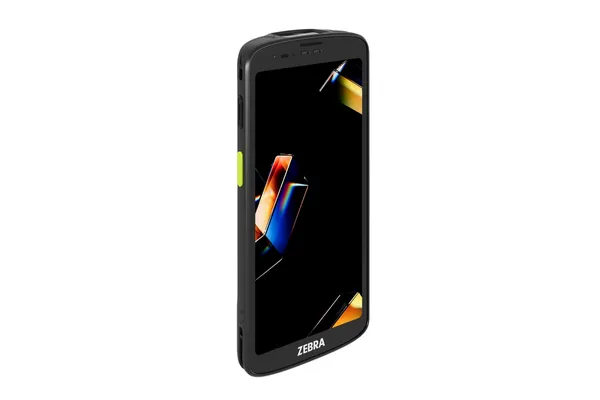

Zebra TC201 Mobile Computer
