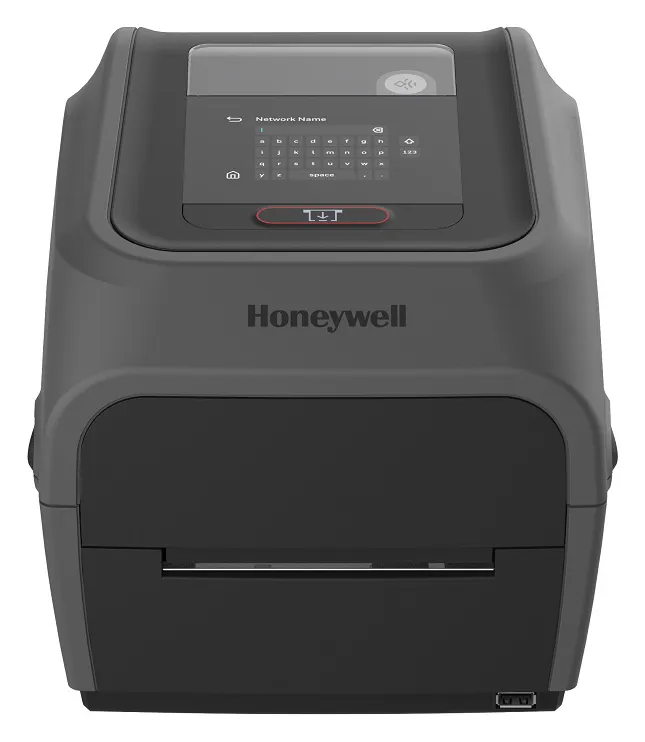

Honeywell PC45t Desktop Printer

4-inch thermal transfer desktop printer with a colour touch screen, Wi-Fi 6 and Bluetooth 5.2, and Ethernet and USB as standard.

Type
Desktop
Print method
Thermal Transfer
Resolution
203 dpi / 300 dpi
Max print width
108 mm (4.25 in)
Max print speed
2ips up to 8ips
Connectivity
Ethernet 10/100 Mbps, USB 2.0 Host, USB 2.0 Device, Wi-Fi 802.11 a/b/g/n/ac/ax …
Ask about this model WhatsApp us
Download the datasheetPDF, 563 KB

Overview

Techcon Solution supplies, sets up and supports the Honeywell PC45t in Hong Kong. Ask us for a quote, or about a demo unit.

The PC45t is the thermal transfer model of Honeywell’s PC45 desktop printers, which build on the E-class and PC43 printers. It suits businesses that want a durable, secure desktop label printer on the network or in the cloud.

  • Large touch screen: 88.9 mm (3.5 in) colour LCD with one Print/Feed button.
  • Connected: Ethernet and USB as standard; Wi-Fi 6 and Bluetooth 5.2.
  • Managed remotely: Honeywell Printer Edge, Operational Intelligence and SOTI Connect support.

The print method (thermal transfer) is from Honeywell’s PC45T product page; the other values are from the PC45 datasheet.

Specifications

From the Honeywell datasheet. Download it for certifications and accessories.

Print Specifications
Print Method Thermal Transfer
Print Resolution 203 dpi (8 dots/mm); 300 dpi (12 dots/mm)
Maximum Print Width 108 mm (4.25 in) at 203 dpi; 106 mm (4.12 in) at 300 dpi
Maximum Print Speed 2ips up to 8ips at 203 dpi; 2ips up to 6ips at 300 dpi

Media and Ribbon
Maximum Media Width 118mm (4.65 in)
Maximum Media Roll Capacity 127 mm (5 in) O.D
Media Core I.D 12.7 mm (0.5 in), 25.4 mm (1 in), 38.1 mm (1.5 in)
Minimum Media Length 6.35 mm (0.25 in)
Maximum Media Length 1727 mm (68 in) at 203 dpi; 900 mm (35 in) at 300 dpi
Media Thickness 0.05 mm (2 mil) to 0.16 mm (6.3 mil)
Media Types Wristband, tags, receipt paper, linered and linerless labels, labels with black mark or gap
Media Sensing Gap, notch, black mark, continuous

Interfaces
Connectivity Ethernet 10/100 Mbps; USB 2.0 Host; USB 2.0 Device; Wi-Fi 802.11 a/b/g/n/ac/ax; Bluetooth 5.2
Standard Ethernet 10/100 Mbps, USB 2.0 Host High Speed, USB 2.0 Device High Speed
Optional RS-232, up to 115.2 KB/s
WLAN IEEE 802.11 a/b/g/n/ac/ax; Wi-Fi certified; Security: OPEN, WEP, WPA/WPA2/WPA3 (Personal and Enterprise); FAST roaming (802.11r)
Bluetooth Bluetooth® 5.2 (Field or Factory installable)
Supports IPv4 and IPv6

Mechanical Characteristics
Dimensions (L x W x H) 179.6 mm L x 212.9 mm W x 285.5 H (7.1 in L x 8.4 in W x 11.1 in H)
Weight 2.7 kg (5.9 lbs)
User Interface 88.9 mm (3.5 in) 320 x 240 Color LCD, 1 Print/Feed button and ready-to-work LED
Memory 256 Mbyte RAM, 512 Mbytes Flash

Environmental
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 152°F)
Humidity 10% to 90%, non-condensing

Power and Software
Power Supply Input 100–240V AC/50–60 Hz, 1.5 A
Power Supply Output 24V DC, 3.15 A
Printer Command Languages Fingerprint (FP), Direct Protocol (DP), Intermec Printer Language (IPL), ZSim2 (ZPL-II), DPL, XML-enabled for SAP AII and Oracle WMS, PDF, C#
Mobile OS Support iOS and Android
Device Management (optional) PrintSet 6; SOTI Connect; Honeywell Operational Intelligence (OpIntel)
Warranty Two-year warranty
