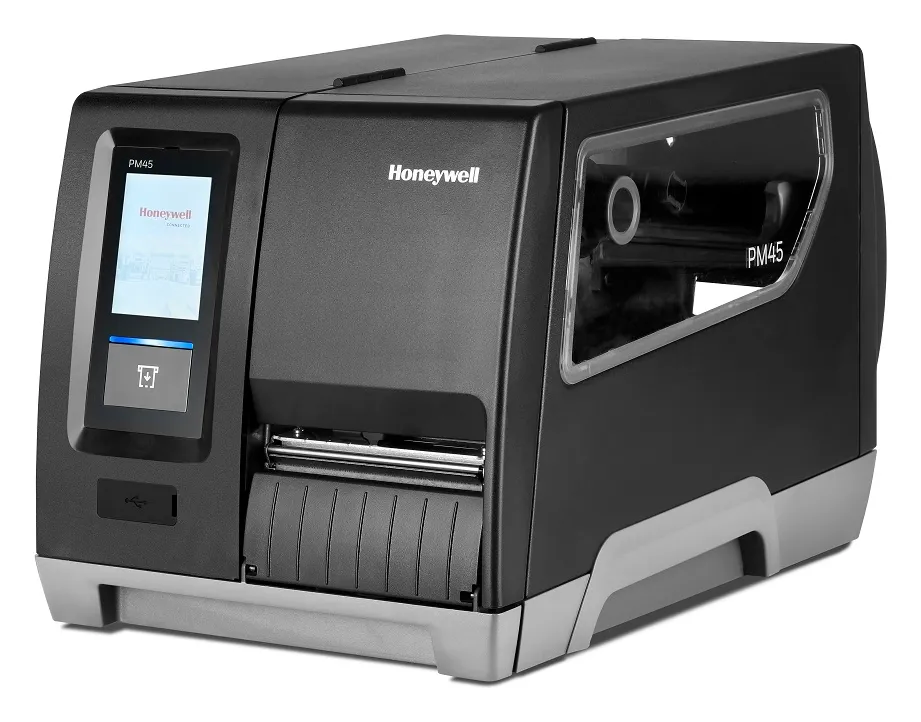

Honeywell PM45 Industrial Printer
4-inch industrial label printer for harsh sites, up to 14 ips at 203 dpi, 203 to 600 dpi, with Ethernet, USB, serial and WWAN (LTE).
- Type
- Industrial
- Print method
- Direct Thermal and Thermal Transfer
- Resolution
- 203 dpi / 300 dpi / 406 dpi / 600 dpi
- Max print width
- 108 mm (4.25 in)
- Max print speed
- 50-350 mm/s (2-14ips)
- Connectivity
- Ethernet 10/100 Mbps, USB 2.0 Host (x2), USB 2.0 Device, RS-232 …
Overview
Techcon Solution supplies, installs and supports the Honeywell PM45 in Hong Kong. Ask us for a quote, or about a demo unit.
The PM45 is a 4-inch mid-range industrial printer for high-quality, high-volume label printing in food and beverage, pharmaceuticals, manufacturing, warehouses and distribution centres. Print registration of up to +/-0.5 mm keeps barcodes sharp even on small component and pharmaceutical labels.
- WWAN connectivity: an LTE modem keeps data flowing where the site network does not reach.
- Scalable: RFID, parallel, industrial and applicator interfaces can be added later.
- Low maintenance: all-metal print mechanism, easy printhead and tool-free platen roller replacement.
The print method (direct thermal and thermal transfer) is from Honeywell’s PM45 product page; the other values are from the PM45/PM45c datasheet.
Specifications
From the Honeywell datasheet. Download it for certifications and accessories.
Print Specifications
| Print Method | Direct Thermal and Thermal Transfer |
|---|---|
| Print Resolution | 203 dpi (8 dots/mm); 300 dpi (11.8 dots/mm); 406 dpi (16 dots/mm); 600 dpi (23.6 dots/mm) |
| Maximum Print Width | 108 mm (4.25 in) at 203 dpi; 105.7 mm (4.17 in) at 300 dpi; 104 (4.09 in) at 406 dpi; 105.6 mm (4.16 in) at 600 dpi |
| Maximum Print Speed | 50-350 mm/s (2-14ips) at 203 dpi; 50-300 mm/s (2-12ips) at 300 dpi; 50-250 mm/s (2-10ips) at 406 dpi; 50-150 mm/s (2-6ips) at 600 dpi |
| Maximum Print Length | 4.8 m (189 in) at 203 dpi; 2.2m (85in) at 300 dpi; 1.2 m (47.2 in) at 406 dpi; 0.55m (22in) at 600 dpi |
Media and Ribbon
| Media Type | Labels and Tags and Linered media |
|---|---|
| Media Width (Max./Min.) | 114/19 mm (4.5/0.75 in) |
| Media Thickness | 3 mil to 10.4 mil |
| Configuration | Roll-fed or fan-fold |
| Media Sensing | Gap, Notch, Black mark, Continous, Media low, Media end |
| Label Roll Max. Diameter | 213 mm (8.38 in) |
| Label Roll Core ID | 38-76 mm (1.5-3 in) |
| Ribbon Type | Wax, mid-range and resin |
| Ribbon Roll Max. Diameter | 80 mm (3.15 in), capacity of 450 m (1,476 ft) |
| Ribbon Core ID | 25mm (1 in) |
Interfaces
| Connectivity | Ethernet 10/100 Mbps; USB 2.0 Host (x2); USB 2.0 Device; RS-232; WLAN 802.11 a/b/g/n/ac; Bluetooth V5.0; WWAN (CAT4 LTE) |
|---|---|
| Standard | Ethernet 10/100 Mbps, USB 2.0 Host (x2 PM45), USB 2.0 Device, RS-232, up to 115.2 KB/s |
| Optional | Parallel Interface (IEEE 1284); Industrial interface; Applicator Interface; RFID (EPC Class 1 Gen2, 18000-6C) |
| WLAN | IEEE 802.11 a/b/g/n/ac; Wi-Fi certified, 1x1 SISO |
| Bluetooth | V5.0 Bluetooth and BLE Supported |
| WWAN | WWAN Radio, CAT4 LTE Modem; Micro Sim Card slot x 1 |
Physical Characteristics
| Dimensions (L x H x W) | 483 mm x 295mm x 284 mm |
|---|---|
| Weight | 13.2 kg (29.1lbs) |
| User Interface | Full Touch UI, Icon UI |
| Memory | 512 MB Flash memory, 256 MB SDRAM |
Operating Environment
| Ambient Operating Temperature | +5°C to +40°C (+41°F to +104°F) |
|---|---|
| Storage Temperature | -20°C to +70°C (-4°F to +152°F) |
| Operating Humidity | 20 to 85% non-condensing |
| Storage Humidity | 5 to 90% non-condensing |
Power and Software
| AC Voltage | 100 to 240V AC, 50 to 60 Hz |
|---|---|
| Power Consumption | Standby 9.6W; Peak 270W (24V), Peak 145W (33V) |
| Printer Command Languages | Fingerprint (FP), Direct Protocol (DP), Intermec Printer Language (IPL), ZSim2 (ZPL-II), DPL, XML-enabled for SAP® AII and Oracle® WMS, PDF, C# |
| Barcode Symbologies | All major 1D and 2D symbologies are supported |
