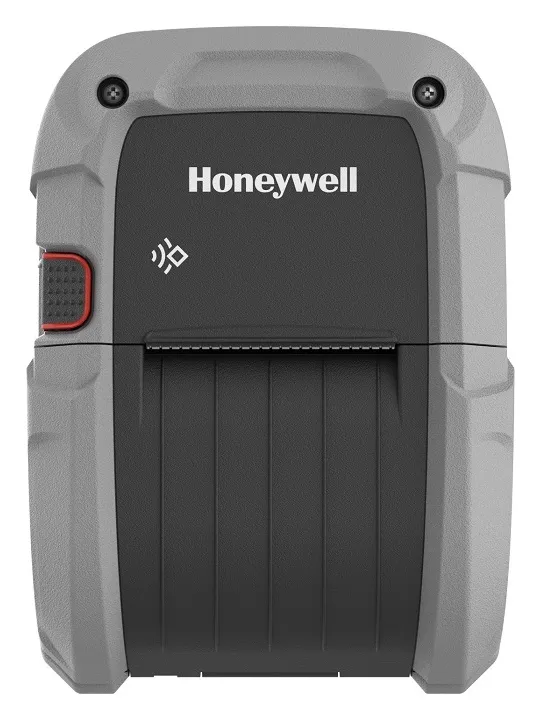

Honeywell RP2f Series Mobile Printer

Rugged 2-inch direct thermal mobile printer for labels and receipts on the move, with Bluetooth 5.0, optional Wi-Fi and an IP54 rating.

Type
Mobile
Print method
Direct Thermal
Resolution
203 dpi
Max print width
48 mm (1.89 in)
Max print speed
Up to 5 inch (127 mm) per second
Connectivity
USB 2.0 (On-The-Go), Bluetooth 5.0, WLAN 802.11 a/b/g/n/ac (Dual SKU), NFC for pairing
Ask about this model WhatsApp us
Download the datasheetPDF, 192 KB

Overview

Techcon Solution supplies, sets up and supports the Honeywell RP2f in Hong Kong. Ask us for a quote, or about a demo unit.

The RP2f is the 2-inch model of Honeywell’s RPf Series of rugged, portable direct thermal printers. Workers carry it to print labels and receipts where they are needed: direct store delivery, field service, transport and logistics, retail and airline work.

  • Ultra-rugged: survives 2 m (6.6 ft) drops and 1,000 tumbles of 0.5 m (1.6 ft), with an IP54 rating.
  • Hot-swappable battery: swap it in about 20 seconds without powering off or losing the wireless connection.
  • Managed remotely: Honeywell Printer Edge, Operational Intelligence and SOTI Connect support.

Specifications

From the Honeywell datasheet. Download it for certifications and accessories.

Print Specification
Print Method Direct Thermal
Resolution 203 dpi (8 dots / mm)
Maximum Print Speed Up to 5 inch (127 mm) per second
Maximum Print Width 48 mm (1.89 in)
Print Length 991 mm (39 in)
Sensing Black mark sensor (Top and Bottom); Gap sensor
Memory 256MB SDRAM, 4 GB Flash Memory

Media
Media Roll Width 25 mm (1.0 in) to 57 mm (2.25 in)
Media Types Tags, receipt paper, labels, linered and linerless labels (linerless for printers equipped with the linerless option only)
Maximum Roll Capacity 58 mm (2.25 in) outside diameter
Core Sizes 10.16 mm (0.4 in), 19 mm (0.75 in), or 25.4 mm (1.0 in) inside diameter
Media Thickness 0.05 mm (2 mil) to 0.16 mm (6.3 mil)

Communications
Connectivity USB 2.0 (On-The-Go); Bluetooth 5.0; WLAN 802.11 a/b/g/n/ac (Dual SKU); NFC for pairing
USB 2.0 Includes On-The-Go (OTG) capabilities for scanner, scale, and keyboard input
NFC For pairing
Bluetooth Bluetooth 5.0 (Classic and BLE dual radio mode); serial port profile, security modes 1-4, encryption 1-3e, Apple iOS compatible
WLAN 802.11 a/b/g/n/ac; Infrastructure and Soft AP; WEP (64/128), WPA (TKIP/RC4) and WPA2/3 (CCMP/AES)
Radio Options SKU optional for Bluetooth Only or Dual (Bluetooth + WLAN)

Physical Characteristics
Dimensions (H x W x D) 160 mm x 116 mm x 77 mm (6.3 in x 4.6 in x 3.0 in)
Weight 0.72 kg (1.5 lb) (with battery, no media)

Environmental
Environmental Sealing IP54
Drop Spec 2 m (6.6 ft)
Tumble Spec 1,000 cycles at 0.5 m (1.6 ft)
Operating Temperature -20°C to 55°C (-4°F to 131°F)
Storage Temperature -30°C to 65°C (-22°F to 149°F)
Charging Temperature 0°C to 40°C (32°F to 104°F)
Humidity 10% – 90%, non-condensing

Power
Battery 7.2V Lithium-ion (Li-ion), 2500 mAh with battery age LED indicator
Charge Time (Typical) 4 hours
Hot-Swappable Battery Maintains wireless Bluetooth and Wi-Fi connection up to 20 seconds

Software
Printer Command Languages Fingerprint (FP), Direct Protocol (DP), Intermec Printer Language (IPL), ZSim2, DPL, XML-enabled for SAP AII and Oracle WMS, PDF, CSim, EZ-Print, C#
Remote Management Operational Intelligence, SOTI® Connect
Barcode Symbologies All major 1D and 2D symbologies are supported
Warranty Two-year factory warranty
