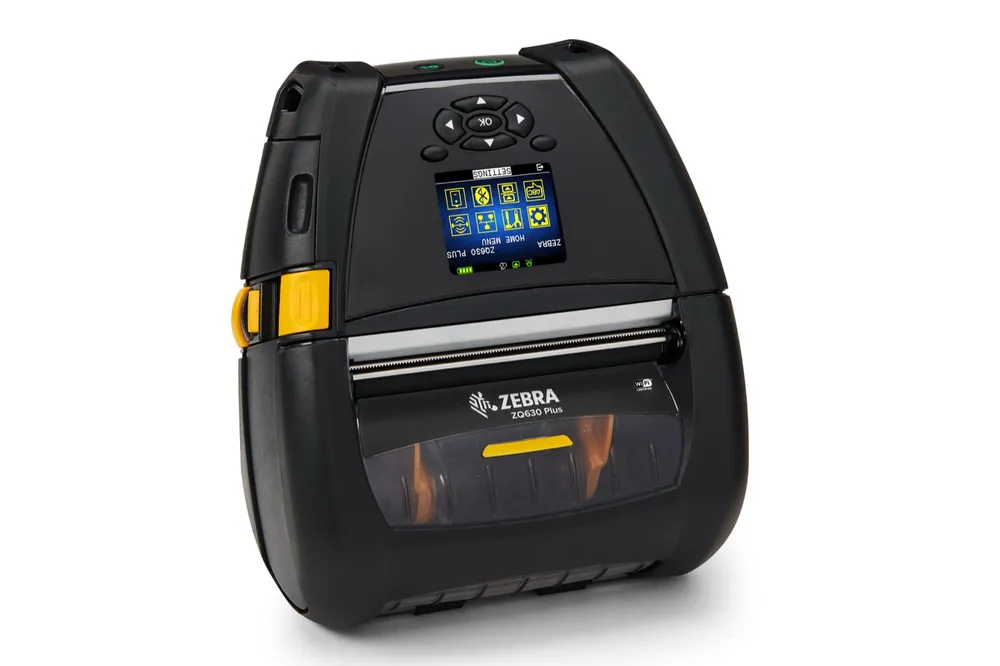

Zebra ZQ600 Plus Series Mobile Printers

Premium 2-, 3- and 4-inch direct thermal mobile label and receipt printers with Wi-Fi 6, Bluetooth, a colour display and IP54 sealing.

Type
Mobile
Print method
Direct thermal
Resolution
203 dpi
Max print width
ZQ610 Plus: 1.9 in./48 mm; ZQ620 Plus: 2.8 in./72 mm; ZQ630 Plus: 4.1 in./104 mm
Max print speed
Up to 4.5 in./115 mm per second
Connectivity
ZebraNet Wi-Fi 6 (802.11ax) dual radio, Bluetooth 5.3, USB 2.0, RS-232C serial …
Ask about this model WhatsApp us
Download the datasheetPDF, 455 KB

Overview

Techcon Solution supplies, sets up and supports the Zebra ZQ600 Plus Series in Hong Kong. Ask us for a quote, or about a demo unit.

The ZQ6 Series (ZQ610 Plus, ZQ620 Plus and ZQ630 Plus) builds on Zebra’s QLn platform for retail shelf-edge and markdown labels, mobile point-of-sale receipts, warehouse picking and receiving.

  • Three widths: ZQ610 Plus 1.9 in./48 mm, ZQ620 Plus 2.8 in./72 mm and ZQ630 Plus 4.1 in./104 mm print width.
  • Wi-Fi 6: ZebraNet Wi-Fi 6 (802.11ax) dual radio with simultaneous Bluetooth 5.3, WPA3 and 802.11r fast roaming.
  • Easy to manage: large colour display, Ethernet cradle for remote management, and backward compatibility with QLn accessories.

Specifications

From the Zebra datasheet. Download it for certifications and accessories.

Printer Specifications
Print Method Direct thermal
Resolution 203 dpi/8 dots per mm
Maximum Print Width ZQ610 Plus: 1.9 in./48 mm; ZQ620 Plus: 2.8 in./72 mm; ZQ630 Plus: 4.1 in./104 mm
Maximum Print Speed Up to 4.5 in./115 mm per second
Operating System Link-OS
Memory 256 MB RAM; 512 MB Flash (standard); 128 MB available for user storage
Media Sensors Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time
Print Length Minimum: 0.5 in./12.7 mm; Maximum: 32 in./813 mm
Battery ZQ610 Plus and ZQ620 Plus: 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery; ZQ630 Plus: 6600 mAh (nominal) 47.5 Wh removable PowerPrecision+ Li-Ion battery
Display Large, easy-to-read color display (288 x 240 pixels)
Programming Languages CPCL, EPL and ZPL; ZBI 2.0

Media Characteristics
Label and Liner Length 0.5 in./12.7 mm to 32 in./813 mm or continuous
Media Width ZQ610 Plus: 1.0 in./25 mm to 2.18 in./55.4 mm; ZQ620 Plus: 1.0 in./25 mm to 3.125 in./79 mm; ZQ630 Plus: 2.0 in./51 mm to 4.4 in./112 mm (linered), 2.0 in./51 mm to 4.1 in./104 mm (linerless)
Maximum Media Roll Size ZQ610 Plus: 2.2 in./55.9 mm OD; ZQ620 Plus: 2.6 in./66 mm OD; ZQ630 Plus: 2.6 in./66 mm O.D.; all on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core
Thickness 2.3 mil to 5.5 mil tag stock or 6.5 mil label stock
Media Types Die-cut labels and tags, linerless labels, receipt paper, RFID (ZQ630 Plus RFID compatible), black bar and gap

Communication and Interface Capabilities
Connectivity ZebraNet Wi-Fi 6 (802.11ax) dual radio; Bluetooth 5.3; USB 2.0; RS-232C serial; 10/100 Ethernet (via charging cradle); NFC (Zebra Print Touch)
WLAN 2.4 GHz and 5 GHz frequency bands; MIMO antenna design; WPA3, WPA2, WPA; 802.11k, 802.11v and 802.11r roaming standards; TKIP and AES encryption
Bluetooth Simultaneous Bluetooth 5.3 with BT SIG Certification; Bluetooth 4.2 (Classic and BLE) radio; "Made for iPod/iPhone/iPad" certified
Cabled Communications USB 2.0 full-speed interface (12 Mbps), Mini-B connector with optional strain relief; 14-pin RS-232C serial port up to 115.2 Kbps
Host Connectivity Apple iOS, Android and Windows Mobile

Physical Characteristics
Dimensions ZQ610 Plus: 6.73 in. L x 3.6 in. W x 2.85 in. H (170.9 mm L x 91.4 mm W x 72.4 mm H); ZQ620 Plus: 6.84 in. L x 4.64 in. W x 3.03 in. H (173.7 mm L x 117.9 mm W x 76.9 mm H); ZQ630 Plus: 7.35 in. L x 6.5 in. W x 3.25 in. H (186.7 mm L x 165.1 mm W x 82.5 mm H)
Weight with battery ZQ610 Plus: 1.33 lbs/0.6 kg; ZQ620 Plus: 1.6 lbs/0.73 kg; ZQ630 Plus: 2.45 lbs/1.1 kg

Operating Characteristics
IP Rating IP54 dust and water resistance rating
Drop Specification Multiple drops to concrete from 5 ft./1.52 m (ZQ620 Plus and ZQ610 Plus) and 6 ft./1.83 m (ZQ630 Plus)
Operating Temp. -4°F to 122°F/-20°C to 50°C
Storage/Transportation Temp. -13°F to 149°F/-25°C to 65°C
Operating Humidity 10% to 90% non-condensing
Warranty 1 (one) year from the date of shipment
