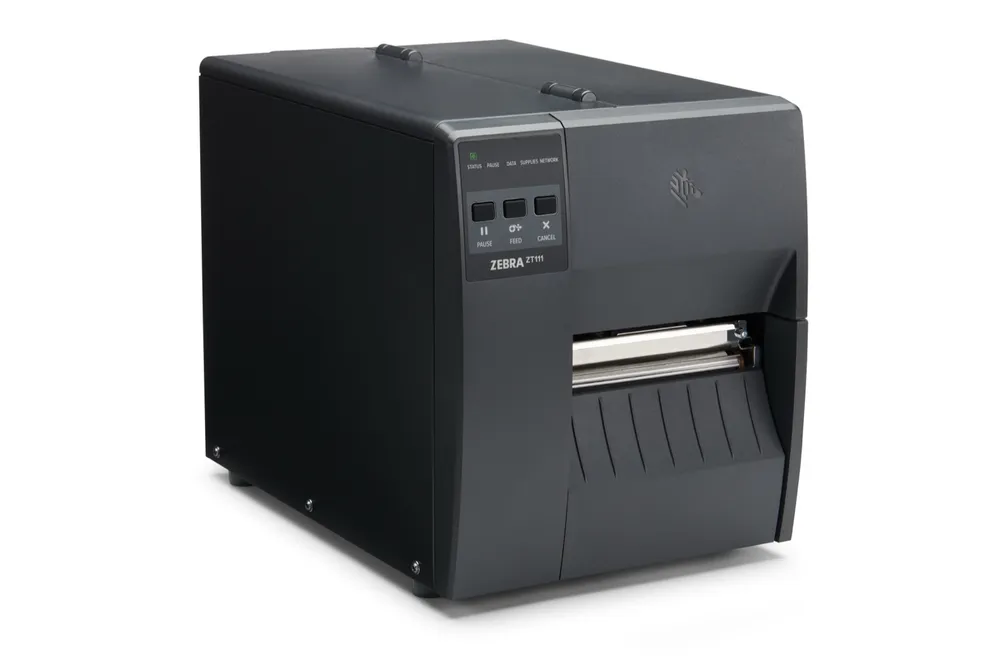

Zebra ZT111 Industrial Printer

Entry-level 4-inch industrial label printer, direct thermal or thermal transfer, up to 10 ips, with USB, Serial, Ethernet, USB Host and Bluetooth LE.

Type
Industrial
Print method
Direct-thermal or thermal-transfer
Resolution
203 dpi / 300 dpi
Max print width
4.09 in./104 mm
Max print speed
10 ips
Connectivity
USB 2.0, RS-232 Serial port, 10/100 Ethernet, USB Host …
Ask about this model WhatsApp us
Download the datasheetPDF, 361 KB

Overview

Techcon Solution supplies, installs and supports the Zebra ZT111 in Hong Kong. Ask us for a quote, or about a demo unit.

The ZT111 is Zebra’s entry-level industrial printer for sites that have outgrown a desktop printer. It suits work-in-process, shipping, receiving, compliance, laboratory and price labelling.

  • Fast and sharp: up to 10 ips, with optional 300 dpi high-resolution printing.
  • Compact: small footprint and a bi-fold media door that needs less height to open.
  • Upgradeable: field-installable 802.11ac Wi-Fi, a second Ethernet port, peeler and cutter options.

Specifications

From the Zebra datasheet. Download it for certifications and accessories.

Printer Specifications
Print Methods Direct-thermal or thermal-transfer
Resolution 203 dpi/8 dots per mm; 300 dpi/12 dots per mm (optional)
Maximum Print Width 4.09 in./104 mm
Maximum Print Speed 10 ips (200 dpi); 6 ips (300 dpi)
Memory 256 MB SDRAM memory; 256 MB on-board linear Flash memory
Media Sensors Transmissive and reflective sensors
Maximum Print Length 203 dpi: 157in./3988 mm; 300 dpi: 73in./1854 mm
Interface Three button keypad; five color LEDs for quick printer status

Media Characteristics
Minimum Label and Liner Length Tear mode: 0.7 in/18 mm; Cutter mode: 1 in/25 mm; Peel mode: 0.5 in/13 mm
Media Width 0.75 in./19.4 mm to 4.50 in./114 mm
Media Roll Size 8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core; 6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core
Media Thickness 0.003 in./0.076 mm to 0.010 in./0.25 mm
Media Types Continuous, die-cut, notch, black mark
Ribbon Standard Length 1,476 ft./450 m (thermal-transfer option only)
Ribbon Width 2 in./51 mm to 4.33 in./110 mm
Ribbon Core 1.0 in./25.4 mm

Communications
Connectivity USB 2.0; RS-232 Serial port; 10/100 Ethernet; USB Host; Bluetooth Low Energy
Options 802.11ac Wi-Fi option card; 10/100 Ethernet option card
NFC Print Touch tag (tap to pair and print with compatible mobile devices)

Physical Characteristics
Dimensions (closed) 17 in. L x 9.5 in. W x 11 in. H (432 mm L x 241 mm W x 279 mm H)
Weight 17 lbs./7.7 kg
Construction Metal frame and plastic enclosures; bi-fold media door with large clear window

Operating Characteristics
Operating Temp. Thermal transfer: 40ºF to 105ºF/5º to 40ºC; Direct thermal: 32ºF to 105ºF/0º to 40ºC
Storage/Transportation Temperature -40ºF to 140ºF/-40º to 60ºC
Operating Humidity 20% to 85% non-condensing
Storage Humidity 5% to 85% non-condensing
Electrical Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 50-60 Hz; ENERGY STAR certified
Programming Languages ZPL and ZPL II; EPL and EPL2 (203 dpi models only); ZBI 2.0 (optional)
Media Handling Options Peel (front-mount, passive-peel with no take-up spindle); Cutter (front-mount guillotine cutter)
