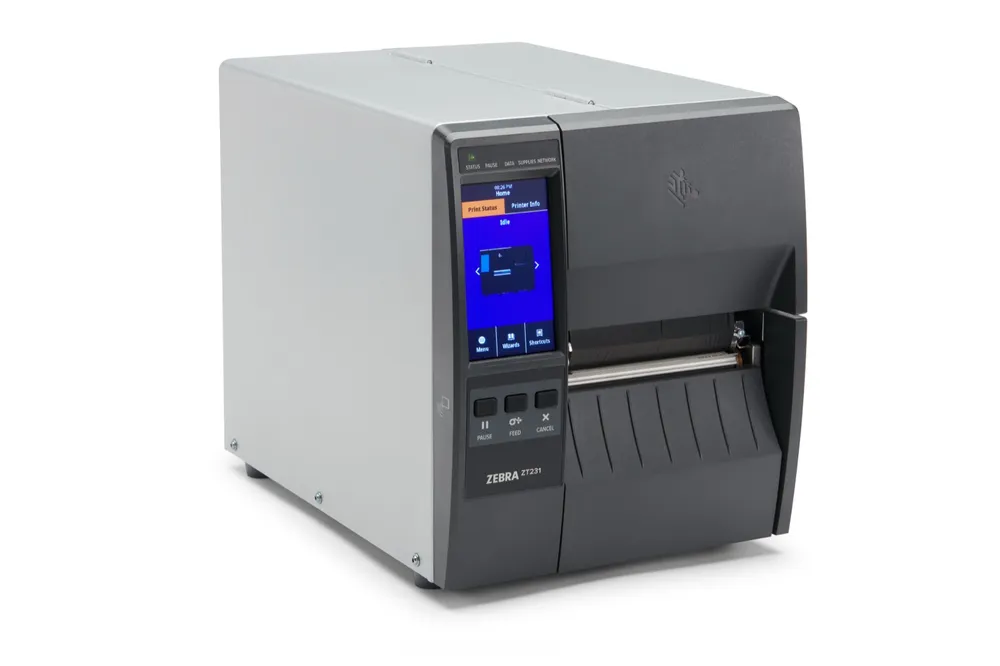

Zebra ZT231 Industrial Printer

Name: Zebra ZT231 Industrial Printer
Brand: Zebra

4-inch industrial label printer, direct thermal or thermal transfer, up to 12 ips, with a 4.3-inch colour touch screen and optional UHF RFID.

Overview

Techcon Solution supplies, installs and supports the Zebra ZT231 in Hong Kong. Ask us for a quote, or about a demo unit.

The ZT231 is a space-saving 4-inch industrial printer for manufacturing, transport and logistics, healthcare and retail labelling.

Quick to run: a 4.3-inch colour touch screen with an intuitive menu, and side-loading media and ribbon.
Fast: up to 12 ips at 203 dpi, with optional 300 dpi.
Add as you go: 802.11ac Wi-Fi, a second Ethernet port, applicator interface, peeler, cutter and a field-installable UHF RFID kit.

From the Zebra datasheet. Download it for certifications and accessories.

Printer Specifications
Print Methods	Direct-thermal or thermal-transfer
Resolution	203 dpi/8 dots per mm; 300 dpi/12 dots per mm (optional)
Maximum Print Width	4.09 in./104 mm
Maximum Print Speed	12 ips (203 dpi); 8 ips (300 dpi)
Memory	256 MB SDRAM memory; 256 MB on-board linear Flash memory
Media Sensors	Moveable transmissive and reflective sensors
Maximum Print Length	203 dpi: 157 in/3988 mm; 300 dpi: 73in/1854 mm
Display	4.3” color resistive touch screen with intuitive menu

Media Characteristics
Minimum Label and Liner Length	Tear mode: 0.7 in/18 mm; Cutter mode: 1 in/25 mm; Peel mode: 0.5 in/13 mm
Media Width	0.75 in./19.4 mm to 4.50 in./114 mm
Media Roll Size	8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core; 6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core
Media Thickness	0.003 in./0.076 mm to 0.010 in./0.25 mm
Media Types	Continuous, die-cut, notch, black mark
Ribbon Standard Length	1,476 ft./450 m (thermal-transfer option only)
Ribbon Width	2 in./51 mm to 4.33 in./110 mm
Ribbon Core	1.0 in./25.4 mm

Communications
Connectivity	USB 2.0; RS-232 Serial port; 10/100 Ethernet; USB Host; Bluetooth Low Energy (BTLE)
Options	802.11ac Wi-Fi option card; 10/100 Ethernet option card; Applicator Interface
RFID	UHF field-installable RFID kit
NFC	Print Touch tag (tap to pair and print with compatible mobile devices)

Physical Characteristics
Dimensions (closed)	17 in. L x 9.5 in. W x 11 in. H (432 mm L x 241 mm W x 279 mm H); with Liner Takeup Unit: 17 in. L x 9.5 in. W x 12.75 in. H (432 mm L x 241 mm W x 324 mm H)
Weight	20 lbs./9.1 kg; with Liner Takeup Unit: 24 lbs./10.9 kg
Construction	Metal frame and metal enclosures; bi-fold media door with large clear window

Operating Characteristics
Operating Temp.	Thermal transfer: 40ºF to 105ºF/5º to 40ºC; Direct thermal: 32ºF to 105ºF/0º to 40ºC
Storage/Transportation Temperature	-40ºF to 140ºF/-40º to 60ºC
Operating Humidity	20% to 85% non-condensing
Storage Humidity	5% to 85% non-condensing
Electrical	Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 50-60 Hz; ENERGY STAR certified
Programming Languages	ZPL and ZPL II; EPL and EPL2 (203 dpi models only); ZBI 2.0 (optional)
Media Handling Options	Peel (front-mount, passive-peel with no take-up spindle); Peel with liner take-up spindle (factory-fit only); Cutter (front-mount guillotine cutter)

We can bring a demo unit to your site, check it against your systems and quote for the number you need.
