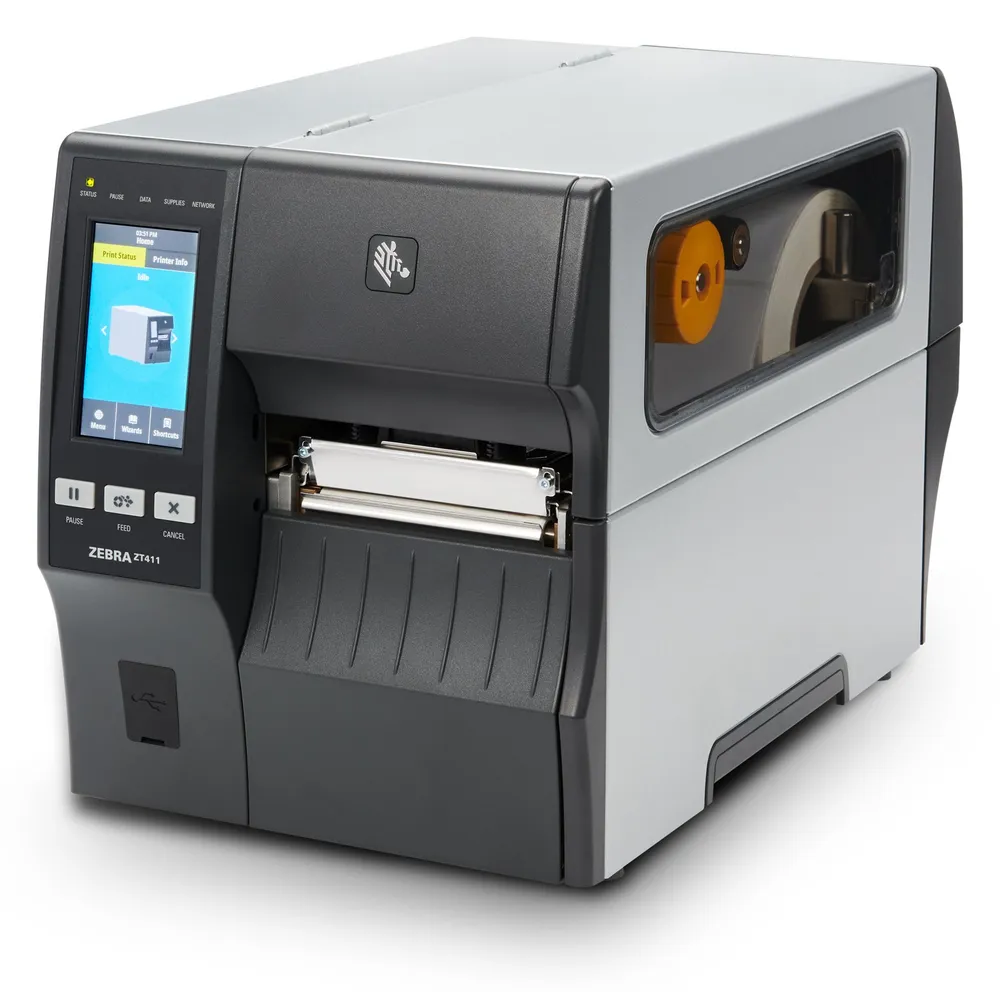

Zebra ZT400 Series Industrial Printers

Industrial label printers in 4-inch (ZT411) and 6-inch (ZT421) widths, up to 600 dpi, with a colour touch display and Ethernet, USB and Bluetooth.

Type
Industrial
Print method
Thermal transfer and direct thermal printing
Resolution
203 dpi / 300 dpi / 600 dpi
Max print width
ZT411: 4.09 in./104 mm; ZT421: 6.6 in./168 mm
Max print speed
ZT411: 14 ips/356 mm per second; ZT421: 12 ips/305 mm per second
Connectivity
USB 2.0, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1 …
Ask about this model WhatsApp us
Download the datasheetPDF, 197 KB

Overview

Techcon Solution supplies, installs and supports the Zebra ZT400 Series in Hong Kong. Ask us for a quote, or about a demo unit.

The ZT400 Series covers a broad range of industrial labelling in manufacturing, transport and logistics, retail and more. It comes in two print widths and three print resolutions.

  • ZT411: 4-inch model, up to 14 ips; 203, 300 or 600 dpi.
  • ZT421: 6-inch model, up to 12 ips; 203 or 300 dpi.
  • Built to evolve: field-installable linerless, connectivity, media handling and RFID options.

Specifications

From the Zebra datasheet. Download it for certifications and accessories.

Printer Specifications
Print Method Thermal transfer and direct thermal printing
Resolution 203 dpi/8 dots per mm; 300 dpi/12 dots per mm (optional); 600 dpi/24 dots per mm (optional for ZT411 only)
Maximum Print Width ZT411: 4.09 in./104 mm; ZT421: 6.6 in./168 mm
Maximum Print Speed ZT411: 14 ips/356 mm per second; ZT421: 12 ips/305 mm per second
Memory 256 MB SDRAM memory; 512 MB on-board linear Flash memory
Media Sensors Adjustable dual media sensors: transmissive and reflective
Display 4.3-in. color touch display

Media Characteristics
Media Width (ZT411) 1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter; 1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind
Media Width (ZT421) 2.00 in./51 mm to 7.0 in./178 mm tear/cutter; 2.00 in./51 mm to 6.75 in./171 mm peel/rewind
Maximum Media Roll Size 8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
Thickness 0.0023 in./0.058 mm to 0.010 in./0.25 mm
Media Types Continuous, die-cut, notch, black-mark, linerless media (linerless printer model only)
Ribbon Standard Length 1476 ft./450 m

Communications
Connectivity USB 2.0; RS-232 Serial; 10/100 Ethernet; Bluetooth 4.1; Dual USB Host
Standard USB 2.0, high-speed, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.1, Dual USB Host
Options Dual band 802.11ax Wi-Fi and Bluetooth 5.3; Dual band 802.11ac Wi-Fi and Bluetooth 4.2; Parallel (bi-directional interface); 10/100 Ethernet; Applicator interface
RFID Supports tags compatible with UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID protocols

Physical Characteristics
Dimensions (closed) ZT411: 19.5 in. L x 10.6 in. W x 12.75 in. H (495 mm L x 269 mm W x 324 mm H); ZT421: 19.5 in. L x 13.25 in. W x 12.75 H (495 mm L x 336 mm W x 324 mm H)
Weight ZT411: 36 lbs./16.33 kg; ZT421: 40 lbs./18.14 kg
Construction Metal frame and bi-fold metal media cover with enlarged clear viewing window

Environmental
Operating Temperature Thermal transfer: 40º F to 104º F/5º C to 40º C; Direct thermal: 32º F to 104º F/0º C to 40º C
Storage/Transportation Temperature -40º F to 140º F/-40º C to 60º C
Operating Humidity 20% to 85% non-condensing
Electrical Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR qualified
Programming Languages ZPL and ZPL II; EPL and EPL2 (203 dpi models only); ZBI 2.0 (optional)
