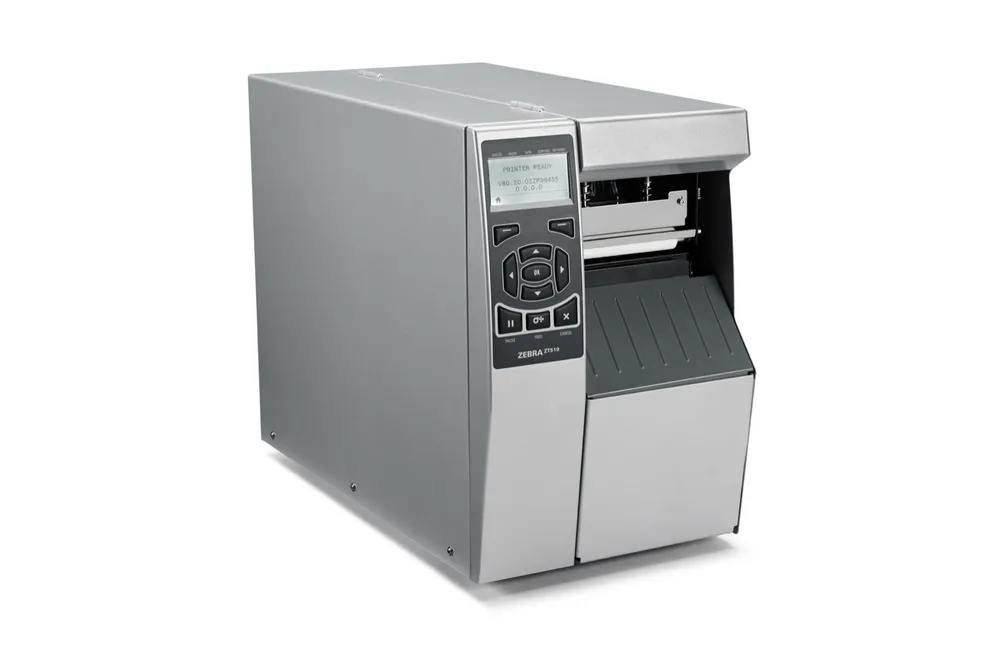

Zebra ZT510 Industrial Printer
All-metal 4-inch industrial label printer for 24/7 use, thermal transfer and direct thermal, 12 ips, with USB, Serial, Gigabit Ethernet and Bluetooth LE.
- Type
- Industrial
- Print method
- Thermal transfer and direct thermal printing
- Resolution
- 203 dpi / 300 dpi
- Max print width
- 4.09"/104 mm
- Max print speed
- 12 ips/305 mm per second
- Connectivity
- USB, Serial, Gigabit Ethernet, Bluetooth LE
Overview
Techcon Solution supplies, installs and supports the Zebra ZT510 in Hong Kong. Ask us for a quote, or about a demo unit.
The ZT510 builds on Zebra’s 105SLPlus with a durable design for round-the-clock work in manufacturing, warehouses, transport and logistics.
- Rugged: all-metal design and sealed dome buttons that keep out dust, dirt and moisture.
- Well connected: USB, Serial, Gigabit Ethernet and Bluetooth LE as standard; two open slots for 802.11ac, parallel or Ethernet cards.
- Easy to manage: Link-OS remote management and a backlit multi-line display with password protection.
Specifications
From the Zebra datasheet. Download it for certifications and accessories.
Printer Specifications
| Print Methods | Thermal transfer and direct thermal printing |
|---|---|
| Resolution | 203 dpi/8 dots per mm; 300 dpi/12 dots per mm (optional) |
| Maximum Print Width | 4.09"/104 mm |
| Maximum Print Speed | 12 ips/305 mm per second |
| Memory | 512 MB RAM memory; 2 GB on-board linear Flash memory |
| Media Sensors | Dual media sensors: transmissive and reflective |
| Maximum Continuous Print Length | 203 dpi: 150"/3810 mm; 300 dpi: 100"/2540 mm |
| Display | Backlit, multi-line display including an intuitive menu, easy-to-use keypad and password protection |
Media Characteristics
| Media Width | 0.79"/20 mm to 4.5"/114 mm |
|---|---|
| Maximum Media Roll Size | 8.0"/203 mm O.D. on a 3"/76 mm I.D. core |
| Thickness | 0.003"/0.076 mm to 0.012"/0.305 mm |
| Media Types | Continuous, die-cut, notch, black-mark |
| Ribbon Standard Length | 1476'/450 m |
| Ribbon Width | 2.00"/51 mm to 4.33"/110 mm |
| Ribbon Core | 1.0"/25.4 mm I.D. |
Communications
| Connectivity | USB; Serial; Gigabit Ethernet; Bluetooth LE |
|---|---|
| Options | Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet; IPv6 option is available as an external dongle attached to a parallel port |
| NFC | Print Touch with the Link-OS app to pair with Android devices |
Physical Characteristics
| Dimensions (closed) | 20.17"/512.3 mm L x 10.56"/268.2 mm W x 15.58"/395.68 mm H |
|---|---|
| Weight | 50 lbs/22.7 kg |
| Construction | Metal frame |
Operating Characteristics
| Operating Temperature | Thermal transfer = 40°F to 104°F/5°C to 40°C; Direct thermal = 32°F to 104°F/0°C to 40°C |
|---|---|
| Storage/Transportation Temperature | -22°F to 140°F/ -30°C to 60°C |
| Operating Humidity | 20% to 85% non-condensing |
| Storage Humidity | 20% to 85% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts; ENERGY STAR qualified |
| Programming Languages | ZPL and ZPL II; XML-enabled printing; ZBI 2.0 (optional) |
| Media Handling Options | Rewind (internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner); Cutter (front-mount guillotine cutter and catch tray) |
Other barcode printers
-
Zebra ZD411 Desktop Printer
Compact 2-inch desktop label printer in direct thermal and thermal transfer models, with USB, USB Host and optional Ethernet, Wi-Fi and Bluetooth.
-
Zebra ZD421 Desktop Printer
4-inch desktop label printer in direct thermal, thermal transfer roll and ribbon cartridge models, with optional Ethernet, Wi-Fi and Bluetooth.
-
Zebra ZQ300 Plus Series Mobile Printers
Lightweight 2- and 3-inch direct thermal mobile printers for receipts and labels, with IP54 sealing, Bluetooth, optional Wi-Fi and NFC tap-to-pair.
Want to try the ZT510 Industrial Printer?
We can bring a demo unit to your site, check it against your systems and quote for the number you need.
