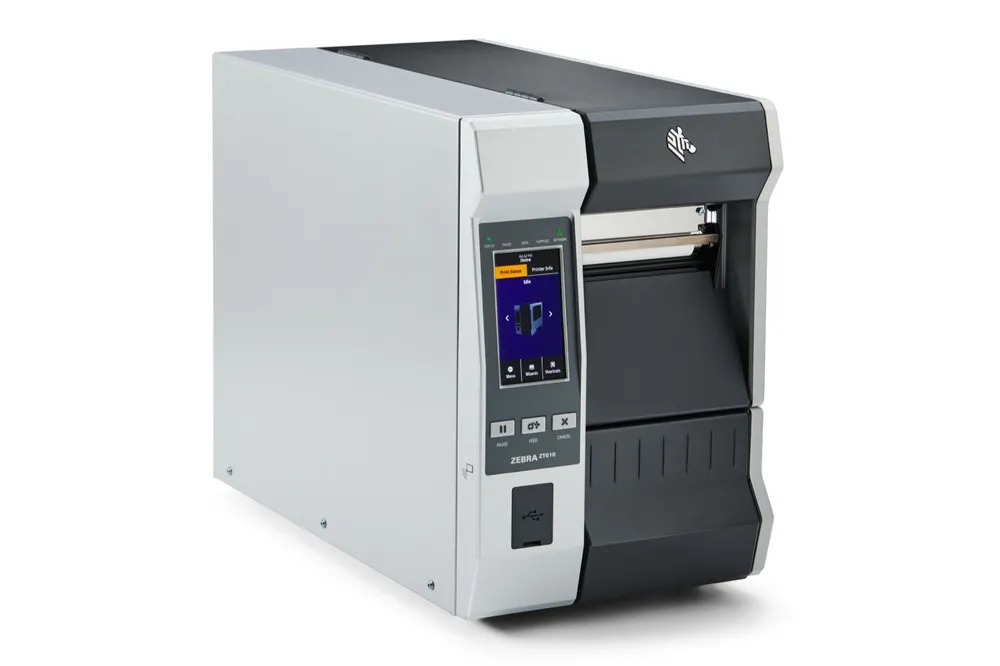

Zebra ZT6 Series Industrial Printers

Premium industrial label printers in 4-inch (ZT610) and 6-inch (ZT620) widths, up to 600 dpi and 14 ips, with a 4.3-inch colour touch display.

Type
Industrial
Print method
Thermal transfer and direct thermal printing
Resolution
203 dpi / 300 dpi / 600 dpi
Max print width
ZT610: 4.09 in./104 mm; ZT620: 6.6 in./168 mm
Max print speed
ZT610: 14 ips/356 mm per second; ZT620: 12 ips/305 mm per second
Connectivity
USB 2.0, RS-232 Serial, Gigabit Ethernet, Bluetooth
Ask about this model WhatsApp us
Download the datasheetPDF, 391 KB

Overview

Techcon Solution supplies, installs and supports the Zebra ZT6 Series in Hong Kong. Ask us for a quote, or about a demo unit.

The ZT6 Series (ZT610 and ZT620) is the next generation of Zebra’s Xi Series, built for 24/7 high-volume printing in manufacturing, transport and logistics, retail distribution centres and healthcare.

  • ZT610: 4-inch model, up to 14 ips; 203, 300 or 600 dpi, plus a 600 dpi Micro Label Printer option for labels as small as 3 mm.
  • ZT620: 6-inch model, up to 12 ips; 203 or 300 dpi.
  • Built to adapt: two open communication slots, field-installable media handling and user-upgradable RFID on both widths.

Specifications

From the Zebra datasheet. Download it for certifications and accessories.

Printer Specifications
Print Methods Thermal transfer and direct thermal printing
Resolution 203 dpi/8 dots per mm; 300 dpi/12 dots per mm (optional); 600 dpi/24 dots per mm (optional for ZT610 only); 600 dpi/24 dots per mm for micro label printing (optional for ZT610 only)
Maximum Print Width ZT610: 4.09 in./104 mm; ZT620: 6.6 in./168 mm
Maximum Print Speed ZT610: 14 ips/356 mm per second; ZT620: 12 ips/305 mm per second
Operating System Link-OS
Memory 1 GB RAM memory; 2 GB on-board linear Flash memory
Media Sensors Dual media sensors: transmissive and reflective
Maximum Continuous Print Length ZT610: 203 dpi: 150 in./3810 mm, 300 dpi: 100 in./2540 mm, 600 dpi: 30 in./762 mm; ZT620: 203 dpi: 80 in./2032 mm, 300 dpi: 80 in./2032 mm
Display 4.3 in. full-color touch display

Media Characteristics
Media Width ZT610: 0.79 in./20 mm to 4.5 in./114 mm; ZT610 Micro Label Printer: 0.47 in./12 mm to 4.5 in./114 mm; ZT620: 2.0 in./51 mm to 7.1 in./180 mm
Maximum Media Roll Size 8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
Thickness 0.0023 in./0.058 mm to 0.010 in./0.25 mm
Media Types Continuous, die-cut, notch, black-mark
Ribbon Standard Length 1476 ft./450 m
Ribbon Width ZT610: 0.79 in./20 mm to 4.33 in./110 mm; ZT620: 2.0 in./51 mm to 6.7 in./170 mm
Ribbon Core 1.0 in./25.4 mm I.D.

Communications
Connectivity USB 2.0; RS-232 Serial; Gigabit Ethernet; Bluetooth
Options Two open communication slots for Dual band 802.11ax Wi-Fi and Bluetooth 5.3, Parallel, Ethernet, Applicator interface; IPv6 option is available as external dongle attached to a parallel port
RFID Supports tags compatible with UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID protocols; user-upgradable in the field on both 4 in. and 6 in. models

Physical Characteristics
Dimensions (closed) ZT610: 19.88 in. L x 10.56 in. W x 15.58 in. H (505 mm L x 268.2 mm W x 395.68 mm H); ZT620: 19.88 in. L x 13.44 in. W x 15.58 in. H (505 mm L x 341.45 mm W x 395.68 mm H)
Weight ZT610: 50 lbs/22.7 kg; ZT620: 57.4 lbs/26 kg
Construction Metal frame and bi-fold metal media cover with enlarged clear viewing window

Operating Characteristics
Operating Temperatures Thermal transfer: 40ºF to 104ºF/5ºC to 40ºC; Direct thermal: 32ºF to 104ºF/0ºC to 40ºC
Storage/Transportation Temperature -22°F to 140°F/-30°C to 60°C
Operating Humidity 20% to 85% non-condensing
Storage Humidity 20% to 85% non-condensing
Electrical Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts; ENERGY STAR certified
Programming Languages ZPL and ZPL II; XML-enabled printing; ZBI 2.0 (optional)
Media Handling Options Rewind; Cutter (front-mount guillotine cutter and catch tray); Micro Label Printer (ZT610 600 dpi only): Tear or Rewind, cutter and RFID not supported
