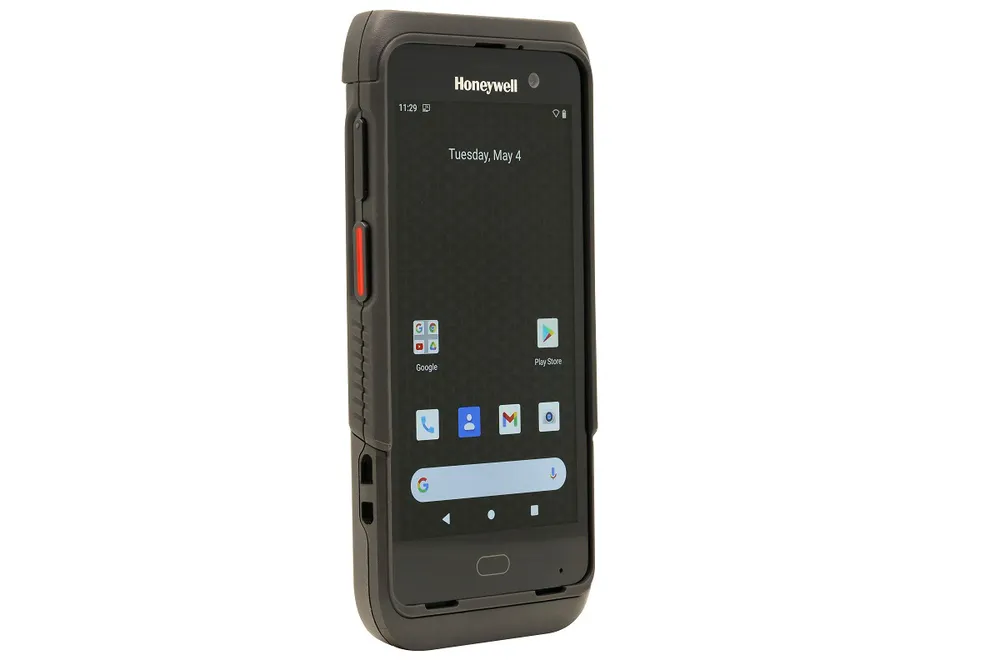

Honeywell CT45 XP / CT45 Rugged Handheld Computers
Rugged 5.0 in handheld computers on Mobility Edge — CT45 XP adds Full HD, Wi-Fi 6, FlexRange XLR scanning and warm swap; both are IP68/IP65 sealed.
- Form factor
- Handheld
- Operating system
- Android 11–14
- Display
- 12.7 cm (5.0 in)
- Scan engine
- FlexRange S0803 XLR (available on CT45XP), FlexRange Standard, and S0703
- Sealing
- IP68 / IP65
- Drop rating
- 1.8 m (6 ft)
Overview
Techcon Solution supplies, sets up and supports the Honeywell CT45 XP and CT45 in Hong Kong. Ask us for a quote for your quantity, or about a demo unit.
The CT45 family are rugged, all-purpose mobile computers for frontline workers in retail, logistics and fieldwork, used for cycle counting, on-demand delivery and asset management. Built on the Mobility Edge platform, they carry 4G-LTE for work outside the four walls and are designed to survive drops, rain and dusty warehouses.
The family has two models. Where the datasheet states a difference:
- CT45 XP — Full High Definition (1920 x 1080) display; 6 GB RAM, 64 GB Flash; glove, stylus and rain modes; FlexRange S0803 XLR scan engine option; Wi-Fi 6 (CT45P-X0N); battery warm swap; 2nd BLE for Device Finder; eSIM + Nano SIM or 2 Nano SIMs.
- CT45 — High-Definition (1280 x 720) display; 4 GB RAM, 64 GB Flash; IEEE 802.11 a/b/g/n/ac; 2 Nano SIMs.
Specifications
From the Honeywell datasheet. Download it for certifications and accessories.
Physical Characteristics
| Dimensions | 163 mm x 79 mm x 19.2 mm |
|---|---|
| Weight | 282 g (9.9oz) with battery pack |
| Display | 12.7 cm (5.0 in); CT45 XP — Full High Definition (1920 x 1080); CT45 — High-Definition (1280 x 720); LED backlight; Gorilla Glass 5 |
| Touch Panel | Rugged multi-touch capacitive touch panel, optically-bonded; glove, stylus and rain modes supported (CT45 XP) |
| Hard Keys | Volume up/down key, left/right scan, power button, Push to Talk button |
| Battery | Li-Ion, 3.85 V, 4020 mAh; smart battery with integrated diagnostic tools; battery warm swap available on CT45 XP |
| Charging | Quick Charge 3.0 compliant; Less than 3 hours to be fully charged |
Performance Characteristics
| Processor | Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz |
|---|---|
| Operating System | Each Android version planned from Android 11 to Android 14 and planned support for Android 16, pending feasibility |
| Memory | CT45 XP — 6 GB DDR4x RAM, 64 GB UFS Flash; CT45 — 4 GB DDR4x RAM, 64 GB UFS Flash |
| Storage Expansion | User-accessible microSD card up to 512 GB (SDXC/SDHC/SDIO-compliant) |
Data Capture
| Scan Engine | FlexRange S0803 XLR (available on CT45XP), FlexRange Standard, and S0703 |
|---|---|
| Camera | 13-megapixel rear camera; 8-megapixel front-facing camera |
Wireless
| WWAN | LTE Advanced Support; Up to 390 Mbps CAT13 LTE downlink; Up to 75 Mbps CAT5 LTE uplink; LTE – Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 66, 71; UMTS/HSPA+ (3G) – Bands 1, 2, 4, 5, 6, 8, 9, 19; GSM — 850, 900, 1800, 1900 (Quad Bands) |
|---|---|
| SIM | CT45 XP — eSIM and Nano SIM or 2 Nano SIMs; CT45 — 2 Nano SIMs |
| WLAN | CT45P-X0N — IEEE 802.11 a/b/g/n/ac/ax and 2*2 MU-MIMO; CT45P-L1N, CT45-L1N, CT45-L0N — IEEE 802.11 a/b/g/n/ac |
| WPAN | V5.1 Bluetooth and BLE; 2nd BLE available on CT45 XP |
| NFC | Integrated NFC reader |
| GPS | GPS, GLONASS, Galileo, and Beidou, Assisted GPS |
User Environment
| Operating Temp. | -20°C to +50°C (-4°F to +122°F) |
|---|---|
| Storage Temp. | -30°C to +70°C (-22°F to +158°F) |
| Humidity | 5% to 95% (non-condensing) |
| Drop Specification | Multiple 1.8 m (6 ft) drops to concrete at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H; multiple 2.4 m (8 ft) drops to concrete with protective boot at -20°C to +50°C (-4°F to +122°F) per MIL-STD-810H |
| Tumble | Exceeds 1,500 times at 1m (3.28 ft) per IEC 60068-2-32 specification |
| Environmental Sealing | Independently certified to meet IP68 and IP65 standards for moisture and particle intrusion |
| ESD | ±8 kV direct; ±15 kV air |
