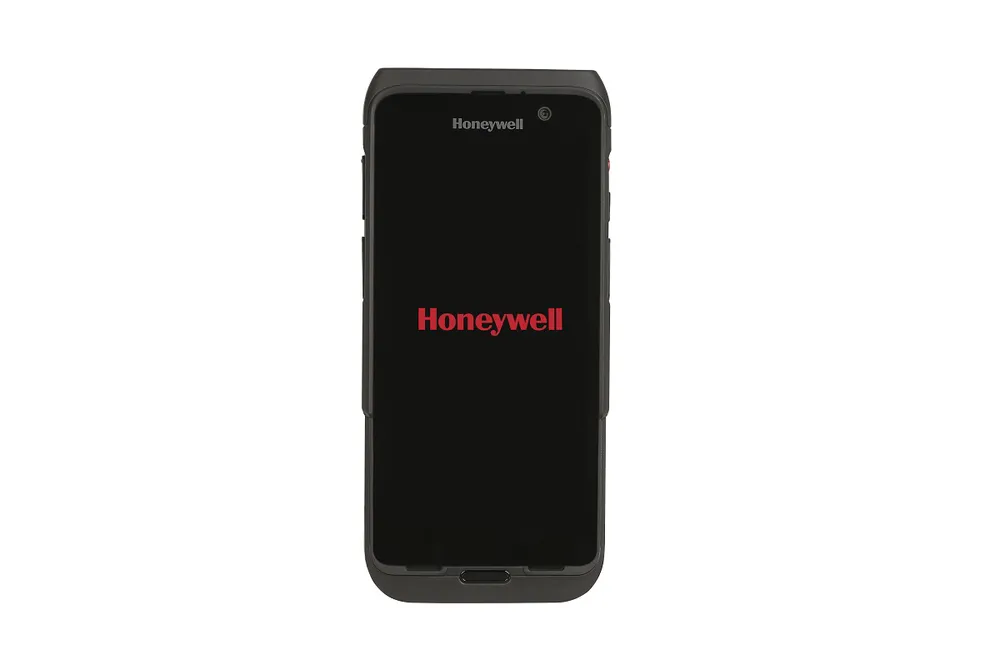

Honeywell CT47 Handheld Mobile Computer
Ultra-rugged 5G handheld computer with a 5.5 in Full HD display, Wi-Fi 6E, FlexRange XLR scanning up to 24 m (80 ft) and IP65/IP68 sealing.
- Form factor
- Handheld
- Operating system
- Android 12–16
- Display
- 13.97 cm (5.5 in)
- Scan engine
- Honeywell FlexRange™ XLR, Honeywell FlexRange S0803, Honeywell S0703 (1D/2D barcode symbologies)
- Sealing
- IP65 / IP68
- Drop rating
- 3.0m (10ft)
Overview
Techcon Solution supplies, sets up and supports the Honeywell CT47 in Hong Kong. Ask us for a quote for your quantity, or about a demo unit.
The CT47 is an ultra-rugged, all-purpose handheld mobile computer on the Mobility Edge platform, providing 5G data connectivity and communications for frontline workers. It combines 5G and Wi-Fi 6E (including CBRS and private networks), a FlexRange XLR scan engine that reads from 8 cm (3 in) to 24 m (80 ft), and fingerprint and facial-recognition authentication.
It is built for transport & logistics, warehouse and fieldwork, withstanding up to 8 ft drops and over 3,500 tumbles. Standard, wireless and extended batteries keep it running through demanding shifts.
Specifications
From the Honeywell datasheet. Download it for certifications and accessories.
Physical Characteristics
| Dimensions | 170 mm x 79 mm x 19.2 mm (6.69 in x 3.11 in x 0.75 in) with standard battery pack; 170 mm x 79 mm x 22.6 mm (6.69 in x 3.11 in x 0.89 in) with extended battery pack |
|---|---|
| Weight | 314g (11.1oz) with standard battery pack; 358g (12.6oz) with extended battery pack |
| Display | 13.97 cm (5.5 in); Full High-Definition (2160 x 1080); LED backlight; Gorilla Glass 5 |
| Touch Panel | Rugged multi-touch capacitive touch panel, Glove, stylus and rain modes supported |
| Hard Keys | Volume up/down key, left/right scan, power button, Push to Talk button |
| Battery | 4775mAh standard battery, 4680mAh wireless battery, 7692mAh extended battery; Battery Warm Swap |
| Charging | Quick Charge 3.0 compliant |
Performance Characteristics
| Processor | Qualcomm QCS6490/QCM6490 octa-core, 2.7GHz |
|---|---|
| Operating System | Each Android version planned from Android 12 to 16 |
| Memory | 8GB DDR4x RAM, 128GB UFS Flash |
| Storage Expansion | User-accessible microSD card up to 2 TB (SDXC/SDHC/SDIO-compliant) |
Data Capture
| Scan Engine | Honeywell FlexRange™ XLR, Honeywell FlexRange S0803, Honeywell S0703 (1D/2D barcode symbologies) |
|---|---|
| Camera | 13-megapixel rear camera, 8-megapixel front-facing camera |
Wireless
| WWAN | 5G FR1 — Bands 1, 2, 3, 5, 7, 8, 12, 14, 20, 25, 28, 30, 38, 40, 41, 48, 66, 71, 77, 78, 79; LTE — Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 38, 39, 40, 41, 42, 43, 48, 66, 71; UMTS/HSPA+ (3G) — Bands 1, 2, 4, 5, 6, 8, 19; GSM — 850, 900, 1800, 1900 (Quad Bands) |
|---|---|
| SIM | 1 eSIM and 1 nano SIM |
| WLAN | Wi-Fi certified; Wi-Fi 6E certified; IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax, 2x2 MU-MIMO |
| WPAN | V5.2 Bluetooth and BLE; 2nd BLE available on all SKUs |
| NFC | Integrated NFC reader; contactless payment support |
| GPS | GPS, GLONASS, Galileo, Beidou, NAVIC, QZSS |
User Environment
| Operating Temp. | -20°C to 50°C (-4°F to 122°F) |
|---|---|
| Storage Temp. | -30°C to 70°C (-22°F to 158°F) |
| Humidity | 5% to 95% (non-condensing) |
| Drop Specification | Multiple 3.0m (10ft) to concrete at room temperature per MIL-STD 810H booted; 2.4m (8 ft) to concrete at -20°C to 50°C per MIL-STD 810H booted; 2.4m (8ft) to concrete at room temperature per MIL-STD 810H; 1.8m (6ft) to concrete at -20°C to 50°C per MIL-STD 810H |
| Tumble | Exceeds 3500 0.5 m (1.64 ft) tumbles and 2000 1.0m (3.28 ft) tumbles per IEC 60068-2-32 specification |
| Environmental Sealing | Independently certified to meet IP65 and IP68 standards for moisture and particle intrusion |
| ESD | ±15 kV Air and ±8 kV Direct |
| Hazardous Locations | US/Canada Class 1 Div 2, Groups A, B, C, and D; ATEX and IEC Ex ratings |
Other mobile computers
-

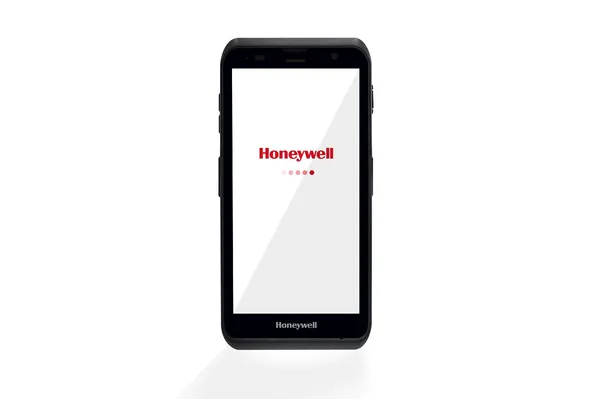

Honeywell ScanPal EDA52 Handheld Computer
Slim enterprise handheld computer with a 5.5-inch Gorilla Glass touchscreen, Honeywell S0703 scan engine, 4G LTE with nano SIM plus eSIM, and IP67 sealing.
-

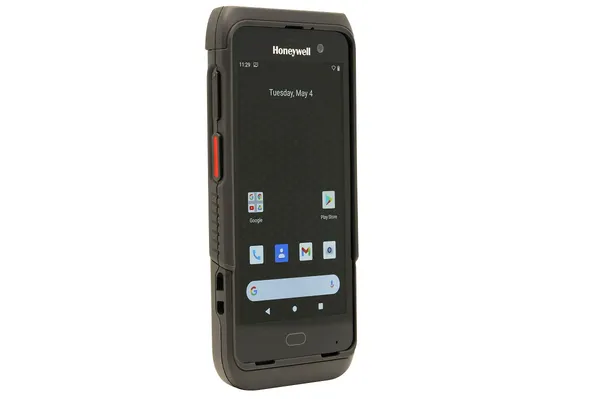

Honeywell CT45 XP / CT45 Rugged Handheld Computers
Rugged 5.0 in handheld computers on Mobility Edge — CT45 XP adds Full HD, Wi-Fi 6, FlexRange XLR scanning and warm swap; both are IP68/IP65 sealed.
-

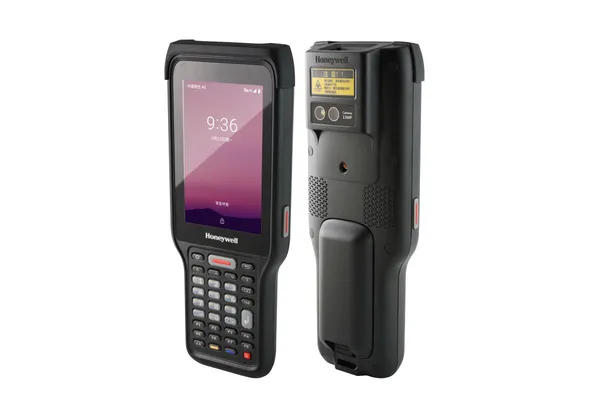

Honeywell ScanPal EDA61K Handheld Computer
