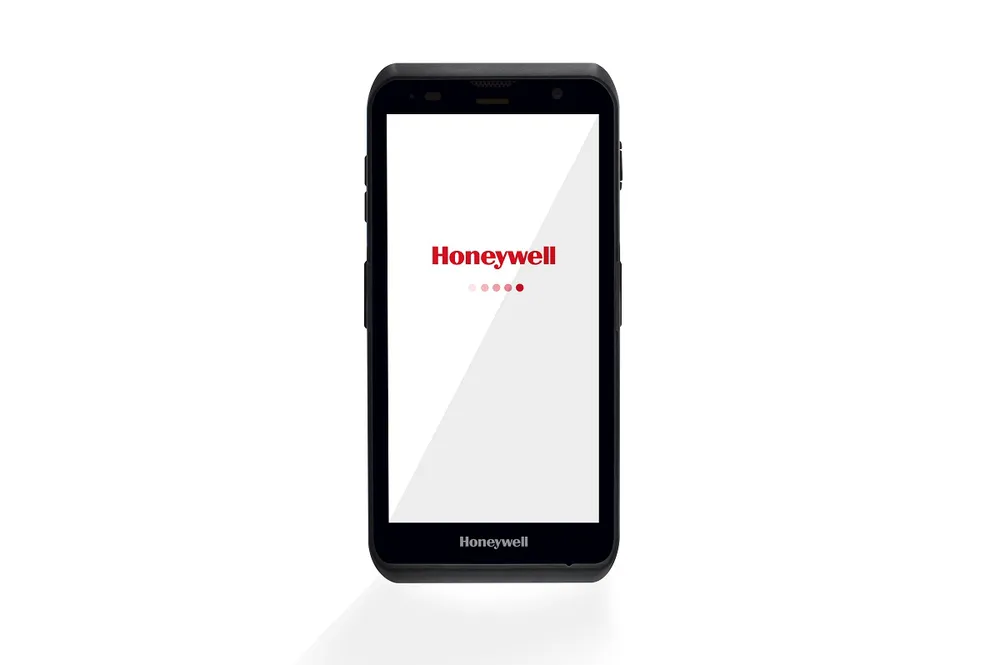

Honeywell ScanPal EDA52 Handheld Computer

Slim enterprise handheld computer with a 5.5-inch Gorilla Glass touchscreen, Honeywell S0703 scan engine, 4G LTE with nano SIM plus eSIM, and IP67 sealing.

Form factor
Handheld
Operating system
Android 11
Display
5.5-inch
Scan engine
Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
Sealing
IP67
Drop rating
1.3m (4.3ft)
Ask about this model WhatsApp us
Download the datasheetPDF, 85 KB

Overview

Techcon Solution supplies, sets up and supports the Honeywell ScanPal EDA52 in Hong Kong. Ask us for a quote for your quantity, or about a demo unit.

The ScanPal EDA52 is an enterprise-class mobile computer that connects frontline workers to back-end business systems. It pairs a Qualcomm Snapdragon octa-core 2.0GHz processor with NFC, Wi-Fi 5, Bluetooth 5.1 and 4G LTE, and its lightweight, slim body can be used with one hand and carried in a pocket.

It is designed for retail, transportation & logistics, manufacturing, healthcare and public service applications. The specifications below are for the 2 PIN model; Honeywell also lists a 6 PIN model with a 6 pin bottom connection, 4 GB RAM/64 GB Flash and a Universal Cup compatible with CT4X universal docks.

Specifications

From the Honeywell datasheet. Download it for certifications and accessories.

Physical Characteristics
Dimensions 159mm x 75 mm x 14.4 mm (6.26 in x 2.95 in x 0.57 in)
Weight 258g
Display 5.5-inch; 1440 x 720 High Definition; LED backlight; Gorilla Glass 5
Touchscreen Multi-touch capacitive (CTP), GFF
Hard Keys 5 side keys for volume up/down, right and left scan keys and power on/off
Interface Ports 2 pin bottom connection
Battery Li-Ion, 3.8 V, 4,500 mAh, removable
Charging Time less than 3.5 hours

Performance Characteristics
Processor Qualcomm Snapdragon SM6115, Quad high-performance Kryo cores 2.0 GHz +Quad low-power Kryo cores 1.8 GHz
Operating System Android 11, and upgradeable to Android 13 (pending confirmation from Qualcomm & Google)
Memory 3 GB RAM/32 GB Flash; 4 GB RAM/64 GB Flash; 6 GB RAM/128 GB Flash
Storage Expansion MicroSD (up to 128 GB)

Data Capture
Scan Engine Honeywell S0703 Slim Imager (1D/2D barcode symbologies); Non-imager version (optional)
Camera Rear 13-megapixel color camera; front 5-megapixel color camera

Wireless
WWAN FDD-LTE — Bands 1, 2, 3, 4, 5, 7, 8, 9, 12,13,17,19,20,25,26,28,30,66; TDD-LTE — Bands 38, 39, 40, 41; GSM/EDGE — Bands 2, 3, 5, 8; UMTS/HSPA+ — Bands 1, 2, 4, 5, 6, 8, 9, 19
SIM one nano SIM plus one eSIM (WWAN version)
WLAN IEEE 802.11 a/b/g/n/ac (Wi-Fi Alliance certified); 1X1 MU-MIMO
WPAN Bluetooth Class 5.1
NFC Integrated Near Field Communication
GPS GPS, GLONASS and BeiDou (WWAN only)

User Environment
Operating Temp. -20°C to +50°C (-4°F to +122°F)
Storage Temp. -30°C to +70°C (-22°F to 158°F)
Humidity 5% to 90% (non-condensing)
Drop Specification Multiple 1.3m (4.3ft) per MIL-STD 810G drops to concrete at room temperature; Multiple 1.5m (5ft) per MIL-STD 810G drops with rubber boot concrete at room temperature
Tumble 550 times at 0.5 m (1.64 ft)
Environmental Sealing IP67
ESD ±8 kV direct; ±15 kV air
