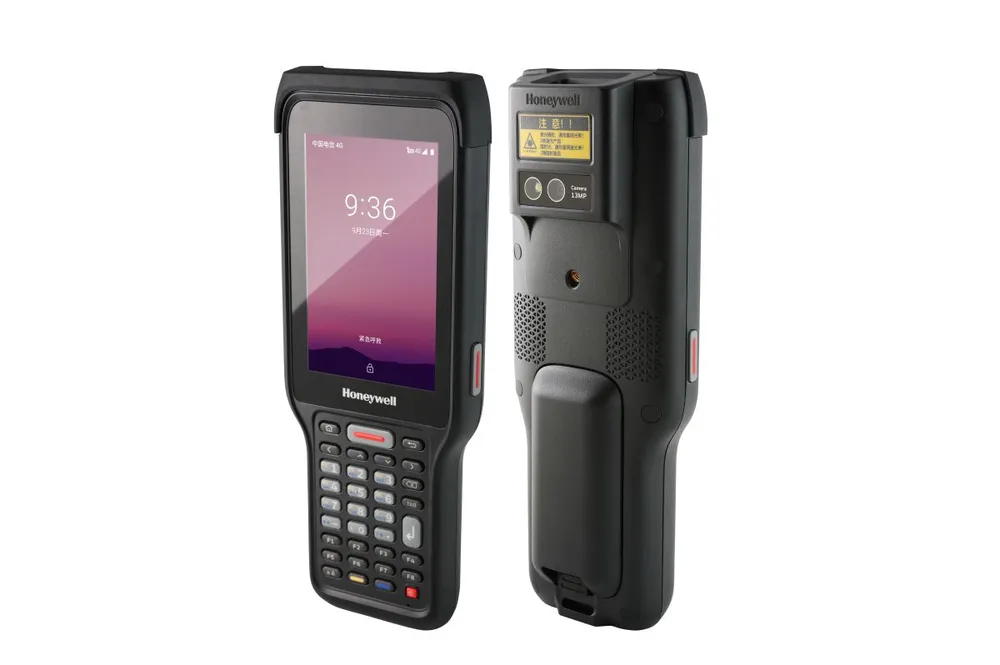

Honeywell ScanPal EDA61K Handheld Computer
Rugged handheld computer with a physical keyboard (34-key numeric or 47-key alpha-numeric), 4-inch touchscreen, 7,000 mAh battery and scanning up to 15 m.
- Form factor
- With keyboard
- Operating system
- Android 9
- Display
- 4 inch
- Scan engine
- EX20, N6703SR
- Sealing
- IP65
- Drop rating
- 1.5 m (5 ft)
Overview
Techcon Solution supplies, sets up and supports the Honeywell ScanPal EDA61K in Hong Kong. Ask us for a quote for your quantity, or about a demo unit.
The ScanPal EDA61K is a rugged, keyed mobile computer that helps small and medium businesses automate and error-proof workflows. It is used in light-duty indoor or outdoor warehouses, distribution centers and retail backrooms, with a battery that lasts two to three shifts and a lightweight, balanced design.
It comes with 34-key numeric or 47-key alpha-numeric keypad options plus a 4-inch touchscreen, and a choice of scan engines that read from a few centimeters to up to 15 meters (49.2 feet). 4G LTE cellular support is available in many countries.
Specifications
From the Honeywell datasheet. Download it for certifications and accessories.
Physical Characteristics
| Dimensions | 206 mm x 78 mm x 41.9 mm (8.1 in x 3.1 in x 1.6 in) |
|---|---|
| Weight | N6703 version — 435 g (15.3 oz); EX20 version — 460 g (16.2 oz) |
| Display | 4 inch; LED backlight |
| Touch Screen | Multi-touch capacitive |
| Keyboard | 34-key numeric or 47-key alpha-numeric keypad options |
| Hard Keys | Volume up/down, left/right scan, power, reset |
| Battery | Li-Ion, 3.6V, 7,000 mAh |
| Battery Runtime | 25 hours (test profile — scan once every 9 seconds; display at 50% brightness; turn off keypad backlight and activate Wi-Fi only) |
| Charging Time | 5.5 hours |
Performance Characteristics
| Processor | Qualcomm SDM450 1.8 GHz octa-core |
|---|---|
| Operating System | Android 9 |
| Memory | 3 GB RAM, 32 GB Flash |
| Storage Expansion | microSDHC (up to 128 GB) |
Data Capture
| Scan Engine | EX20, N6703SR |
|---|---|
| Camera | 13.0-megapixel color camera with autofocus and LED flash (N6703 version only) |
Wireless
| WWAN | FDD-LTE — Band1/Band2/Band3/Band4/Band5/Band7/Band8/Band9/Band12/Band13/Band17/Band19/Band20/Band25/Band26/Band28/Band30; TDD-LTE — Band38/Band39/Band40/Band41; GSM&EDGE — Band2/Band3/Band5/Band8; WCDMA — Band1/Band2/Band4/Band5/Band6/Band8/Band9/Band19; CDMA — BC0/BC1/BC6 |
|---|---|
| WLAN | IEEE 802.11 a/b/g/n/r/ac radio |
| WPAN | Bluetooth Class 4.2 |
| GPS | Integrated GPS |
User Environment
| Operating Temp. | -20°C to +50°C (-4°F to +122°F) |
|---|---|
| Storage Temp. | -30°C to +70°C (-22°F to +158°F) |
| Humidity | 10% to 90% (non-condensing) |
| Drop Specification | Multiple 1.5 m (5 ft) drops to concrete at room temperature |
| Tumble | 1,000 tumbles at 1 m (3.3 ft) |
| Environmental Sealing | IP65 |
| ESD | ±8 kV direct; ±12 kV air |
