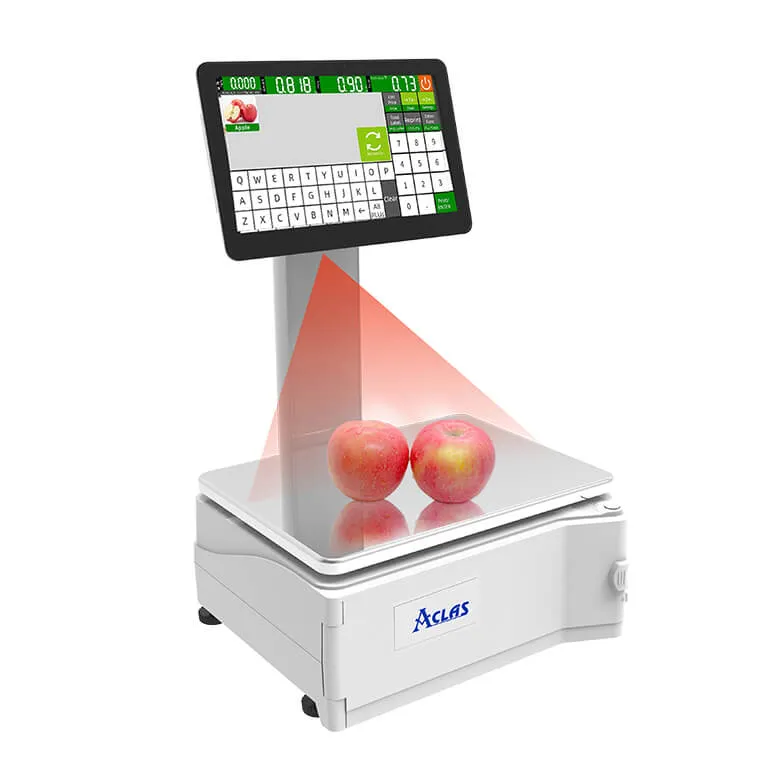

Aclas iS5X AI Label Scale
AI image recognition label scale for fruit and vegetables, with an 11.6″ capacitive touch screen, 120mm/s printer for label, linerless and receipt paper, and Ethernet, RS232 and USB.
- Type
- AI recognition
- Capacity
- 6kg/15kg; 15kg/30kg
- Max print speed
- 120mm/s
- Connectivity
- Ethernet*1, RS232*1, USB*1
Overview
Techcon Solution supplies, installs and supports the Aclas iS5X in Hong Kong. Ask us for a quote, or about a demo unit.
The Aclas iS5X is a label scale with AI visual recognition for fruit and vegetable products. Staff place the item on the scale, the scale suggests what it is, and they print the label without memorising LFCodes.
Aclas states a 99% accuracy rate (96% for bag-packed items) and a 0.1s recognition speed. The display shows 1~3 photos of the recognition result to choose from, and staff can also search by the first letter or LFCode.
What Aclas highlights
- Hands-free printing: tap the scale platter or press a shortcut key once the item is recognised.
- One printer module for label with backing paper, linerless label paper or receipt paper.
- Can transfer the weight or recognition result to a POS or cash register for checkout.
- Links to Aclas electronic shelf labels (ESL), so a price change on the scale is synchronised to the ESL.
- Patented quick-plug display: loosen two bolts to change it; the whole process takes 30 seconds.
- Waterproof capacitive touch screen for wet-hand operation, with an adjustable display angle.
- Managed with Aclas LINK69 scale management software; WAN support for PLU and sales data exchange between branches.
Specifications
From the Aclas datasheet. Download it for certifications and accessories.
Display and System
| Operator display | 11.6″ capacitive touch screen, resolution: 1366*768 |
|---|---|
| Touch screen type | Capacitive touch screen |
| OS | Ubuntu |
| CPU | Intel Z3735, quad-core, up to 1.83GHz |
| Memory | 2GB RAM |
| Storage | 32GB EMMC |
Weighing
| Range | 6kg/15kg; 15kg/30kg |
|---|---|
| Division value | 2g/5g; 5g/10g |
Printer
| Paper type | Thermal label paper, paper width 62mm, Φ105mm |
|---|---|
| Print width | 56mm |
| Printer type | Single printer |
| Print speed | 120mm/s |
| Barcode type | EAN 8, EAN 13, EAN 128, 2/5 interleaved, Gs1, QR code, Silicon sense QR code, etc. |
| PLU type | Hotkey number, LFCode, PLU name, item number, unit price, pricing unit, first label, second label, tare, barcode, department, group, package date, package time, preservation date, weight, package type (normal, fixed weight, fixed price, both fixed weight and price), nutrition message, traceability code, additional information 1, additional information 2, discount |
Connectivity and Power
| COMM type | Ethernet*1, RS232*1, USB*1 |
|---|---|
| Power | AC 100～240V 50～60Hz; DC 13.8V 3.2A |
Environment
| Working temperature | 0℃～40℃ |
|---|---|
| Working humidity | 5%～85%R.H. |
Other smart weighing scales
-
Aclas LS5RX Label Printing Scale
LS5X-series label printing scale with a 120mm/s cassette label printer, 6kg/15kg or 15kg/30kg ranges, an insect-proof design and Ethernet, RS-232 and USB.
-
Aclas PS1X Price Computing Scale
Battery-powered price computing scale with a 3-line LCD, five-customer accumulation, 6kg/15kg or 15kg/30kg ranges and an RS232 port on the PS1C and PS1D.
-

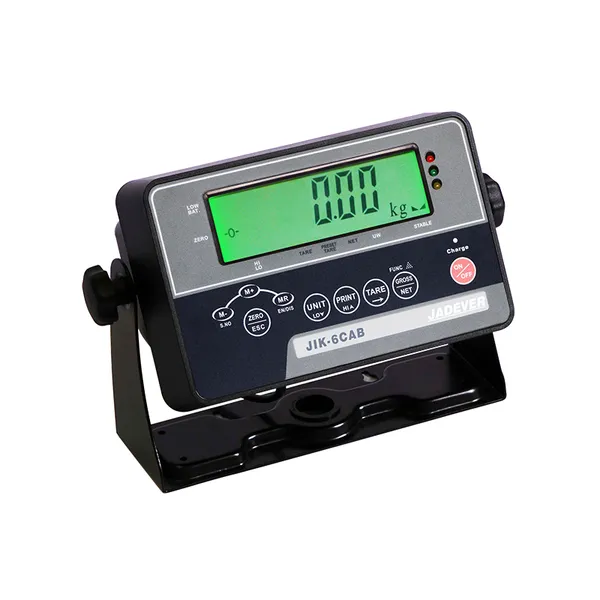

Jadever JIK-6CAB / JIK-6CSB
Digital platform weighing scale indicators for applications requiring multiple functions, rugged construction, and comprehensive connectivity options.
Want to try the iS5X AI Label Scale?
We can bring a demo unit to your site, check it against your systems and quote for the number you need.
