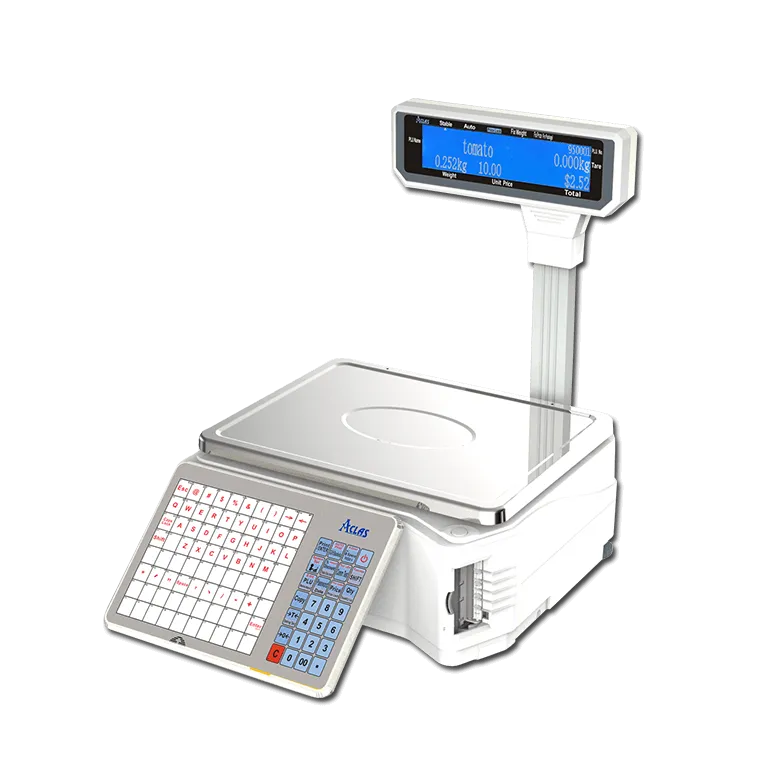

Aclas LS5RX Label Printing Scale
LS5X-series label printing scale with a 120mm/s cassette label printer, 6kg/15kg or 15kg/30kg ranges, an insect-proof design and Ethernet, RS-232 and USB.
- Type
- Label printing
- Capacity
- 6kg/15kg; 15kg/30kg
- Max print speed
- 120mm/s
- Connectivity
- RJ45*1 (Ethernet), RS-232*1, USB
Overview
Techcon Solution supplies, installs and supports the Aclas LS5RX in Hong Kong. Ask us for a quote, or about a demo unit.
The Aclas LS5RX is a label printing scale from the LS5X series. It weighs, prices and prints a barcode label, and Aclas lists it under barcode printing scales and butcher scales with printer.
Its patented insect-proof design keeps bugs out of the machine, which Aclas describes as ideal for fresh food and seafood departments. The hot keypad lifts so a PLU sheet can go underneath, and it is easy to clean and water-proof.
What Aclas highlights
- Full printing area, with no 5mm pre-print area, and 30mm-high labels.
- One printer module for label, linerless label and receipt paper.
- Free label format, with label sizes from 30*30mm to 60*109mm.
- Traceability, nutrition information and two-dimension (QR) code printing.
- Picture hotkeys and a “reprint” key for self-service use.
- Optional WIFI to add scales without extra cabling, for example during a promotion.
Source: Aclas LS5RX product page and the LS5X series spec sheet.
Specifications
From the Aclas datasheet. Download it for certifications and accessories.
Specifications by Model
| LS5NX | LS5PCX | LS5PRX | LS5SX | |
|---|---|---|---|---|
| Display | 65*132 LCD | 48*112 LCD | 64*384 LCD | 64*384 LCD |
| Keyboard | Hotkey 8*10; Function key 4*7 | Hotkey 8*10; Function key 4*7 | Hotkey 8*10; Function key 4*7 | 8*10 picture hotkeys |
Weighing
| Precision Class | III |
|---|---|
| Internal resolution | 1/30000 |
| Weighing range | 6kg/15kg; 15kg/30kg |
| Division value | 2g/5g; 5g/10g |
Printing
| Printer type | Cassette label printer |
|---|---|
| Printing speed | 120mm/s |
| Paper type | Thermal label paper, paper width (max) 62mm, Φ105mm |
| Valid printing width | 56mm |
| Label format | 2/5 interleaved, Code 128, EAN13 etc. Logo, uppercase and lowercase letters, self-configured label composing & size, adjustable label length ranging from 30~109mm. Advanced label format: various barcode, PLU name, additional information etc. |
| PLU format | Hotkey number, PLU name, LF code, traceability code, article number, unit price, price unit, preservation days, tare, barcode, department, package weight, package type (normal, fixed weight, fixed price, both fixed), message1, message2, label type, discount hotkey, additional text |
Connectivity and Power
| Communication interfaces | RJ45*1 (Ethernet), RS-232*1, USB |
|---|---|
| Optional function | WIFI |
| Power supply | AC 110~240V 50~60Hz |
Environment
| Working temperature | 0℃~40℃ |
|---|---|
| Working humidity | 5%~85%R.H. |
Other smart weighing scales
-
Aclas iS5X AI Label Scale
AI image recognition label scale for fruit and vegetables, with an 11.6″ capacitive touch screen, 120mm/s printer for label, linerless and receipt paper, and Ethernet, RS232 and USB.
-
Aclas PS1X Price Computing Scale
Battery-powered price computing scale with a 3-line LCD, five-customer accumulation, 6kg/15kg or 15kg/30kg ranges and an RS232 port on the PS1C and PS1D.
-
Jadever JIK-6CAB / JIK-6CSB
Digital platform weighing scale indicators for applications requiring multiple functions, rugged construction, and comprehensive connectivity options.
Want to try the LS5RX Label Printing Scale?
We can bring a demo unit to your site, check it against your systems and quote for the number you need.
