Aclas PS1X Price Computing Scale
Battery-powered price computing scale with a 3-line LCD, five-customer accumulation, 6kg/15kg or 15kg/30kg ranges and an RS232 port on the PS1C and PS1D.
- Type
- Price computing
- Capacity
- 6kg/15kg; 15kg/30kg
- Connectivity
- RS232 (some models)
Overview
Techcon Solution supplies, installs and supports the Aclas PS1X series in Hong Kong. Ask us for a quote, or about a demo unit.

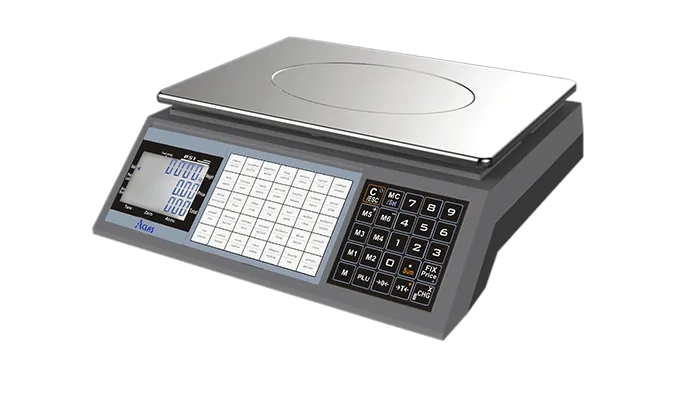

The Aclas PS1X series (shown: PS1DX) is a price computing scale for counters that sell by weight without printing labels. Its 3-line LCD shows weight, unit price and total price on the same screen.
It needs no power cable: Aclas states that 3 D alkaline batteries can drive the scale for 2 years (8 hours each day, 30 times each hour, 10 seconds each time), so the scale can be moved wherever you want.
What Aclas highlights
- Multi-customer accumulation with five accumulating keys, to serve 5 customers at the same time.
- Patented insect-proof design.
- 7 memory unit price keys; the PS1XD/PS1XF store 70 PLU.
- Price-lock function for goods sold at the same price.
- The models with a communication port (PS1XC/PS1XD) connect to a POS or ECR; an optional RS232 dongle makes the link wireless.
- Tempered glass platter, with stainless steel or plastic platter types also available.
Source: Aclas PS1X product page and the PS1X series spec sheet.
Specifications
From the Aclas datasheet. Download it for certifications and accessories.
Specifications by Model
| PS1B | PS1F | PS1C | PS1D | |
|---|---|---|---|---|
| Hotkey | No | 35*2 hotkeys | No | 35*2 hotkeys |
| Interface | No | No | RS232 | RS232 |
Weighing
| Internal Resolution | 1/30000 |
|---|---|
| Weighing Capacity (Max.) | 6kg/15kg; 15kg/30kg |
| Verification Scale Interval | 2g/5g; 5g/10g |
Power
| Power Supply | 3 PCS D batteries or 3 PCS AA batteries, depending on model |
|---|---|
| Power Consumption | soft turn off < 5μA; standby: 21μA; work status: 4.6mA; with backlight <5.5mA |
Physical
| Weight | net weight: 2 kg; gross weight: 3.5 kg |
|---|---|
| Platter Size | stainless steel platter: 330*230 |
| LCD Backlight | With backlight |
Other smart weighing scales
Want to try the PS1X Price Computing Scale?
We can bring a demo unit to your site, check it against your systems and quote for the number you need.
