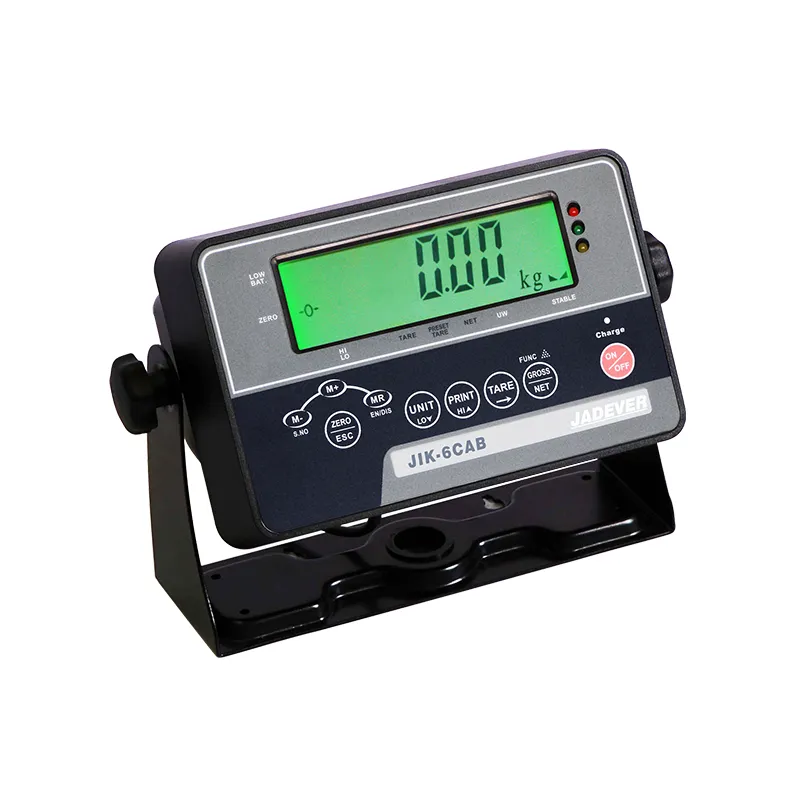

Jadever JIK-6CAB / JIK-6CSB
Digital platform weighing scale indicators for applications requiring multiple functions, rugged construction, and comprehensive connectivity options.
- Type
- Indicator
Overview
Techcon Solution supplies, installs and supports Jadever JIK-6CAB and JIK-6CSB indicators in Hong Kong. Ask us for a quote, or about a demo unit.
Jadever JIK indicators are the solution for weighing indicator applications that require multiple functions, rugged construction, comprehensive yet intuitive software, and multiple connectivity options. Both stainless steel (JIK-6CSB) and ABS (JIK-6CAB) structures are available, with an 8-key keypad.
Features
- Digital advanced weighing scale indicator functions: Zero / Tare / Weighing / Simple counting / Percent weighing / Net / Gross / Accumulation / Serial No. / Check weighing
- Easy-to-read large LCD display with green backlight
- Both stainless steel and ABS structure available
- Auto shut-off for power saving
- Options: 1x relay interface; 1x RS-232 interface; U-key connector
Specifications
From the Jadever datasheet. Download it for certifications and accessories.
Technical Specifications
| JIK-6CAB | JIK-6CSB | |
|---|---|---|
| Housing | ABS | Stainless steel |
| Resolution | 1/30000 | 1/30000 |
| Weighing Units | kg / g / lb / pcs / % | kg / g / lb / pcs / % |
| Display | 6 digits, 30mm digit height, green backlit LCD | 6 digits, 30mm digit height, green backlit LCD |
| Dimensions | 232 × 152 × 92 mm | 232 × 152 × 92 mm |
| Net / Gross Weight | 2.5 kg / 2.93 kg | 3.03 kg / 3.46 kg |
| Power Supply | 9V/1A adaptor, or 6V/3Ah rechargeable battery | 9V/1A adaptor, or 6V/3Ah rechargeable battery |
| Load Cell Excitation | DC 5V, up to 8×350 ohm load cells | DC 5V, up to 8×350 ohm load cells |
| Certification | CE, OIML | CE, OIML |
Other smart weighing scales
-

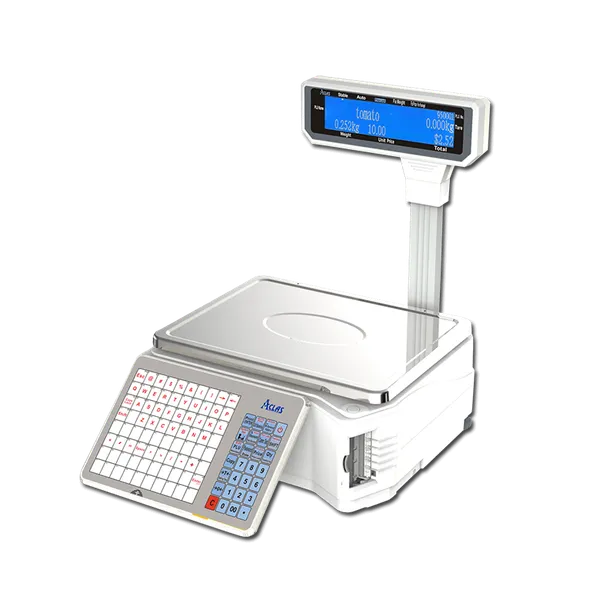

Aclas LS5RX Label Printing Scale
LS5X-series label printing scale with a 120mm/s cassette label printer, 6kg/15kg or 15kg/30kg ranges, an insect-proof design and Ethernet, RS-232 and USB.
-

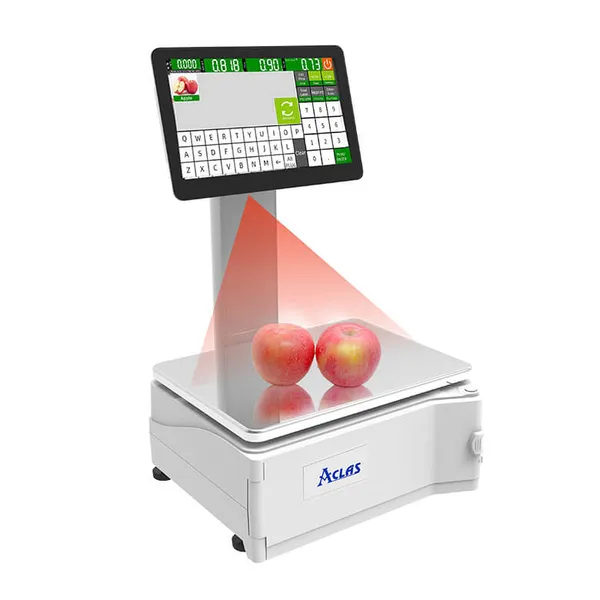

Aclas iS5X AI Label Scale
AI image recognition label scale for fruit and vegetables, with an 11.6″ capacitive touch screen, 120mm/s printer for label, linerless and receipt paper, and Ethernet, RS232 and USB.
-

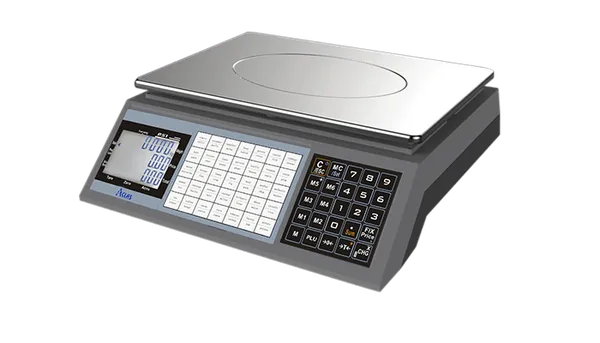

Aclas PS1X Price Computing Scale
